IP67 12mm Stainless Steel RoHS Screw Terminal Ball Copper Plating Momentary Metal Push Button Switch
- Model:
- ABS12C-Q0
IP67 12mm Stainless Steel RoHS Screw Terminal Ball Copper Plating Momentary Metal Push Button Switch
Metal Switch Features
1.With the stability of the connection performance,the use of security equipment.
2.Beautiful,high end ,fashion design
3.Medical grade imported stainless stell material,environmental is beautiful with no rust.
4.Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5.Compact design,compact size,can be used for any small equipment.
| Switching Operation | |||
| Type | Diagram | sign | Explanation |
| 1NO |  |
 |
Double breakpoint slow moving contact switch with two terminals |
| 1NO 1NC |  |
 |
Single breakpoint snap change contact switch with three terminals |
| 1NO 1NC |  |
 |
Double breakpoint snap change contact switch with four terminals |
| Switching Operation | ||||||
| Rated insulation Voltage | 250 | |||||
| Heating current Ith | Temperature does not exceed the maximum allowed current | |||||
| Rated voltage | 12V | 24V | 110V | 220V | ||
|
Rated current |
AC 50/60Hz |
Resistive load | - | - | 5A | 3A |
| Inductive load | - | - | 3A | 2A | ||
| DC | Inductive load | 5A | 5A | 1A | 0.5A | |
| Inductive load | 2A | 2A | 0.2A | 0.1A | ||
| Contact material | Silver Plated Gold | |||||
| Parameter | |
| Diameter | 12mm |
| Switch Rating | 2A/36VDC |
| Contact Configuration | 1NO/1NC |
| Operation Type | Momentary |
| The Front Shape | Ball |
| The Crust Material | Copper Plating |
| IP Degree | IP67, IK08 |
| Package | Box Size: 23*13*5.5cm 50 pieces in a box, 1 box minimum order |

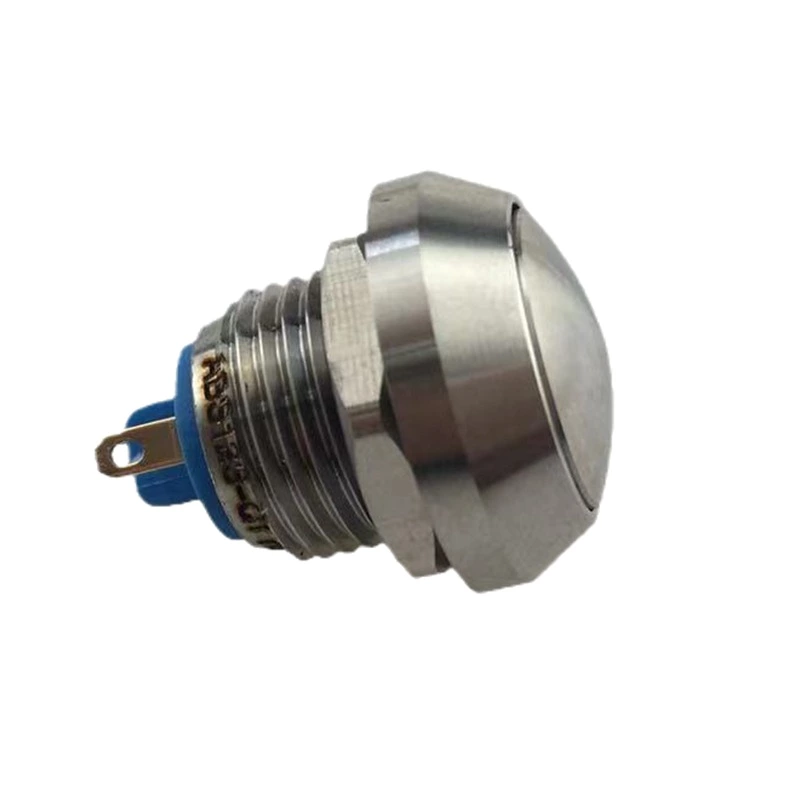

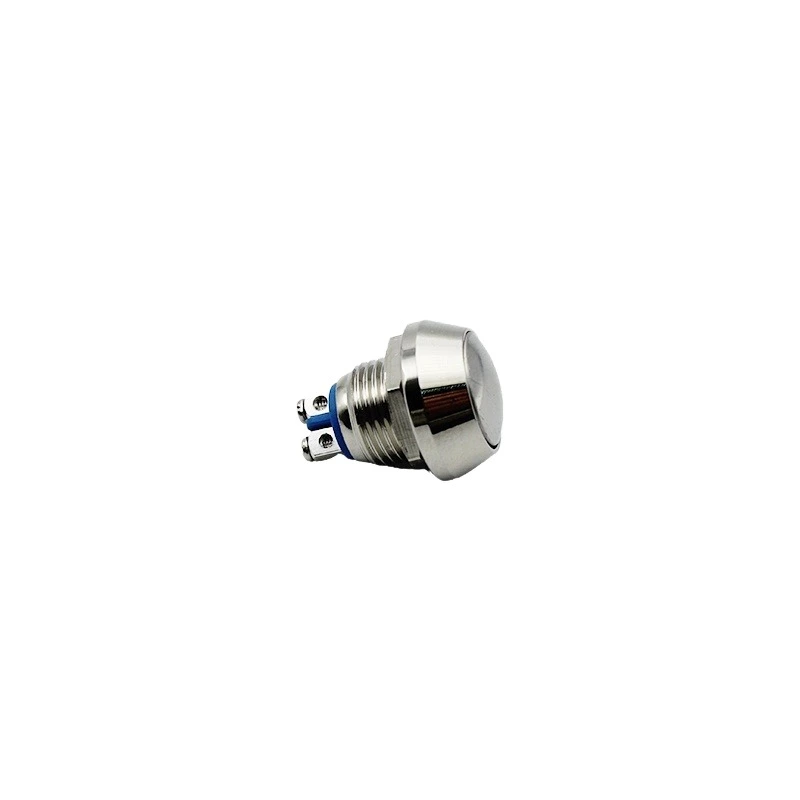

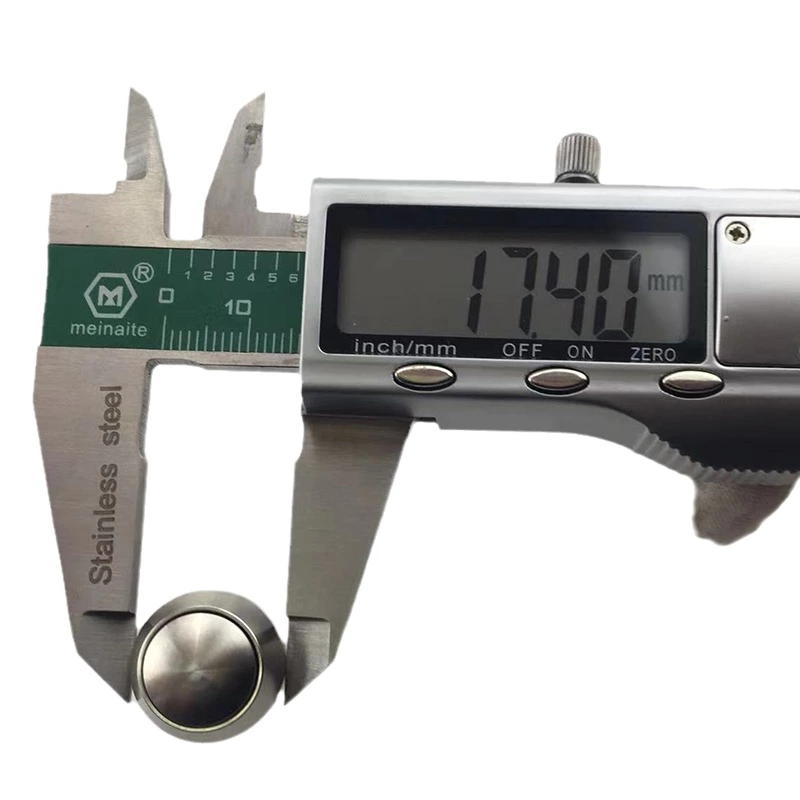

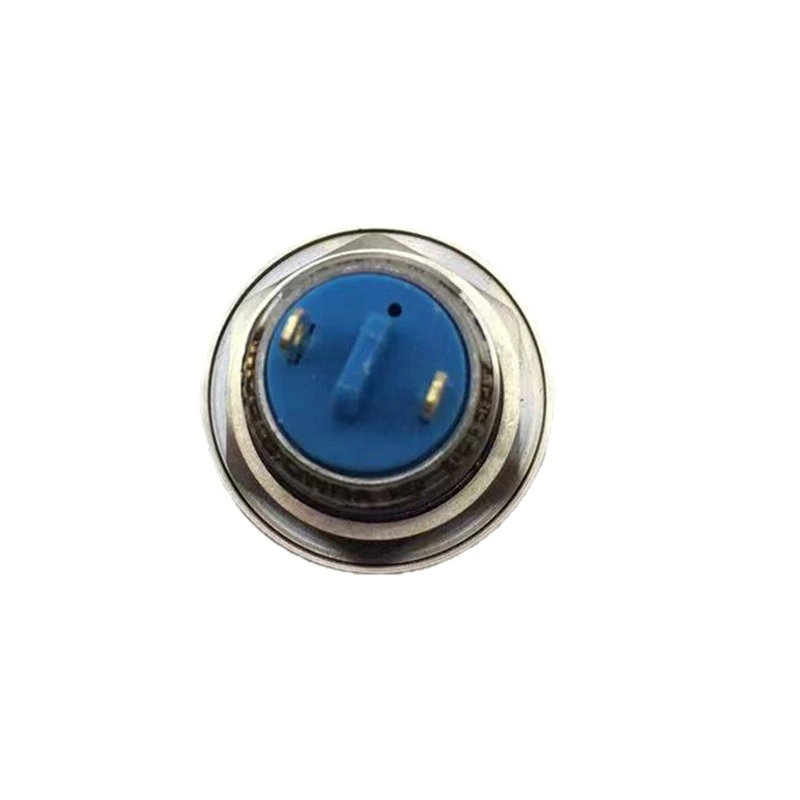

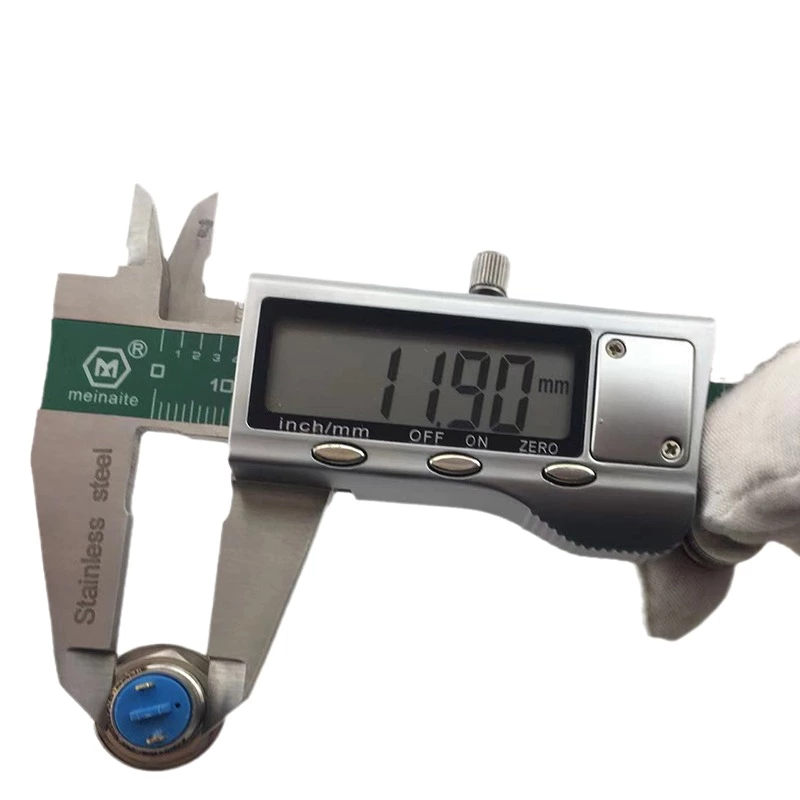

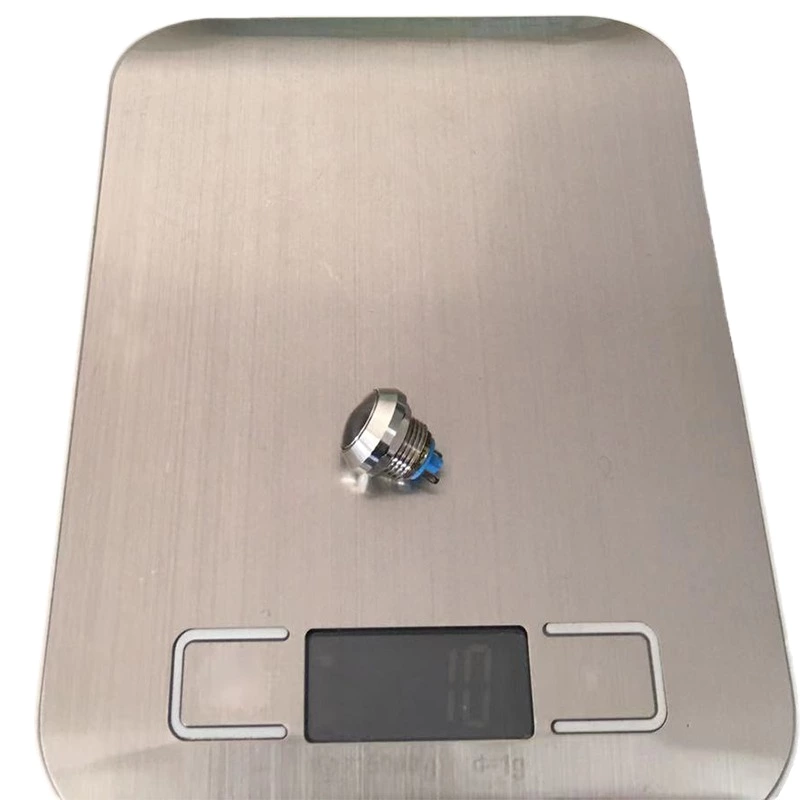

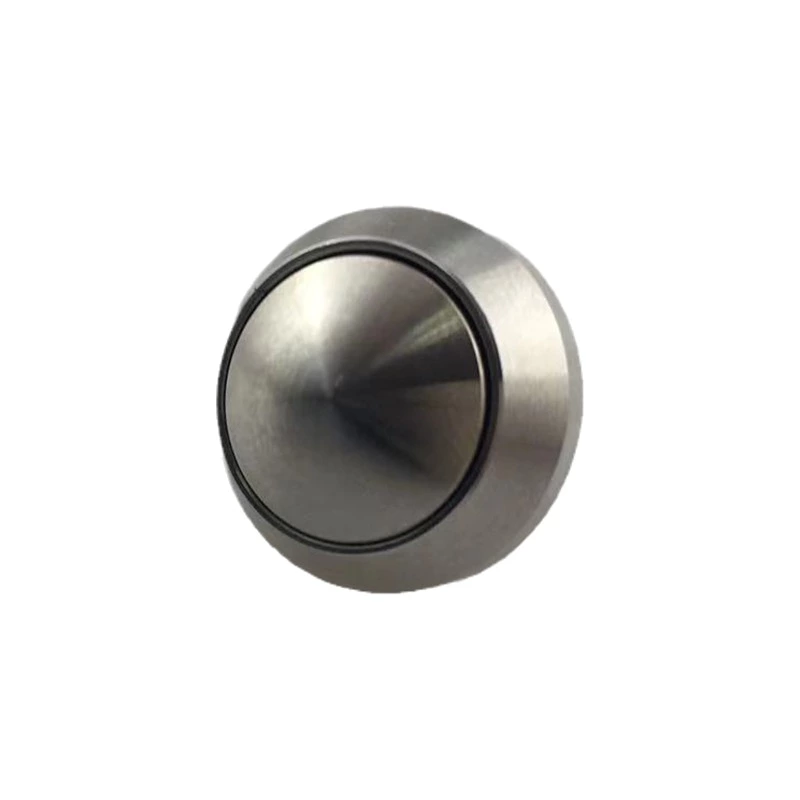

Product Display
