E40H8-500-3T-24 Autonics Encoder New And Original Incremental Rotary Hollow Type Encoder
- Model:
- E50S8-1000-3-T-24
Feature
12-24VDC power supply of line driver output(Line-up)
Suitable for measuring angle, position, revolution, speed, acceleration and distance
Power supply : 5VDC, 12-24VDC ±5%
Applications
Various tooling machinery, packing machine and general industrial machinery etc.
Specifications
| body diameter | 40mm |
| Shaft inner diameter | Ø8mm |
| Output | Totem pole outpu |
| Resolution | 500P/R |
| Output phases | A, B, Z |
| Power supply voltage | 12-24VDC ±5%(Ripple P-P: Max.5%) |

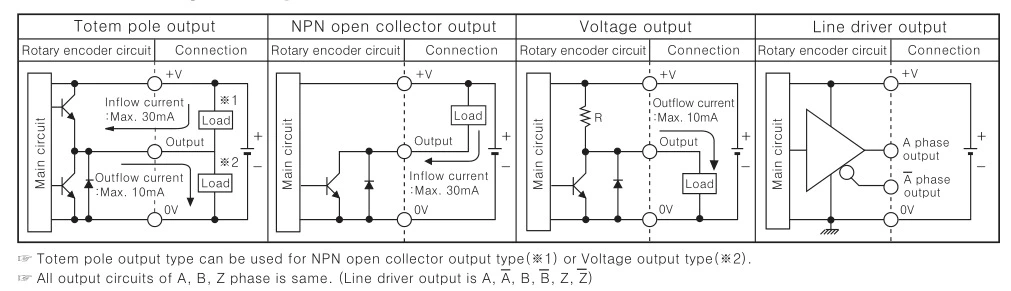

Control output diagram

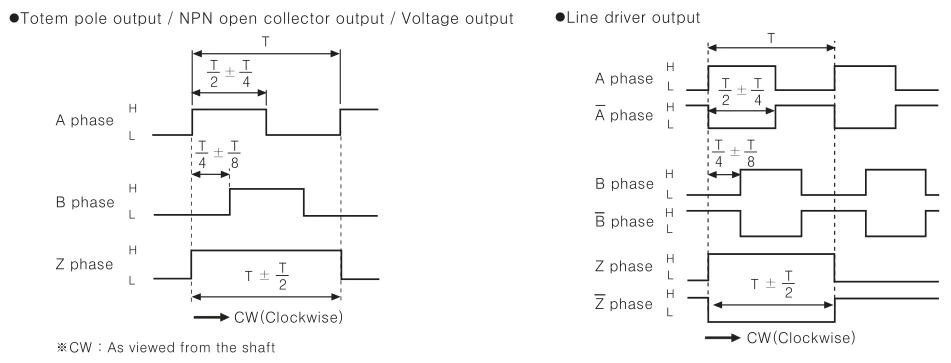

Output waveform

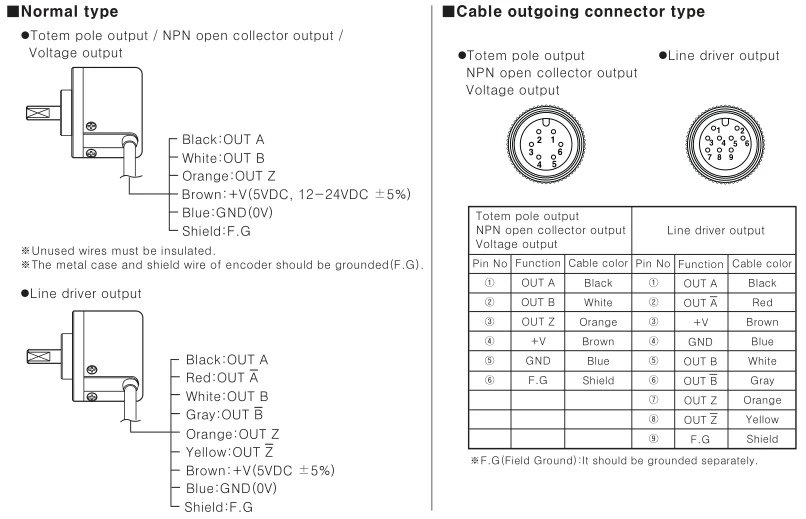

Connections

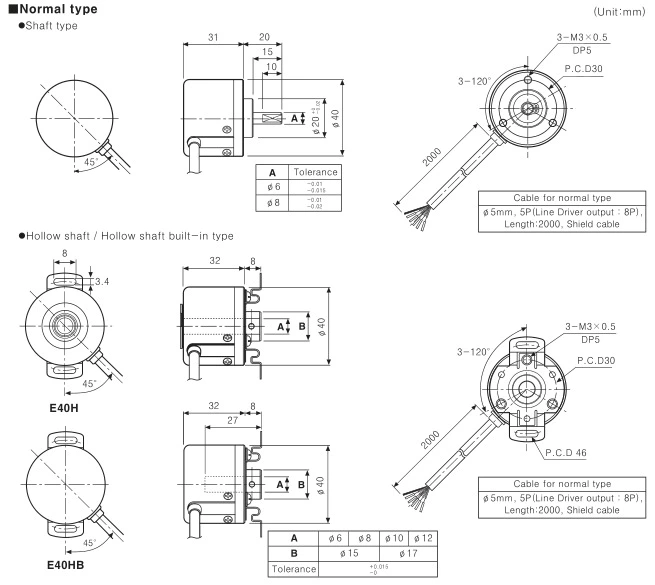

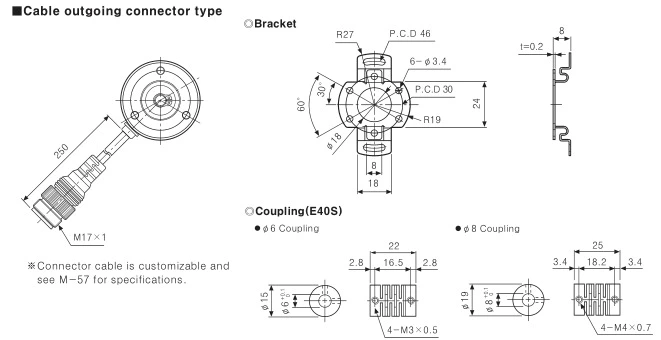

Dimensions

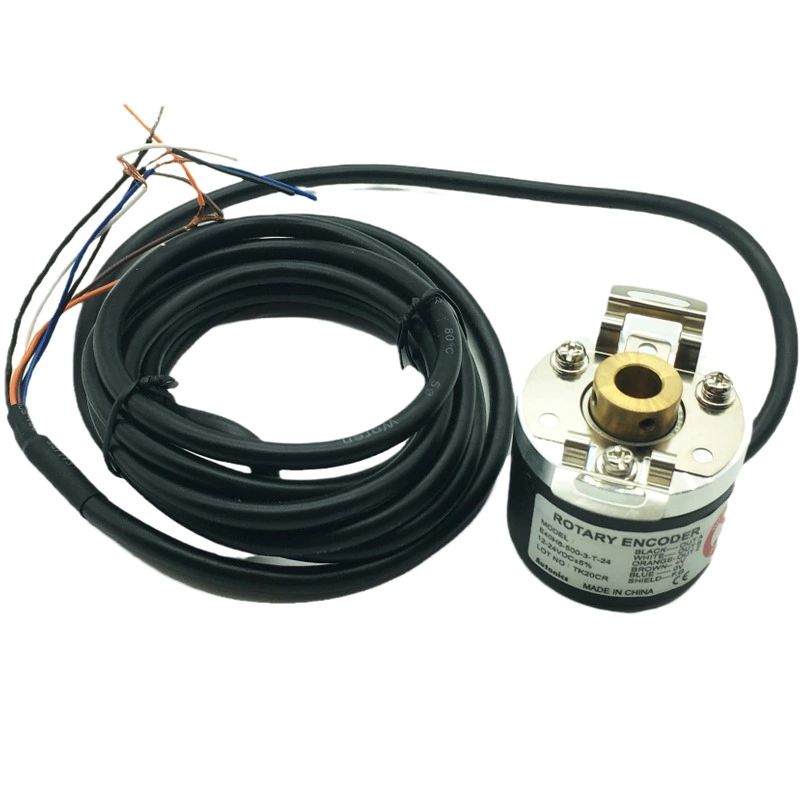

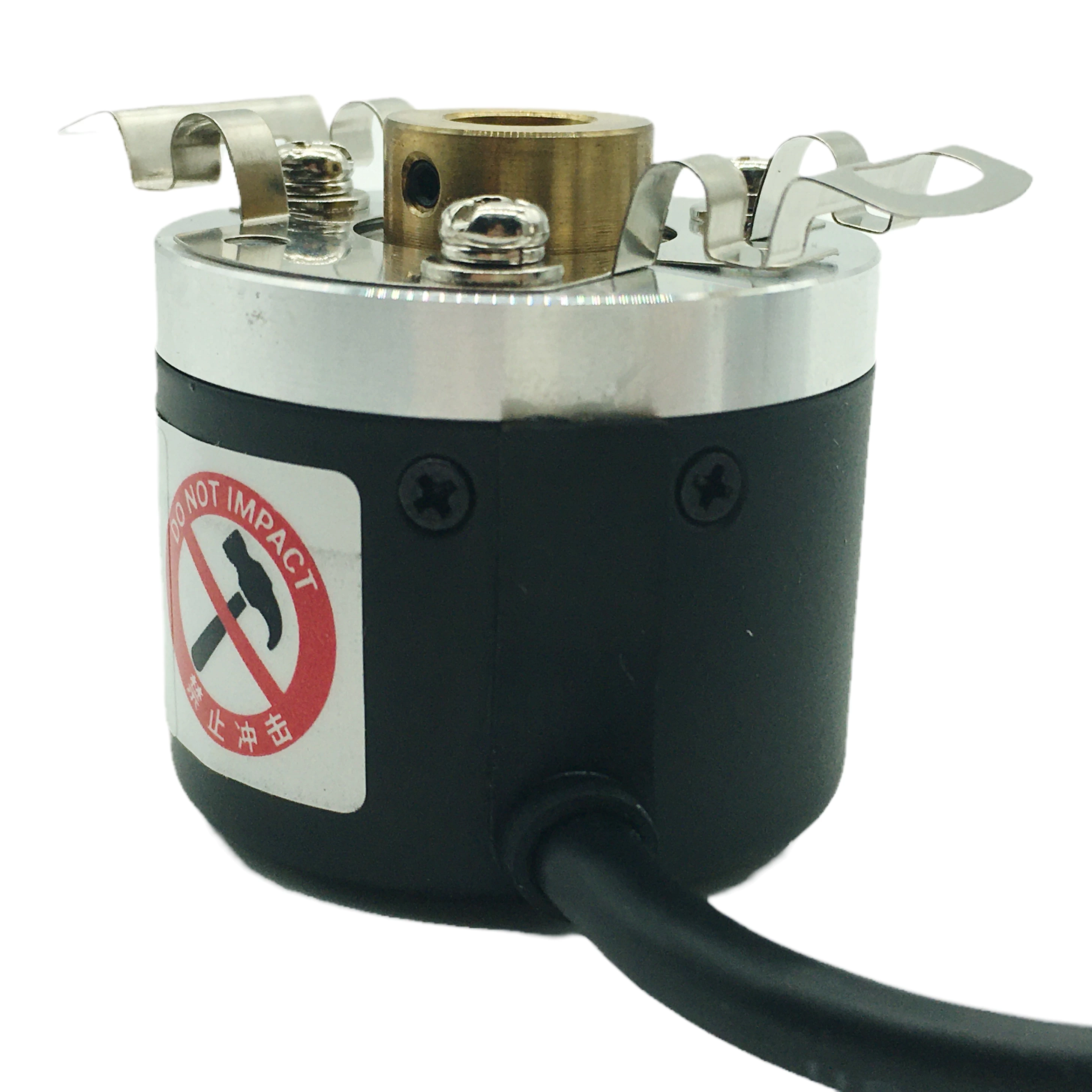

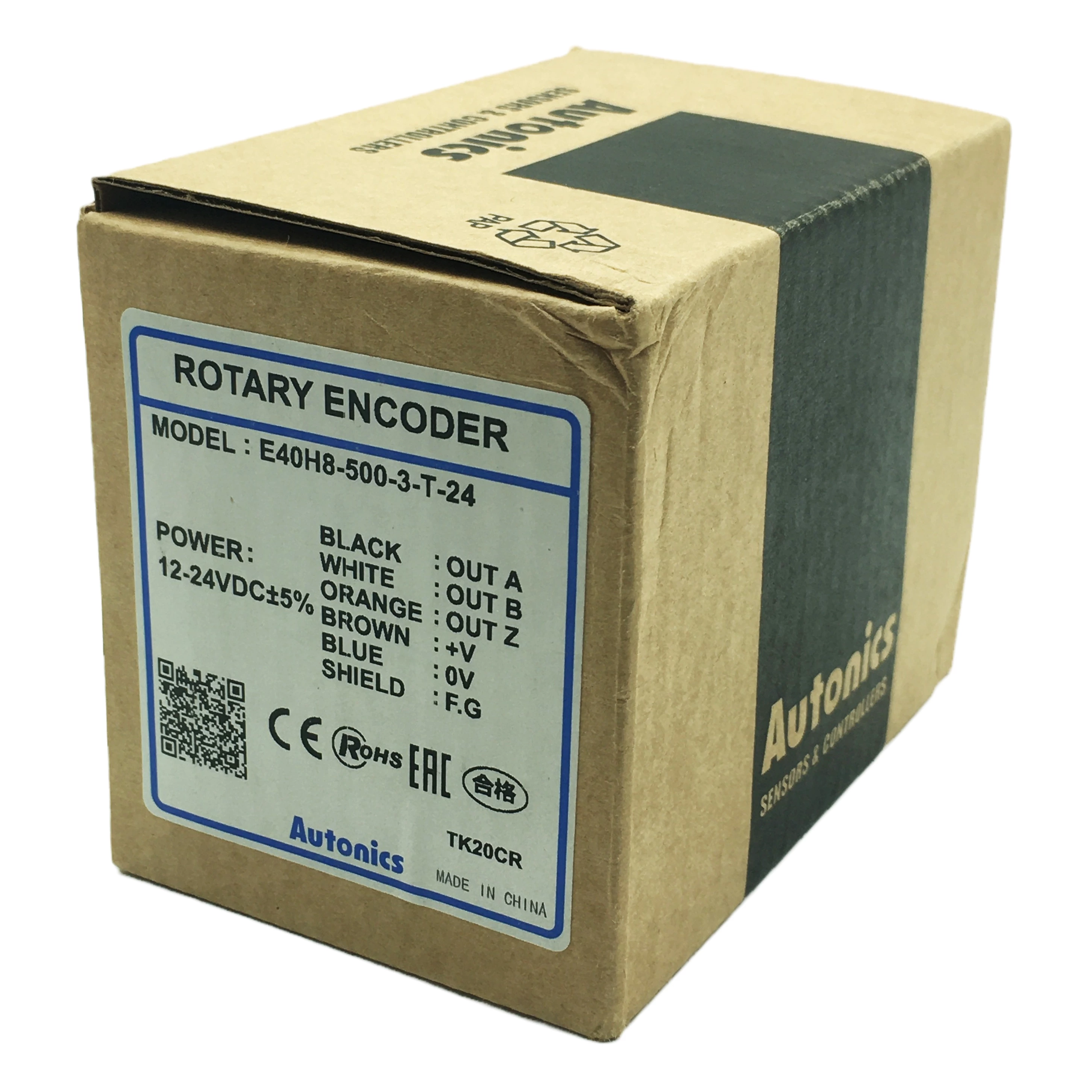

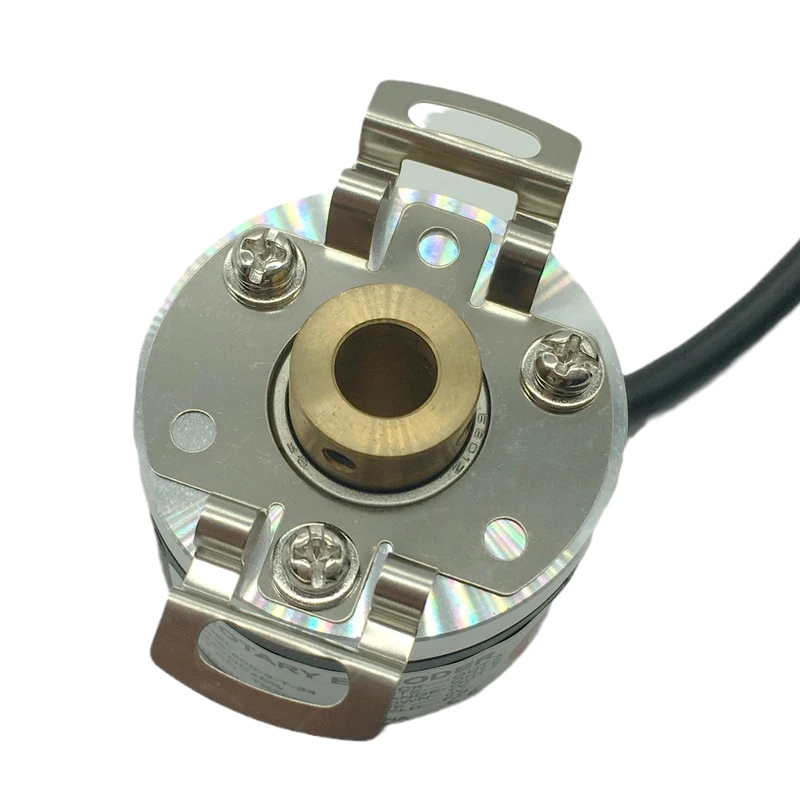

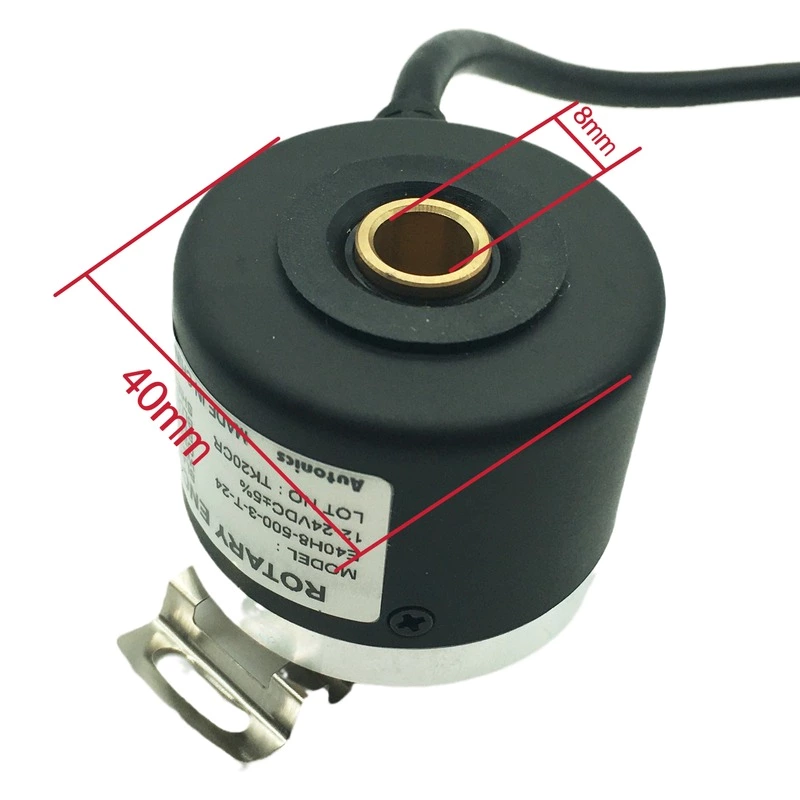

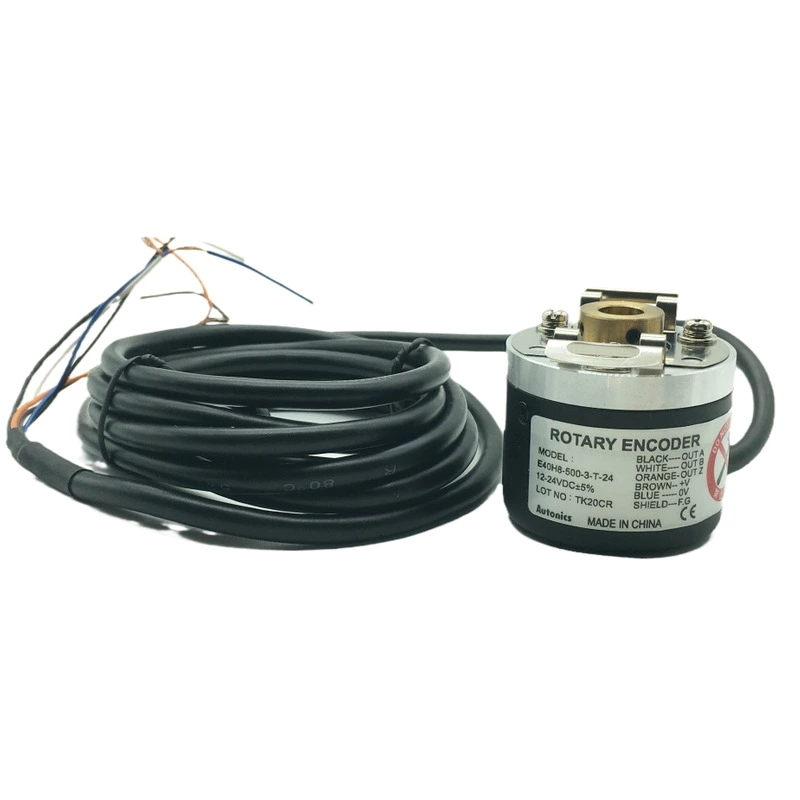

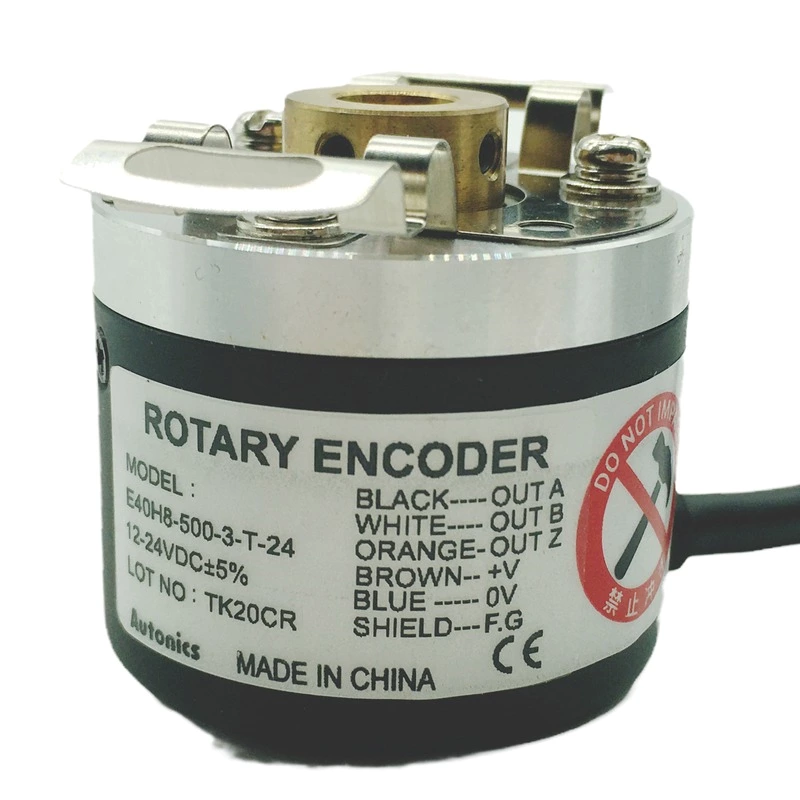

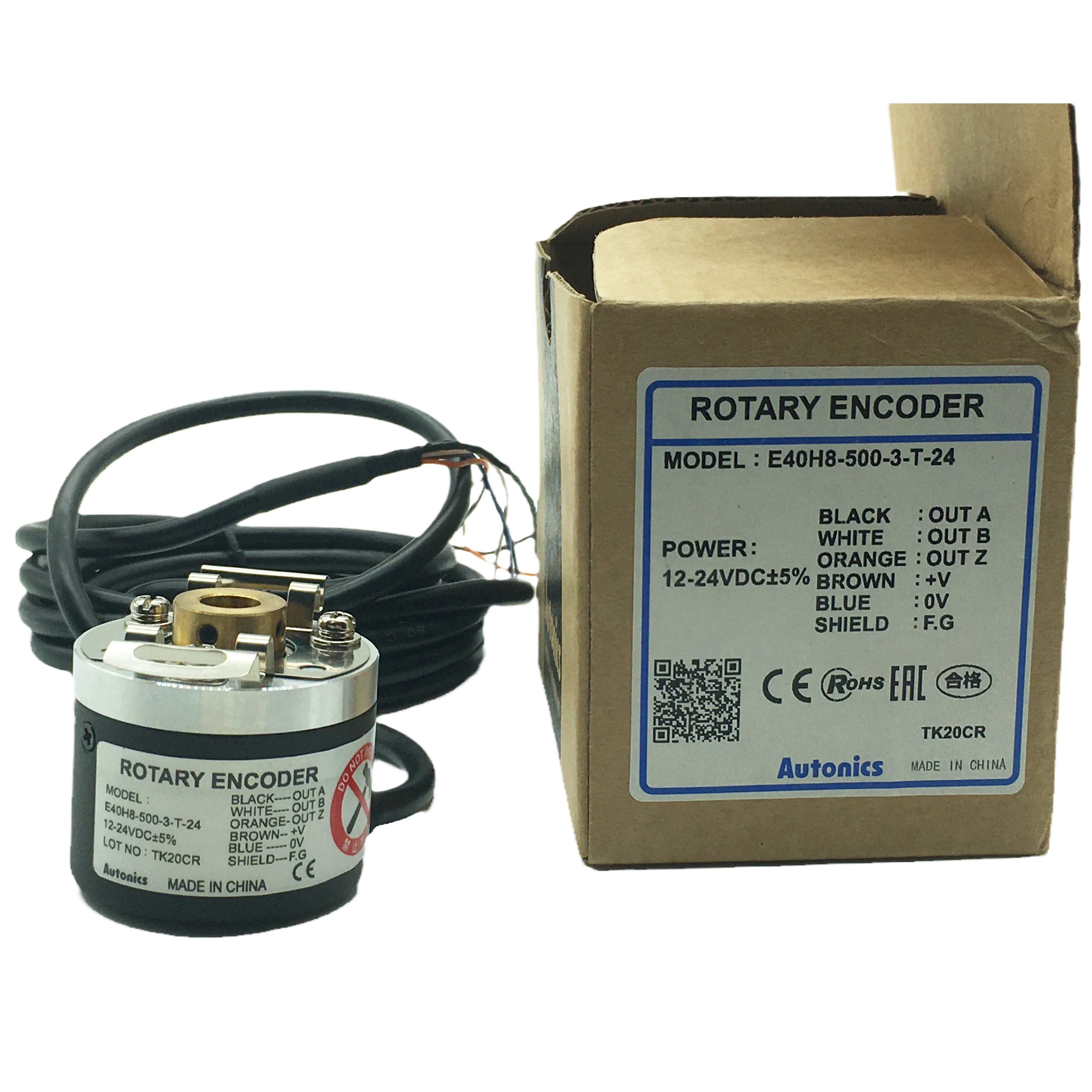

Product Pictures
