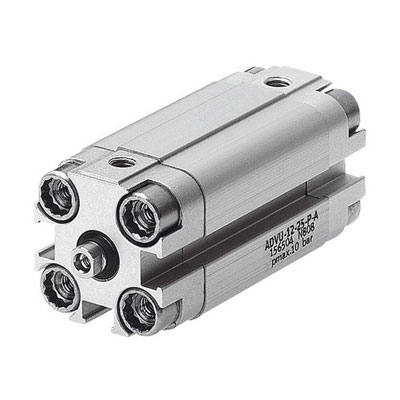

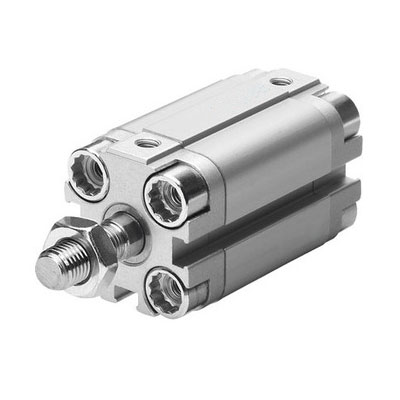

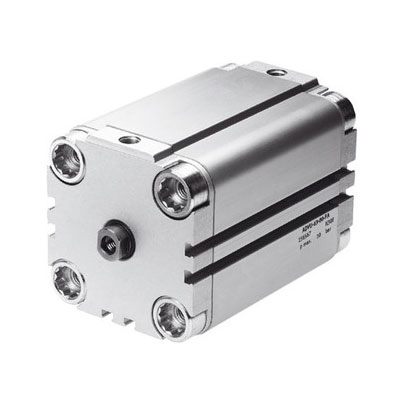

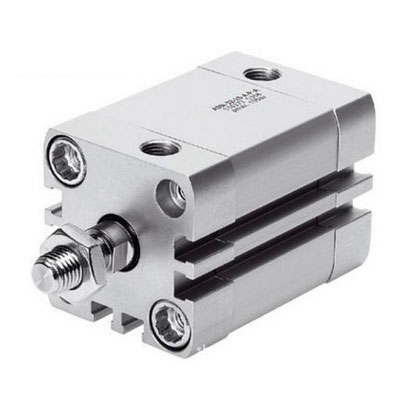

Compact Pneumatic Cylinder ADVU

Overview for ADVU Compact Air Cylinder

ADVU double-acting Compact Air Cylinder

AEVU single-acting push type Compact Air Cylinder

AEVUD single-acting pull type Compact Pneumatic Cylinder

ADVU Compact Pneumatic Cylinder Compared with ISO15552, ISO6432 standard cylinders, ADVU Compact Air Cylinder has the same force, can save 50% space. Conforms to the specific type of the ATEX directive and can used in potentially explosive working environments.

Overview for ADVU Compact Air Cylinder

Bore Sizes: 16,25,32,40,50,63,80,100

Stroke Lengths: 5,10,15,20,25,30,35,40,45,50,75,100,200,300mm

Operating Pressure: 0.13-1.0 MPa

Speed:30~800mm/s；

Working Environment Temperature: -10 to 80°C
