Features
-
Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement.
-
No load current is considered; plug and pull design, can be charged replacement, easy to maintain.
-
Bult-in temperature control circuit technology, high safety performance, no after flow.
-
Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
-
Optional remote monitoring interface can be used for remote monitoring.
High working voltages, high pass flow, high safety performance and high stability.
| Product capability parameter | |
| Product Model | G2040PV/1000 |
| Uc | 1000V |
| Up | <4.0kV |
| Ures(5kA) | <2.8kV |
| In(8/20 μm) | 20kA |
| Imax(8/20 μm) | 40kA |
| Sheathing material | Fire-retardant reinforced nylon (UL94V-0) |
| Recommended area of grounding wire | 16mm2 multiple flexible conductor |
| Max backup protective fuse | 80A gL |
| Clearance and creepage distance | >25mm |
| Protection grade | IP20 |
| Normal working temperature | -40℃~80℃ |

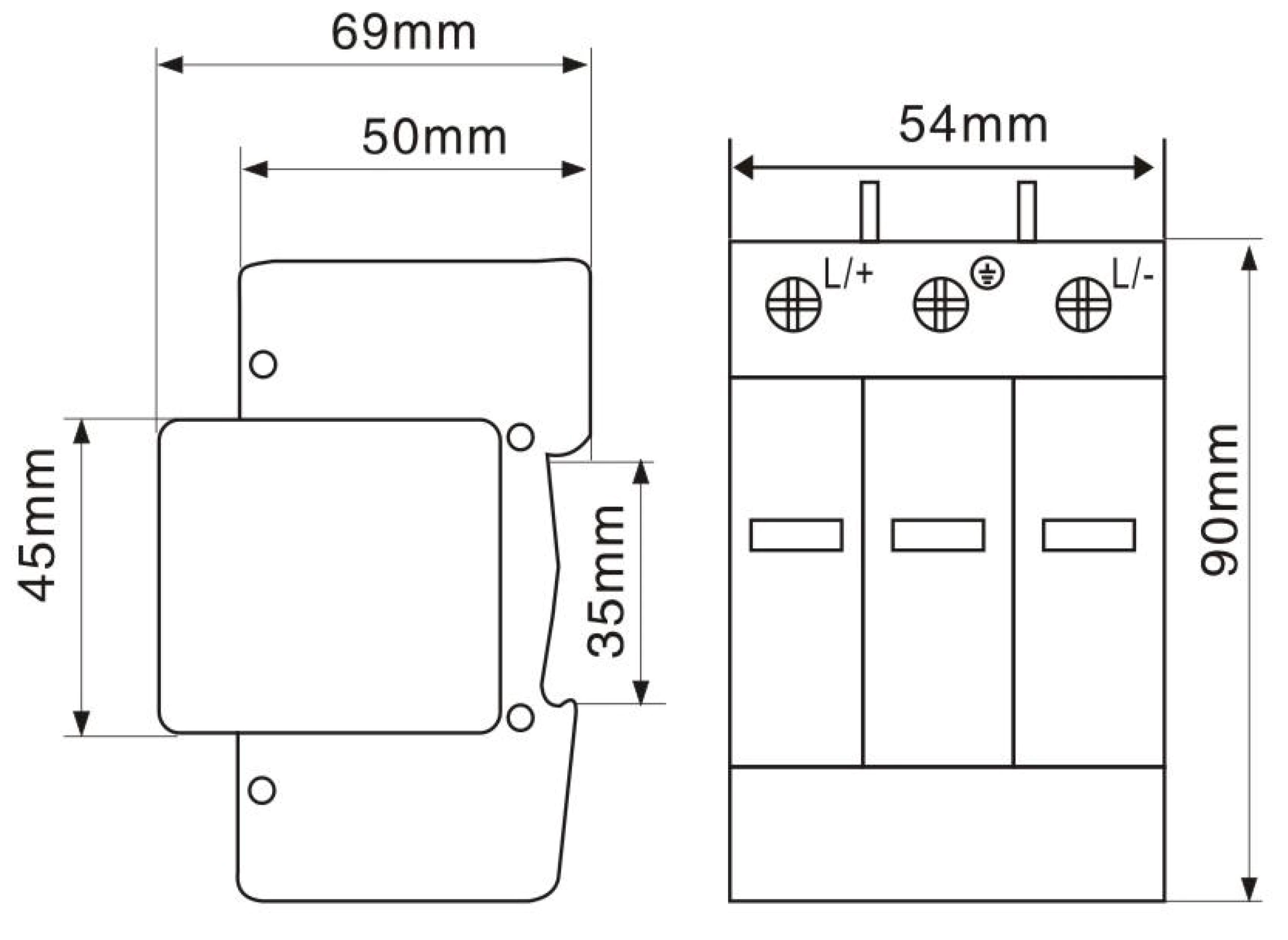

Product dimension drawing
