FEATURES
-
7" 16:9 TFT Display
-
65536 True Color TFT LCD
-
32-bit, 800 MHz RISC CPU
-
128M FLASH + 64M SDRAM
-
512 KB Recipe Memory, Record Data Easily
-
Real-Time Clock, 2 Year Reserve Time when Powered Off
-
2 COM Ports, Supports Simultaneous Communication; RS232/RS422/RS485
-
Input Voltage Range 12- 28VDC
DESCRIPTION
The MT4000 Series is a very powerful HMI product that will make your application soar. This HMI line comes with a 65536 color display mode that gives your touch screen rich color and incomparable resolution. With the application of a powerful 800 MHz 32-bit RISC processor, the MT4000 provides faster processing speeds. Each HMI supports simultaneous communications via its multiple serial ports, so that you may connect to different controllers at the same time. With the simple, convenient and powerful HMIware configuration software, the user can master its design method and create first-class programs efficiently.

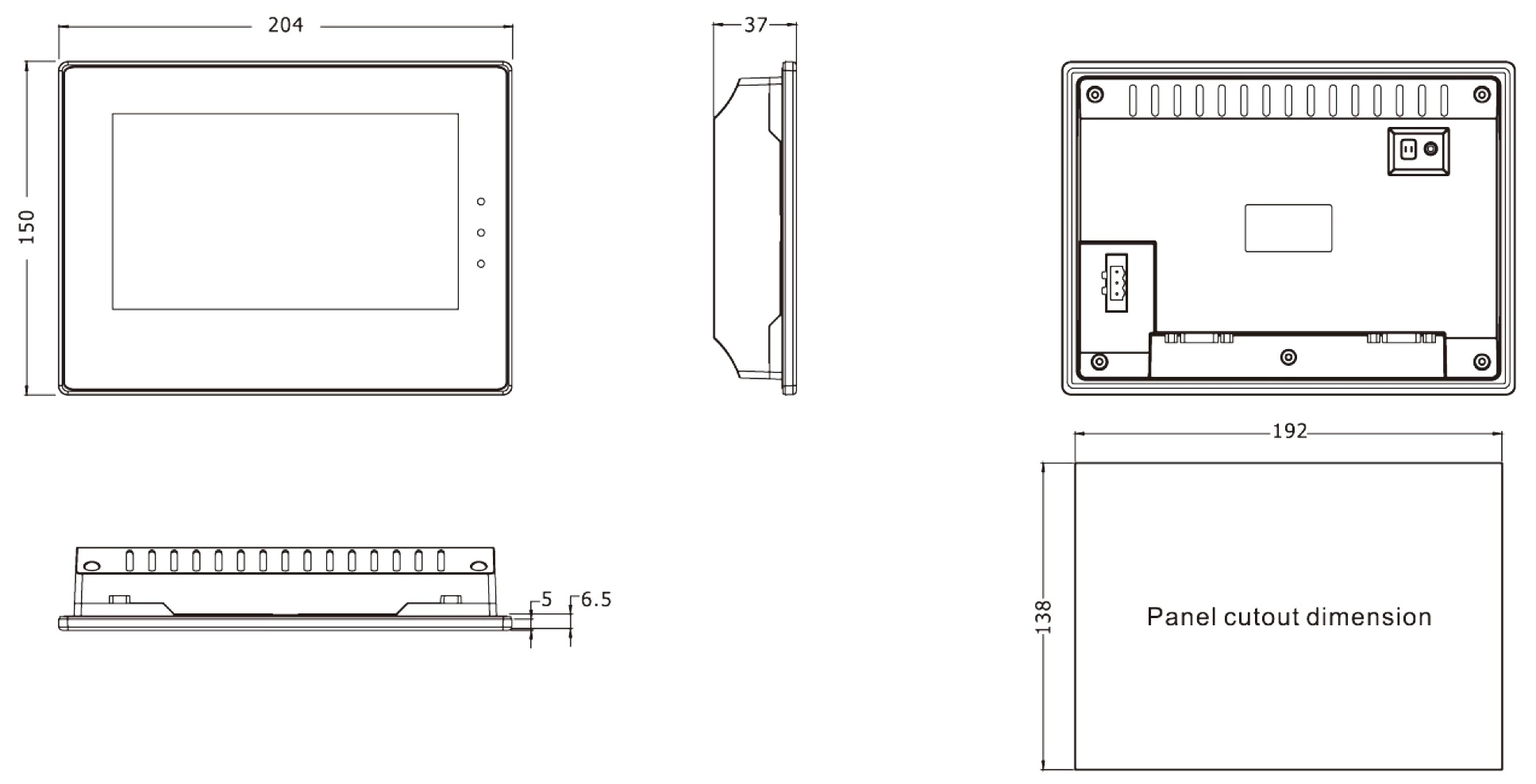

DIMENSIONS
SPECIFICATIONS
| Performance Specification | |
| Display | 7" 16:9 TFT |
| Resolution | 800*480 |
| Color | 65536 |
| Backlight | LED |
| Brightness | 300cd/m2 |
| Backlight life | 50000 hours |
| Touch Panel | 4-wire precision resistance network |
| Processor | 32-bit RISC CPU 800MHz |
| Memory | 128M FLASH, 64M SDRAM |
| U Disk | 1 USB host |
| Recipe memory & RTC | 512KB + RTC |
| Printer port | Serial port/USB port |
| Ethernet | 10/100 Base-T |
| Program download | USB SLAVE/Serial port/Ethernet port |
| COM port | COM0:RS232/RS485-2/RS485-4,COM2:RS232 |
| Electrical specification | |
| Rated power | 4W |
| Rated voltage | 24VDC |
| Input range | 12~28VDC |
| Power Down Allowed | < 3 ms |
| Insulation Resistance | > 50M Ω @ 500 VDC |
| Dielectric Strength Test | 500 VAC 1 Minute |
| Structure Specification | |
| Shell Color | Black |
| Shell Material | ABS |
| Dimensions(mm) | 204 x 150 x 37 |
| Cutout Size(mm) | 192 x 138 |
| Weight | 0.75 Kg |
| Environment Specification | |
| Operating Temperature | 0°~50° C |
| Operating Humidity | 10~90% Non-Condensing |
| Storage Temperature | -10°~60° C |
| Storage Humidity | 10~90% Non-Condensing |
| Shockproof Test | 10~25Hz (X,Y, Z Direction, 2G, 30 Minutes) |
| Cooling Method | Natural Air Cooling |
| Certification | |
| Degree of Protection | IP65 (Front Panel) |
| CE Certification | Comply with EN61000-6-2:2005 and EN61000-6-4:2007 Standards |
| FCC Compatibility | Complies with FCC Class A |
