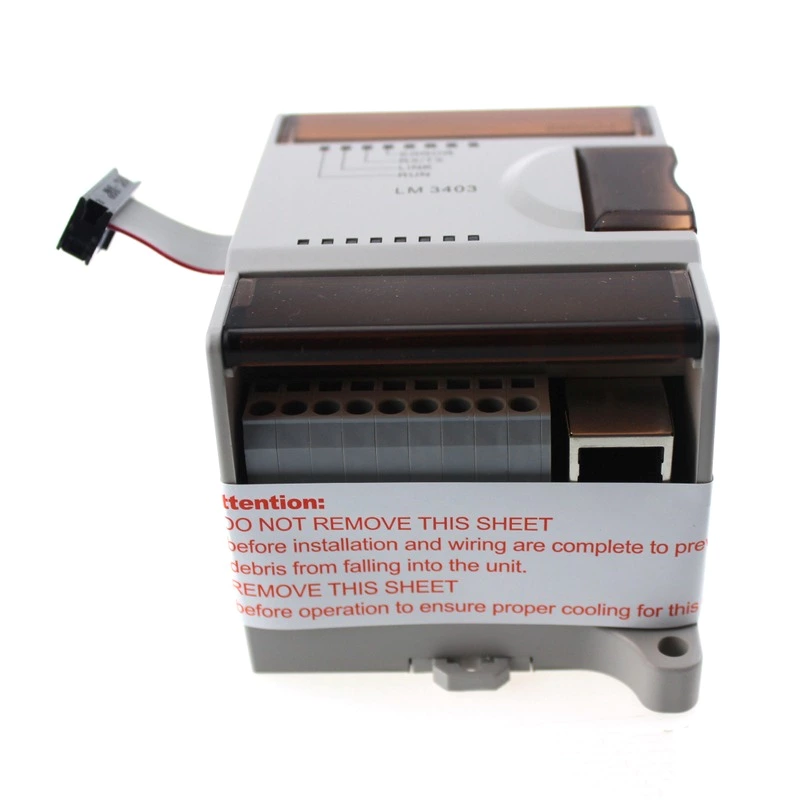

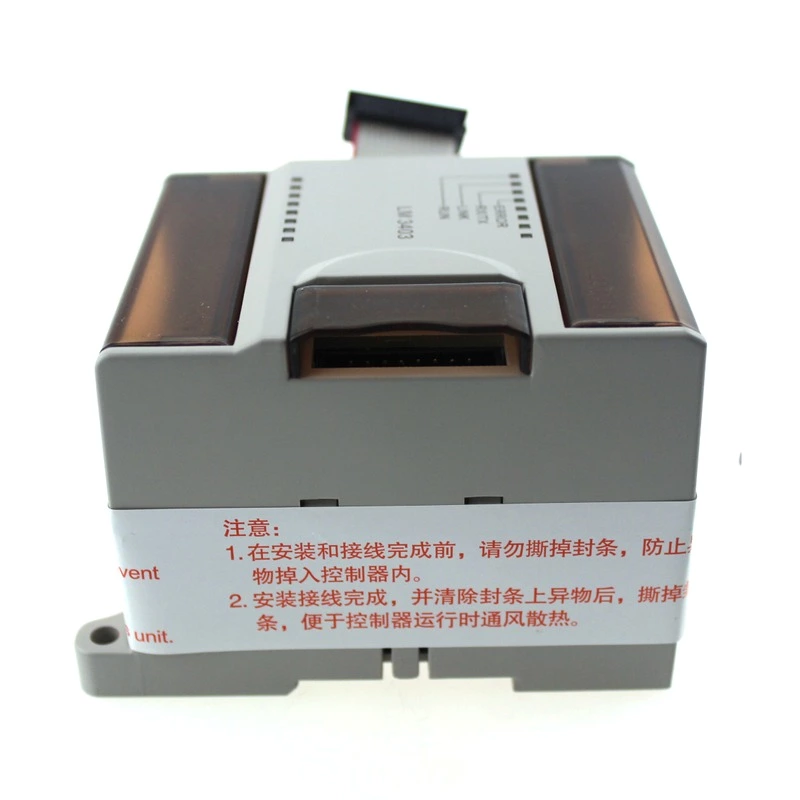

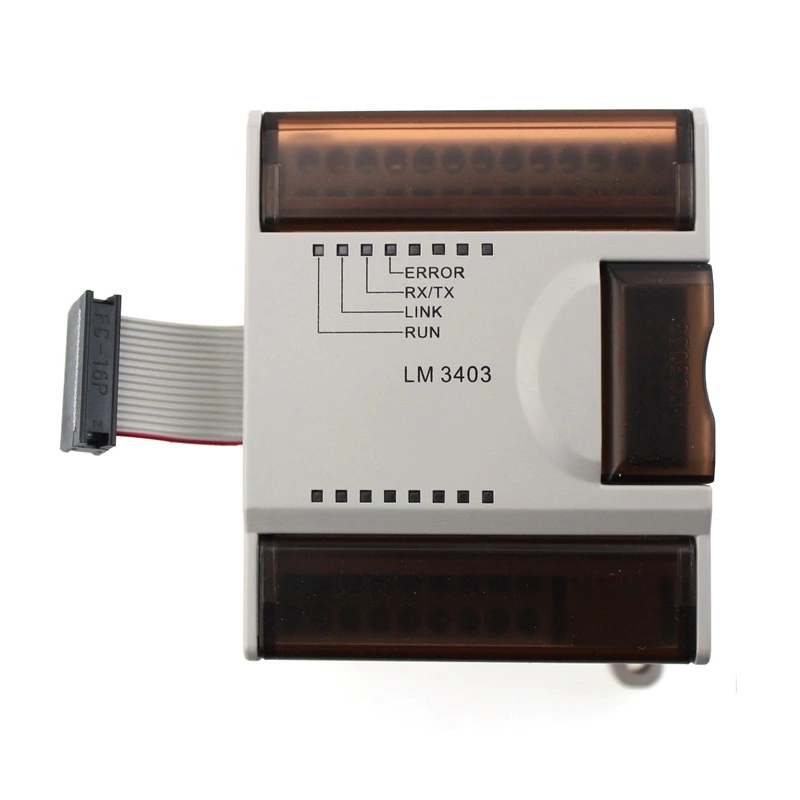

AO Module LM3403 (2CH Analog Output)
Output channel: 2
Output precision: 2% full range (0∼55)
Typical precision: 0.5% full range, at 25
Output Features
| Output channel | 2 | |
| <> Output range | Voltage | 0∼10V |
| Current | 0∼20mA | |
| Precision (0∼55) | 2% full range | |
| Typical precision | 0.5% full range, at 25 | |
| Setup time | Voltage output | <=10us |
| Current output | <=10us | |
| Drive capacity | Voltage | Minimum 2000Ω |
| Current | Maximum 600Ω | |
| Isolation mode | Photocoupler isolation | |
| Maximum Isolation Voltage | 1500VAC | |
Physical Features
| Dimensions | 75mm(L)×90mm(W)×70mm (H) | |
| Weight | <200g | |
| Power Consumption | +24VDC (Provided by expansion bus) | 0mA |
| +24VDC (External supply) | 80mA | |
| +5VDC (Provided by expansion bus) | 60mA | |
