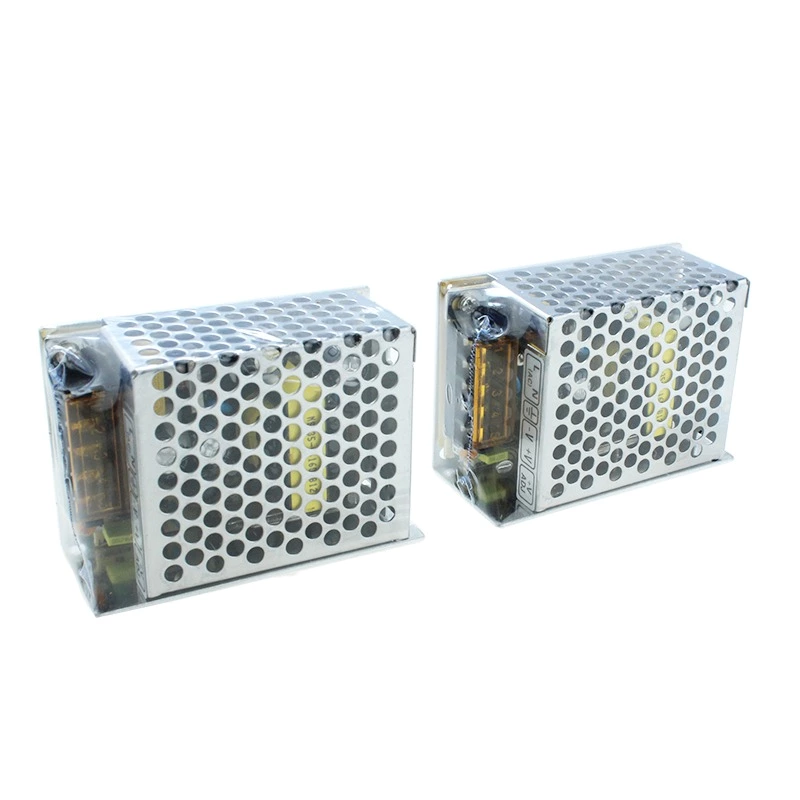

MS-15-5 15W DC Mini size Switching Power Supply
Features:
Low price and high reliability
105ºC output capacitor
AC input power suitable for the world
High Efficiency and low operation temperature
Soft-strat current can reduce the AC input impact effecticly
With-short-circuit and overload protection
Compact size, light weight
100% full load burn-in test
Installed with EMI filter, minimum mave
| Model | MS-15-5 | MS-15-12 | MS-15-24 |
| DC output voltage | 5V | 12V | 24V |
| Output voltage tolerance | ±2% | ±1% | ±1% |
| Rated output current | 3A | 1.3A | 0.7A |
| Output current range | 0-3A | 0-1.3A | 0-0.7A |
| Ripple and noise | 50mVp-p | 50mVp-p | 100mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% |
| Load stability | ±1% | ±0.5% | ±0.5% |
| DC output power | 15W | 15.6W | 16.8W |
| Efficiency | 65% | 68% | 72% |
| Output voltage adjustment range | ±10,-5% | ±10 | ±10 |
| AC input voltage range | AC100-264V 47~63Hz 240-370VDC | ||
| Input current | 0.5A/115V 0.25A/230V | ||
| AC impulse current | Cold-start current 15A/115V 30A/230V | ||
| Leakage current | <0.5mA/240VAC | ||
| Overload protection | 105%~150% Type:Pulsing hiccup shutdown Reset:auto recovery | ||
| Over-voltage protection | .......... | ||
| High-Temperature protection | .......... | ||
| TEMP. coefficient | ±0.02%°C(0~50°C) | ||
| Setup rise hold up time | 200ms 100ms 30ms | ||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes | ||
| Withstand voltage | Input and ouput intemal:1.5KVAC Input and enclosure:1.5KVAC Output and enclosure:0.5KVAC | ||
| Isolation resistance | Input and ouput intemal:input and enclosure Input and enclosure:500vdc/100MΩ | ||
| Working temperature and humidity | -10°C~+60°C,20~90%RH | ||
| Store temperature and humidity | -20°C~+85°C,10~95%RH | ||
| Overall dimension | 120*46*32mm | ||
| Weight | 0.3Kgs | ||
| Safety standards | Meet UL 1012 requirement(Not apply for the mark) | ||
| EMC standards | Meet FCC PART15 J Conduction class B | ||
