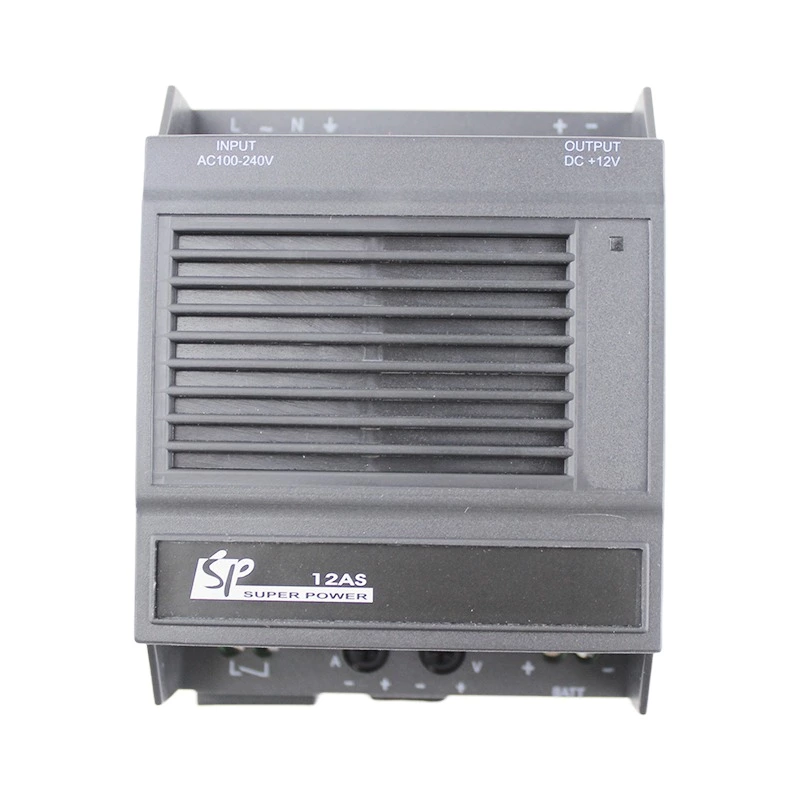

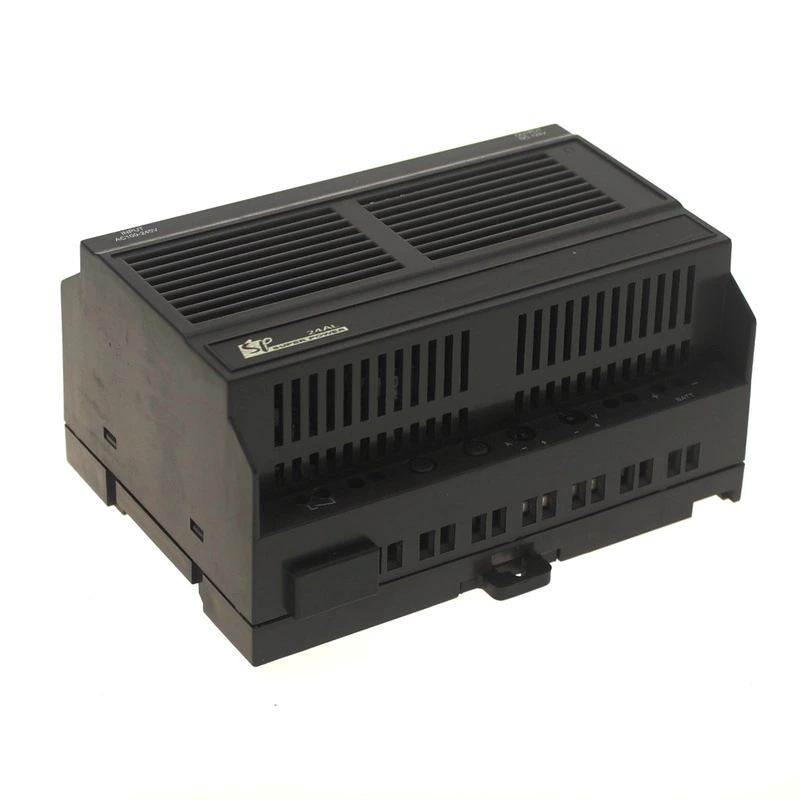

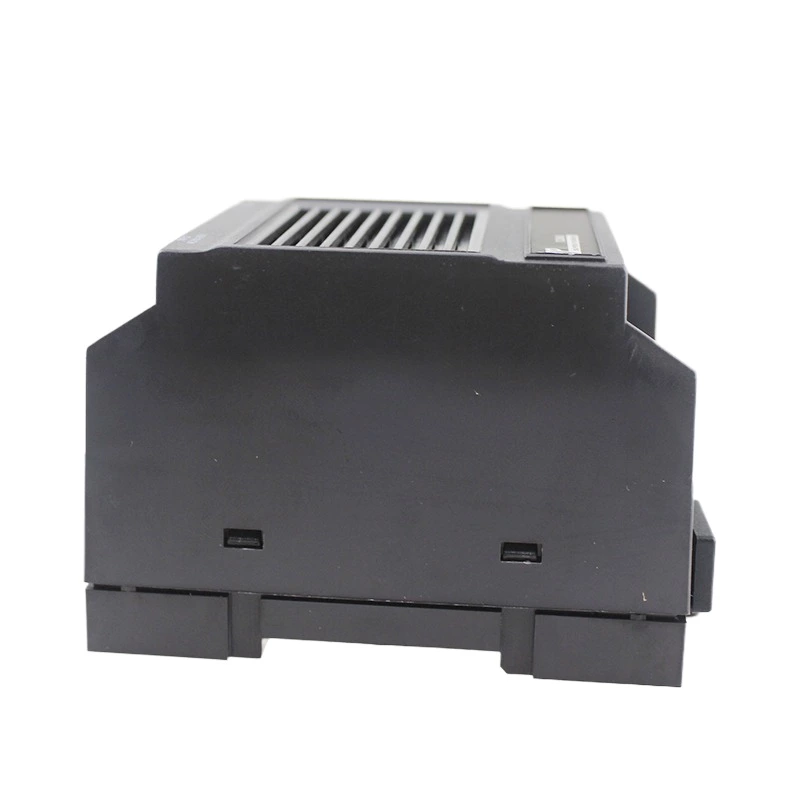

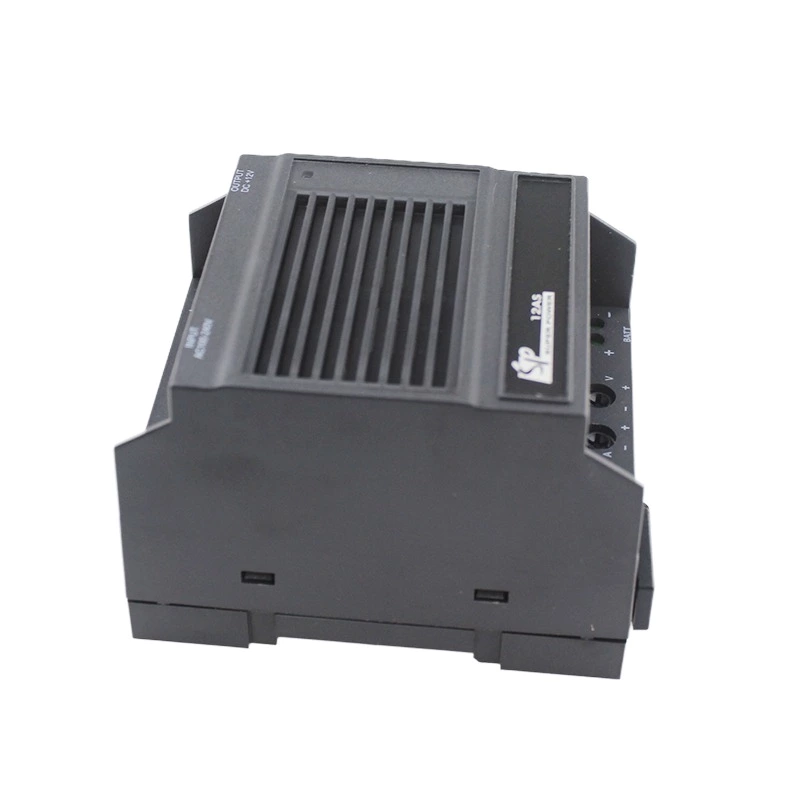

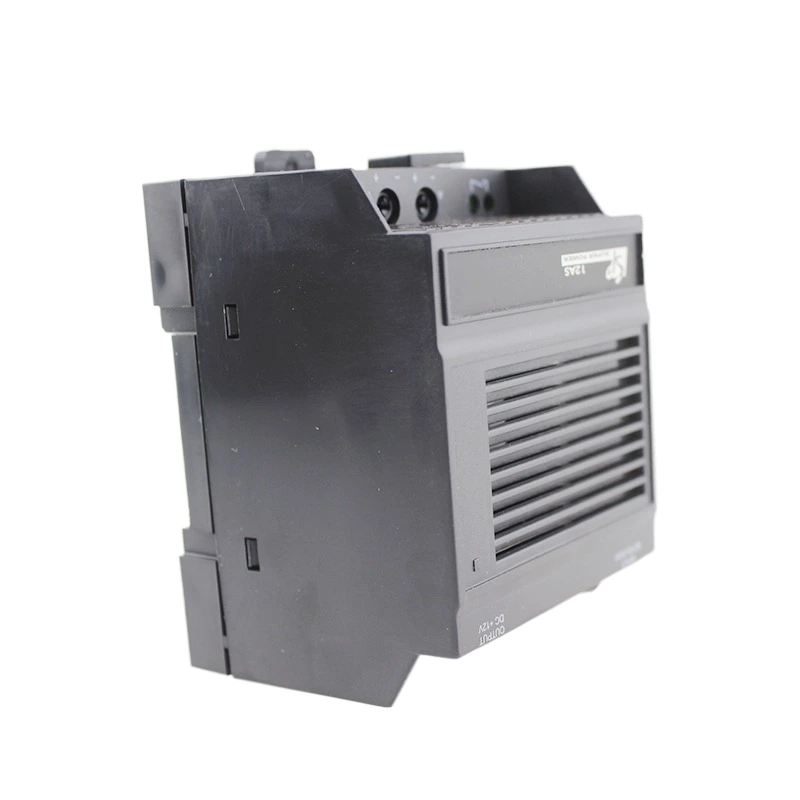

SP series industrial switching power supply is especially designed for industrial equipment, which employ 35mm DIN guideway, with low ripple, wide range of input voltage from AC 100-240VAC,and can output DC5V,12V,24V, 48V.It provides UPS uninterrupted power supply and soft start. Remote controlling function is also provided with.
Performance & Features：
Internal-Installed EMI filter condenser
Input frequency: 47-63HZ
Output voltage stability:+-0.5%
Can be used for DIN installation (EN50022-35)
All range voltage input (85-264VAC,120V-370VDC)
Output voltage inching range (-5%~+10%,adjusting potentiometer V)
Have the function of soft-start (to limit the peak current of start and the pressure of the voltage to the components)
The current of the load can be roughly adjusted (means the maximum protective current of the load, adjusting potentiometer A)
Have the short circuit and over-load protection. (Over-load protection: 105%-135%)
nsulation and voltage endurance: >1.5KV
Power supply output with the LED indicator
-
Ripple:<100mVp-p
-
Efficiency: >80%
-
Remote control function. (the remote control switch can control having and not having the output voltage)
-
UPS function (External-connected battery can be charged when the AC power is supplied, the power supply will act as UPS when the AC power is off and the battery was connected.)
Over-heat protection function (The main control CMOS chip stops output when the temperature is beyond 135 degree and the output will renew automatically when the temperature drops to certain level.)
Technical Index：
| ype | SP-05AS | SP-12AS | SP-24AS | SP-05AL | SP-12AL | SP-24AL |
| Voltage (V) | 5 | 12 | 24 | 5 | 12 | 24 |
| Current (A) | 7 | 3 | 1.5 | 14 | 6 | 3 |
| Dimensions (WXHXD) | 71mm * 106mm * 65mm | 126mm * 106mm * 65mm | ||||
| Input Voltage | 85-265VAC | |||||
| Supply frequency | 47-63Hz | |||||
| Output voltage tolerance | 1% | |||||
| Max. Ripple/Noise | <100mVpp | |||||
| Operation Temperature | -25 to 70 | |||||
| Efficiency | >80% | |||||

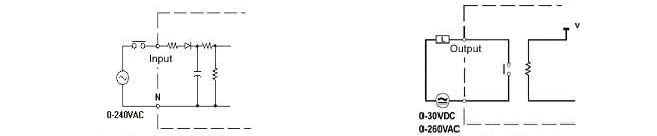

Installation Dimensions & Wiring Diagram：
The switch power supply, with compact size, light weight (250G) and high efficiency, whose voltage and current can be matched, has current protection and provides with UPS support, soft start and remote control functions. It is widely used in computers, terminal equipments, communication equipment and almost all the electronic equipments. It is now a power
supply that electronics information industry cannot live without it.
