Programmable Relay Micro PLC PR6 Series Small Relay with Mini PLC

Description

PR-6 Series CPU
Model	Expansion	Supply volt	Inputs	Outputs	High-speed count	PWM	HMI	RTC	G . W(G)
PR-6AC-R	NO	AC 110～240V	4 DI	2 relays(10A)	NO	NO	NO	YES	180
PR-6DC-DA-R	NO	DC12V-24V	4 DI(I1-I4) /4(0...10V)	2 relays(10A)	NO	NO	NO	YES	180

GENERAL SPECIFICATIONS
Timers : 64
Counters : 64
Function Blocks : 64
Operation temp. : -20℃-55℃
Storage: -40℃-70℃
Protection : IP20
RTC accuracy : MAX ±2S/day
RTC Backup at 25 °C : 20 days
Program and settings Backup :10 years
Data Power-off retentivity : No
Cycle time: typ. 0.6ms to 8.0ms

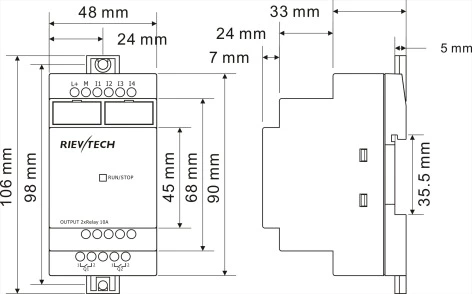

Dimensions : 48*90*64 (Unit, mm）
Certificate : CE,ROHS
Installation: 35mm-DIN rail or screw for installation
Expansion capacity : No
Password protection : 4-digit number password protection or disable program upload function
Communication interface : TTL interface , 1 Program/RS232 port
Communication protocol : Modbus RTU/ASCII , only can serve as slaves

Technical Index

Power supply:
Nominal voltage	AC110V-240V
Operating limits	AC85 - 265 V
The main frequency range	47-63Hz
Max. absorbed power	34 mA (85V AC) 26 mA (265V AC)
Isolation voltage	1780V AC
Protection against polarity inversions	Yes
Input parameters:
Input No	4 ( I1-I4 )
Digital input	4 ( I1-I4 )
Analogue input	None
Input voltage	AC110-240V
Input signal0	AC0-40V；<0.03mA
Input signal1	AC79-240V； >0.06mA
Input Response Time	Delay time at 0 to 1： 120V AC ：Typ. 50 ms 240V AC ：Typ. 30 ms Delay time at 1 to 0： 120V AC ：Typ. 90 ms 240V AC ：Typ.100 ms
Maximum counting frequency	Typ. 4Hz
Sensor type	Contact or 3-wire PNP
Isolation between power supply and inputs	None
Isolation between inputs	None
Protection against polarity inversions	Yes
Output parameters:
Output No.	2 (Q1-Q2)
Output type	Relay output
Max. Allowable Power Force	CE: 10A,250V AC/DC30V
Electrical durability Expectancy	105 Operations at Rated Resistive Load
Mechanical life	107 Operations at No Load condition
Response time	Operate Time : 15 mSec. Max. Release Time : 10 mSec. Max.
Built-in protections	Against short-circuits: None Against overvoltages and overloads: None
Switch frequency:
Mechanism	10Hz
Resistor/light load	2Hz
Sensitive load	0.5Hz
Other parameters:
Weight	Approx.180g
