Customized High Pressure Flexible Nylon PU Air Hose Plastic Rubber Line Polyurethane Tubing Pneumatic Tube Pipe
The code system is : type + tube outerdia& Innerdia + color
1. Type
| EN | Nylon |
| EU | Polyurethane (PU) |
2. Tube outerdia& innerdia
| Code | 0425 | 0640 | 0850 | 0860 | 1065 | 1280 | 1613 |
| OD(mm) | Φ4.0 | Φ6.0 | Φ8.0 | Φ8.0 | Φ10.0 | Φ12.0 | Φ16.0 |
| ID(mm) | Φ2.5 | Φ4.0 | Φ5.0 | Φ6.0 | Φ6.5 | Φ8.0 | Φ13.0 |
3. Color
| C | B | BU | R | Y | G | W | O |
| transparent | black | blue | red | yellow | green | white | orange |

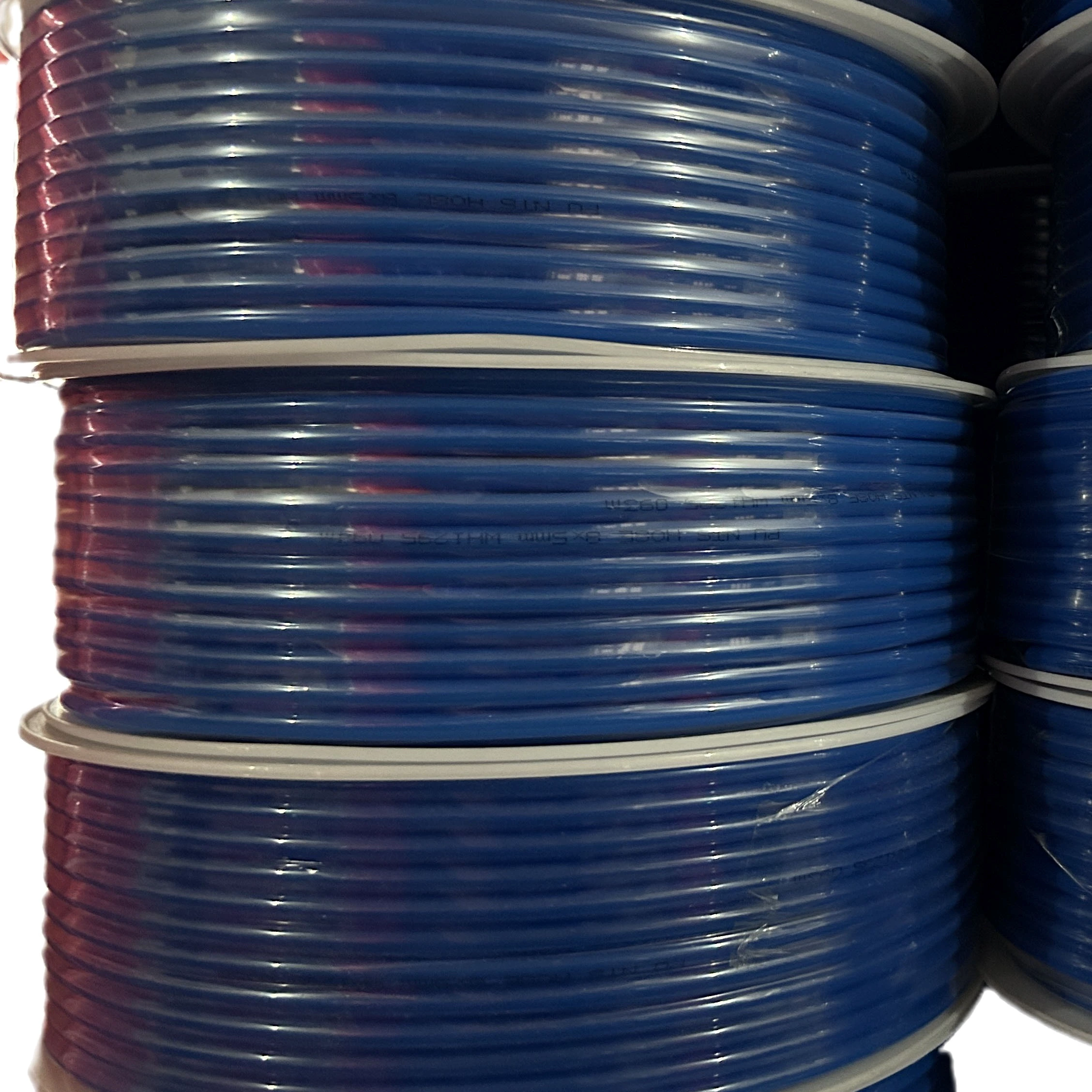

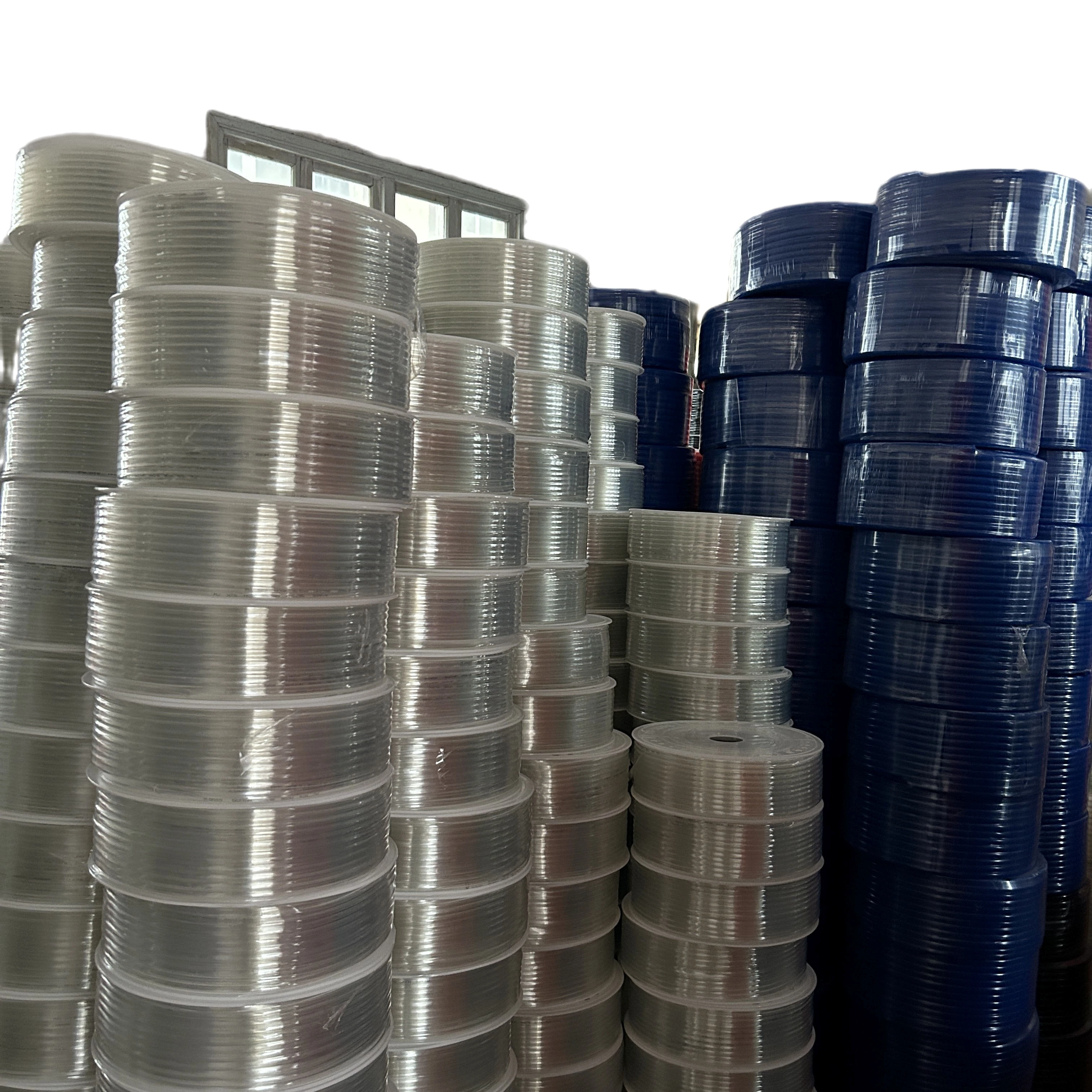

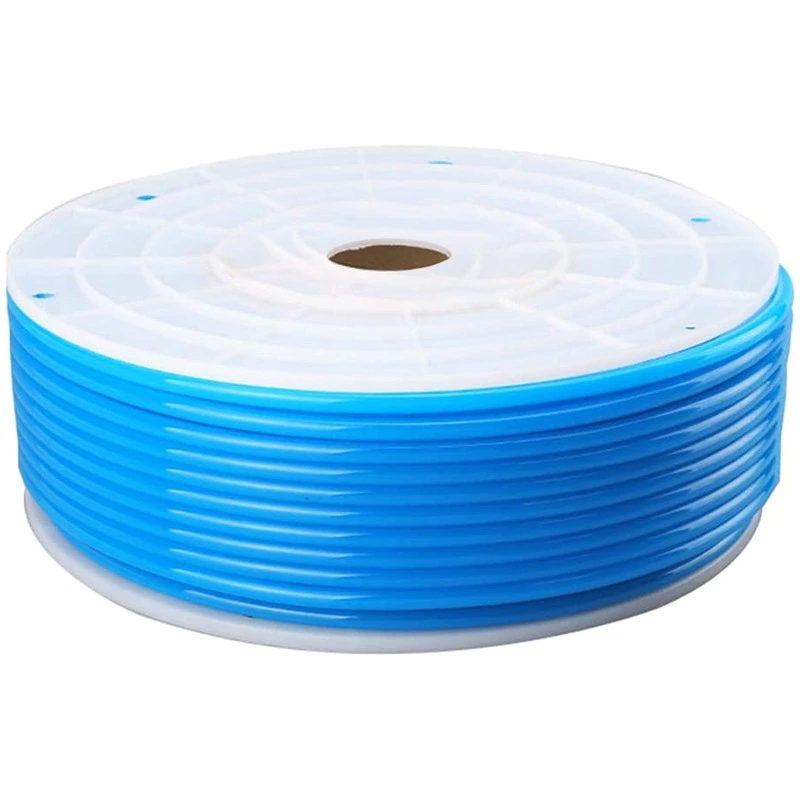

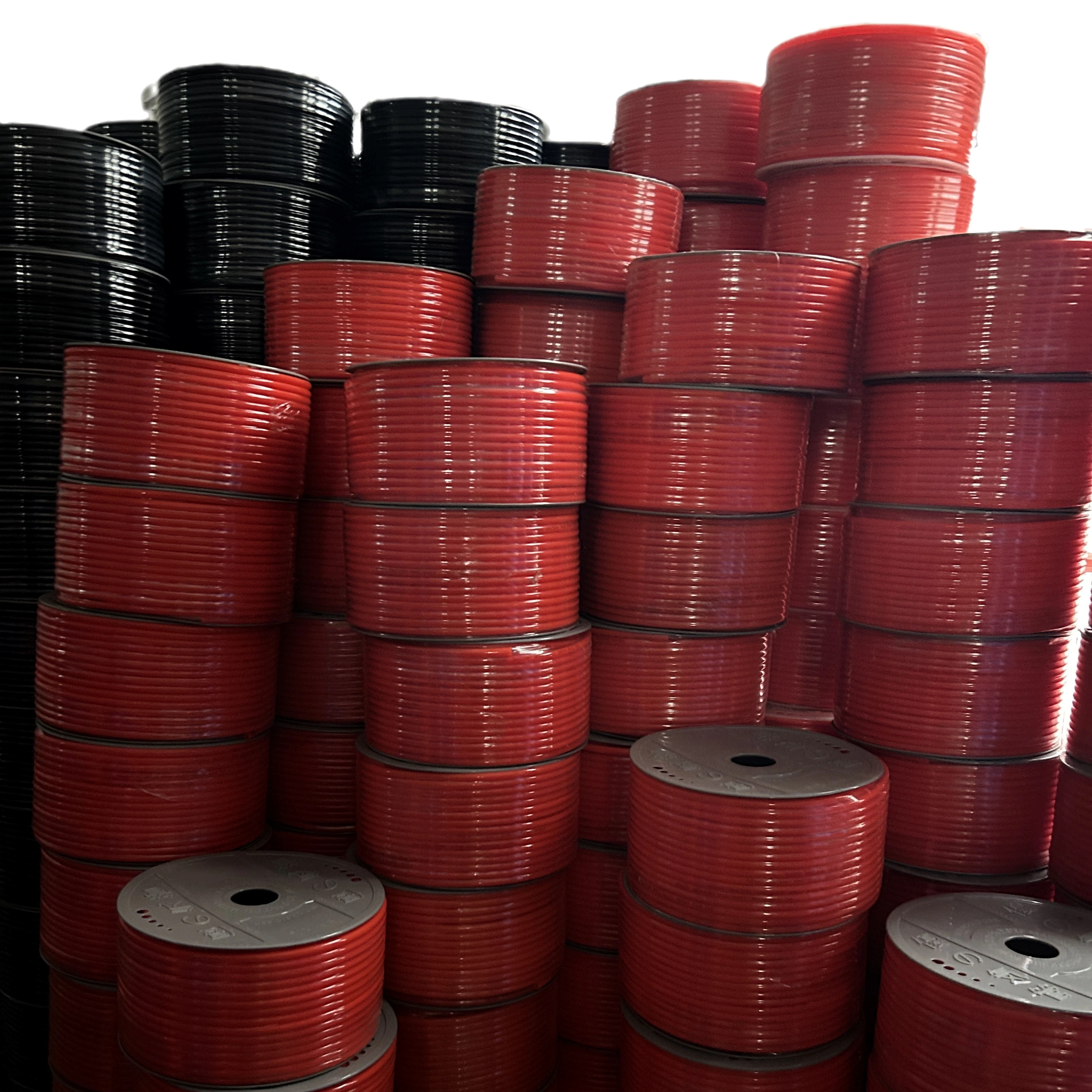

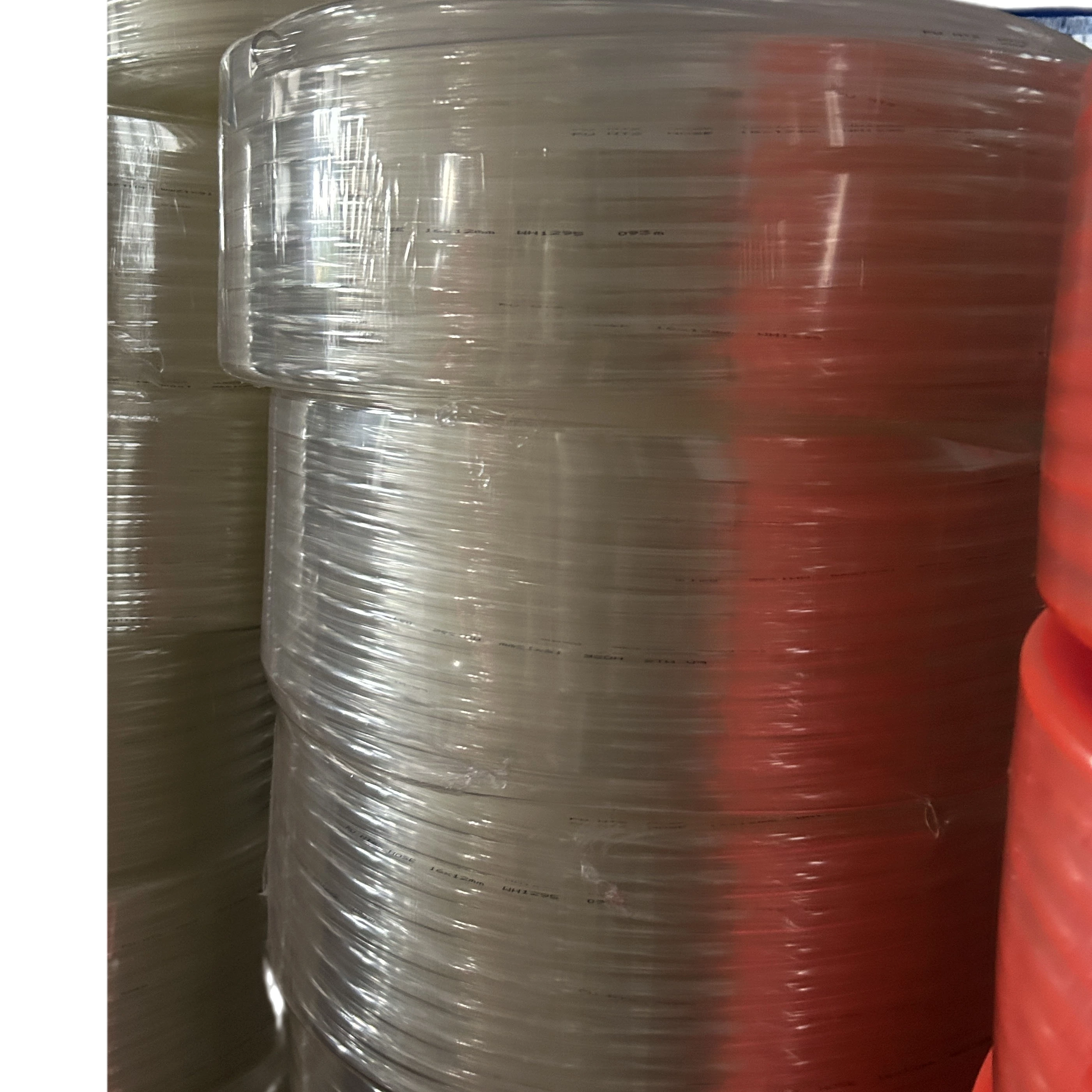

4. Product pictures
Features--why is this unique?
*Resistance in high pressure, shock, corruption, deterioration, extrem climate and bent.
(Seen from technical data)
| Hardness | 90±2A |
| Density | 1.24±0.02g/mm |
| Resistance to tension | 550kg/cm2 |
| Extension ratio | 450% |
| Tear intensity | 10kg/mm |
| Wear and tear | 35mm2 |
| Suitable temperature | -50~100℃ (-58~212℉) |
| Acid& alkaling-resisting degree | ±14PH |
| Withstand atmospheric pressure | 0.8Mpa(8.2kgf/cm2) |
* High precision of inside and outside diameter.
It can be choosed by your preference.
* Suitable for distribute tube and various connectors.
Multichoices are available.
Product Presentation

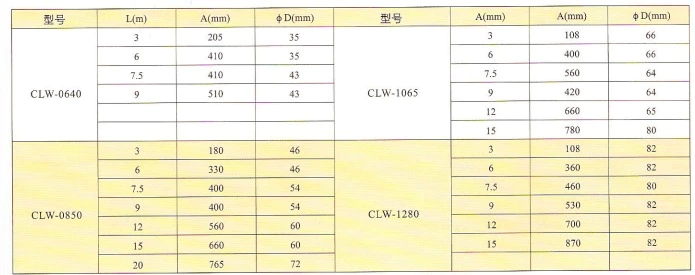

specification
