4V110-06 5/2 Way 40 Micron Filtered Control Airtac Type Air Pneumatic Solenoid Valve
- Model:
- 4V110-06
Product feature
-
Pilot-oriented mode:Internal pilot or external pilot.
-
Structure in sliding column mode: good tightness and sensitive reaction.
-
Three position solenoid valves have three kinds of central function for your choice.
-
Double control solenoid valves have memory function.
-
Internal hole adopts special processing technology which has lttle : atrition friction, low start pressure and long service life.
-
No need to add oil for lubrication.
-
It is available to form integrated valve group with the base to save installation space.
-
Afiliated manual devices are equipped to facilitate installation and debugging.
-
Several standard voltage grades are optional.
Specifi cations
| Model | 4V110-06 |
| Position and way NO. | 5/2 way |
| Effective area | 12mm2 (CV=0.67) |
| Port size | Air inlet=Air outlet=Exhaust=G1/8″ |
| Fluid | 40 micron fi ltered air |
| Operation | Inside pilot type |
| Operating pressure | 0.15 ~ 0.8MPa |
| Max. proof pressure | 1.2MPa |
| Temperature | 5 ~ 50 ℃ |
| Allowable voltage | ± 10% of rated voltage |
| Power consumption | AC: 2.5VA DC: 2.5W |
| Coil insulation & protection grade | Class F. IP65 |
| Electrical entry | Lead wire or connector |
| Highest action frequency | 5 cycle / second |
| Shortest excitation time | 0.05 second |

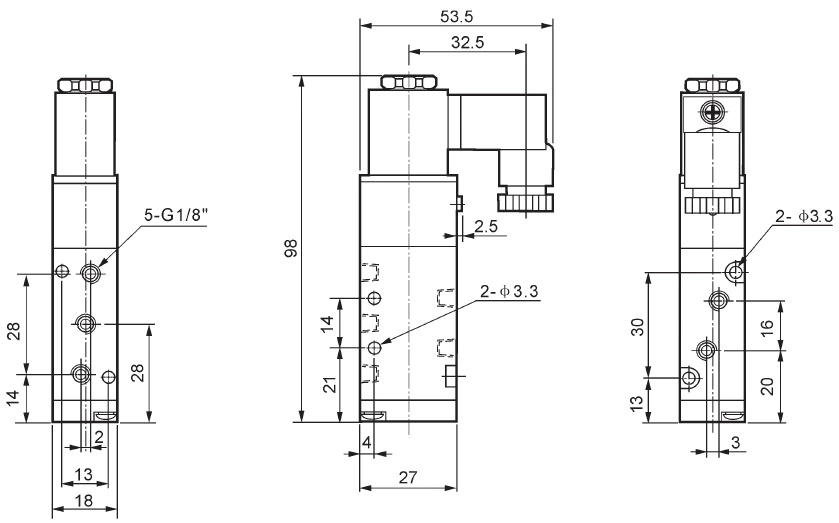

Dimensions
