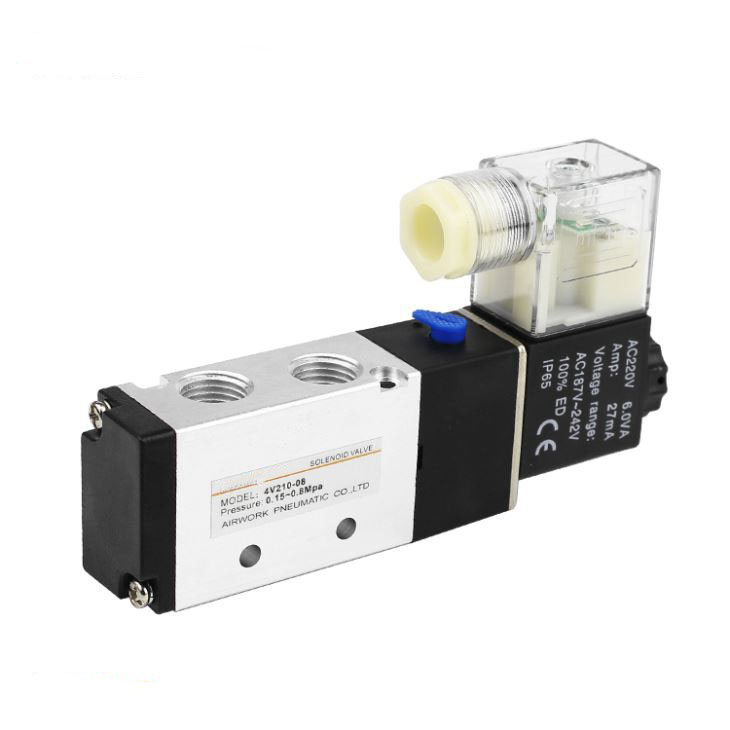

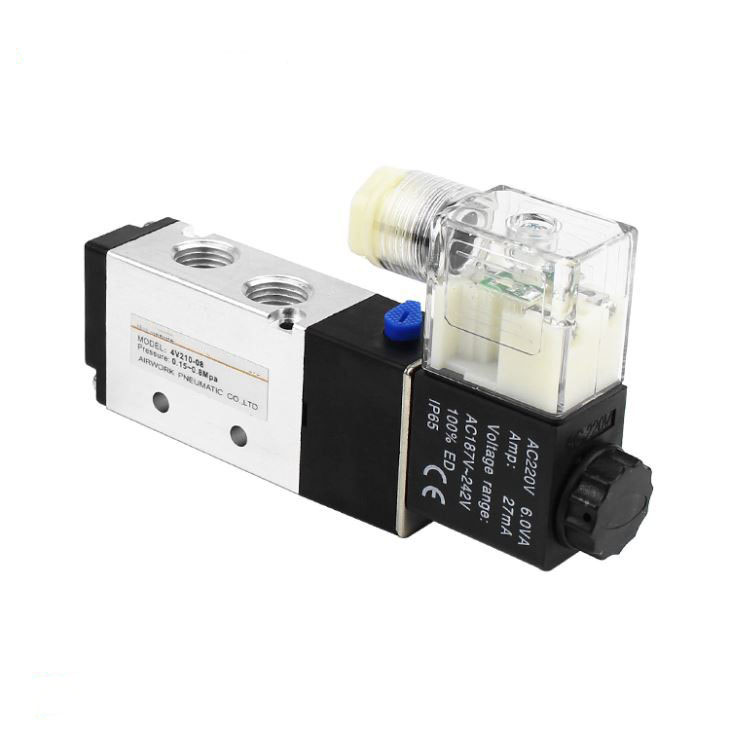

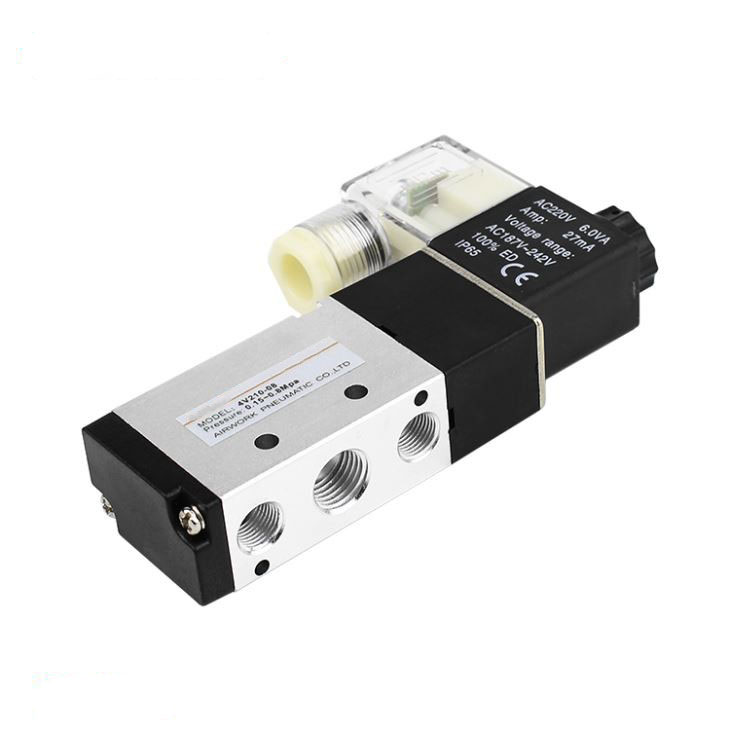

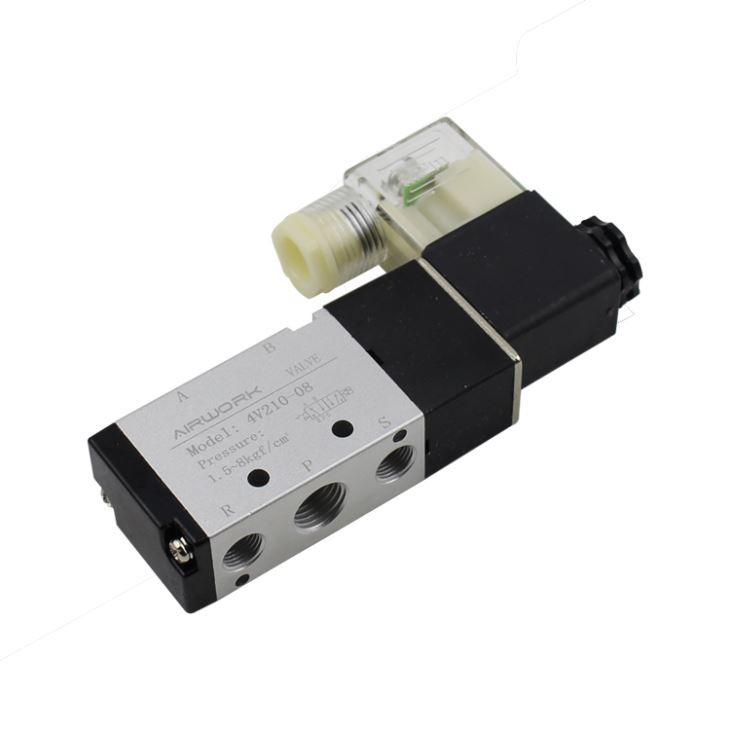

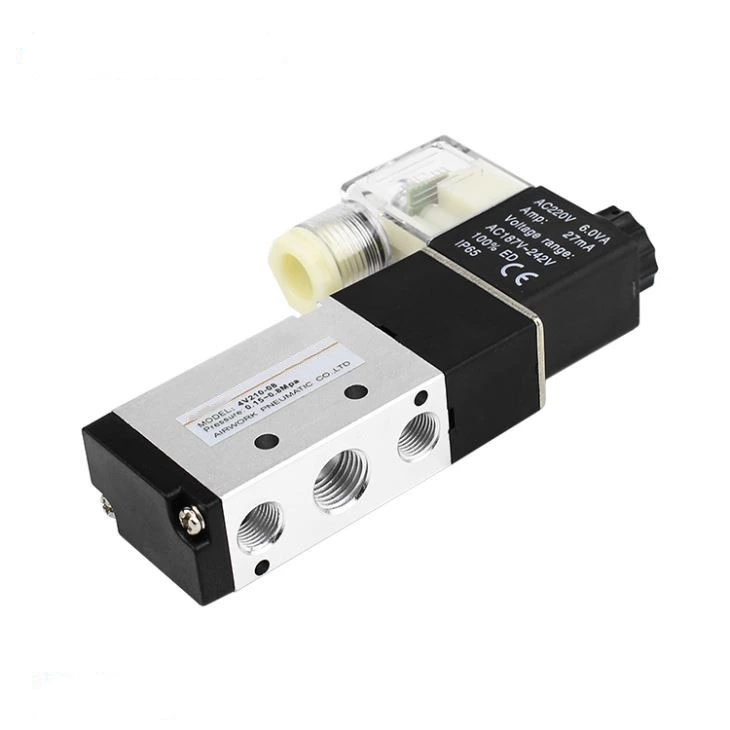

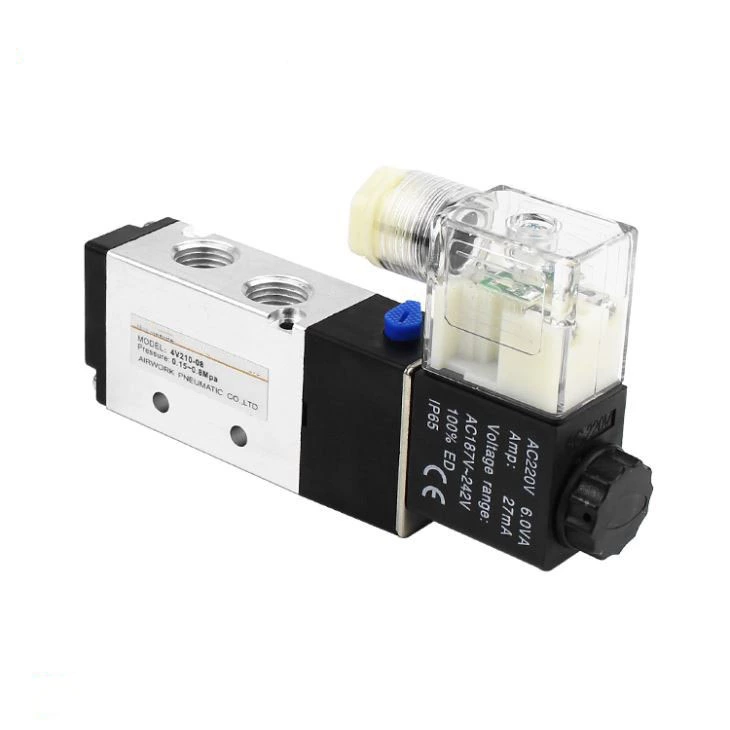

5 Way Air Solenoid Valve

There are closed chambers in 5 way air solenoid valve. There are through holes in different positions. Each hole connects different oil pipes. The piston is in the middle of the chamber and two electromagnets are on both sides. The magnet coil electrifying valve body on either side will be attracted to which side. Different oil drain holes will be opened or closed by controlling the movement of the valve body. The oil inlet holes are often opened, and the hydraulic oil will enter different oil drain pipes and then pass through them. The pressure of oil drives the piston of the cylinder, the piston drives the piston rod, and the piston rod drives the mechanical device. In this way, the mechanical movement is controlled by controlling the current cut off of the electromagnet.
