SH-300 connected with PLC or other intelligent controllers with COM port communication function Human-Machine Interface Text Panel
- Model:
- SH-300

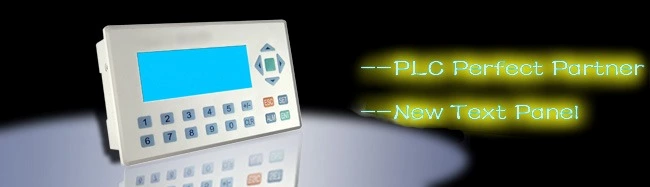

SH-300 Text Panel is a new product launched independently by ELECTRONIC CO. It is mainly used to be connected
with PLC or other intelligent controllers with COM port communication function as a small Human-Machine Interface.It can
monitor, set, modify the data of the register and the status of the relay inside the PLC by configuring text,indicator,function
key, bar graphs and trend graphics elements etc. SH-300 has a Monochrome(yellow-green) 4.3"STN-LCD with multi-language
display.The project development software of SH300 is built on WINDOWS platform which is with friendly operation interface andeasy to learn.
Function Feature：
▲The project development software SH300 is built on WINDOWS platform, being able to edit several monitoring The project development software SH300 is built on WINDOWS platform, being able to edit several monitoring
screens and support multi-format graph.
▲The communication protocols will be downloaded into SH-300 Text panel together with the project files, so it
is unnecessary to edit the communication program in PLC separately
▲It can be connected with many PLCs for example Mitsubishi, Omron, Siemens, Panasonic, Delta etc.
▲With password protecting function
▲With alarm list function, real-time displaying the alarm information line by line
▲Having 14 keys, which can be defined as function keys, being easily operated, replacing some mechanical
keys on the control cabinet, with the number key function
▲Supporting several kinds of communication ports: RS232/RS422/RS485
▲STN-LCD display with backlight, displaying 24 characters×4 rows
▲With multi-language displaying function, with user-defined system prompting information, being convenient for
different demands
▲The front panel being up to IP65 Protection Level, waterproof, and greaseproof
Technical Data：
| ◆ Hardware specification | |
| Display screen | 4.3"STN - LCD Display screen |
| Resolution | 192 x 64 pixels |
| LCM life | With 25±2℃，65±10% RH over 50000 hours |
| Brightness | 60cd/m2 |
| Color | Monochrome(yellow-green) |
| Contrast | Adjustable resistor |
| Backlight | Long life yellow-green LED |
| Memory | 110KB Flash ROM |
| Communication Port | PC RS232& PLC RS485/422 & PLC RS232 |
| Function button | 14 freely configurable keys |
| Allowable power disruption | ≤20ms |
| Frame Dimension | 171.8×98.8×38.6mm |
| Display Dimension | 96×32mm |
| Installation hole Dimension | 165×85mm |
| Cooling Method | Natural air cooling |
| Weight | 260g |
| ◆ Electric specification | |
| Rated voltage | 12～24VDC±10%<300mA |
| Withstanding voltage test | 500V AC 1minute(between signal and GND) |
| Insulation resistance | Over 10M ohm @ DC500V（between signal and GND） |
| ◆ Ambient Requirement | |
| Operation ambient temperature | -10℃～60℃ |
| Operation ambient humidity | 20~90%（no condensation） |
| Storage temperature | -20℃～70℃ |
| Anti-jamming test | Voltage 1500Vp-p,pulse period 1us，continuing 1s |
| Vibration resistance | 10~25Hz(2G for 30 min, in any of X,Y,Z axis) |
| Degree of protection | IP65（the front panel） |
Unique language Editor：
SH300 offers a wide-open system information menu. User can redefine the system information menu freely .The
menu can be edited with other language, meanwhile ,you can change the position of the text according to your

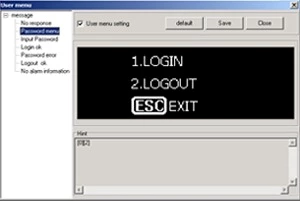

demand. User-defined window shows as follows:
SR intelligent controller is a new type of programmable controller with FBD (Function Block Diagram) programming, which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction).
In the design concept of SR series products, SR-WRT is used as a programming panel to program SR series hosts. On the other hand, SR-HMI is used as a powerful simple Human-Machine Interface to display the status of SR series, and SR-HMI itself is programmable. If you want to program SR by PC, free programming software “Super CAD” with powerful functions is provided.
SR can be used to combine voice modules of SR-VPA, SR-VPD and remote control modules of SR-RCA, SR-RCD; it can perform telephone remote controlling, wireless controlling, voice prompting and auto-dialing functions. Being used with expansion module (SR-20ERA, SR-20ERD, SR-20ETD, SR-20EGD), the input/output points can be expanded to satisfy your requirements. Mostly one SR machine can be connected with five extension modules at most, (it is better you connect with the 3 extension modules) and there are 122 I/O points (74 inputs and 48 outputs) at most.
SR intelligent controller is widely used in automatic control field of industry, agriculture, and automatic house control, which really comes into every part of people's daily life.
Unique language Editor ：
SH300 offers wide-open multi-language menu. which makes it possible that you can define the system information menu
roundly. you can edit the system information menu with many country languages for example Chinese、English、Japanese、
Korean、French 、German 、Spanish etc.The SH300 LangEditor is a very characteristic language editor,which supports user
to edit the menu with many country languages. The LangEditor software window shows as foiiows:
