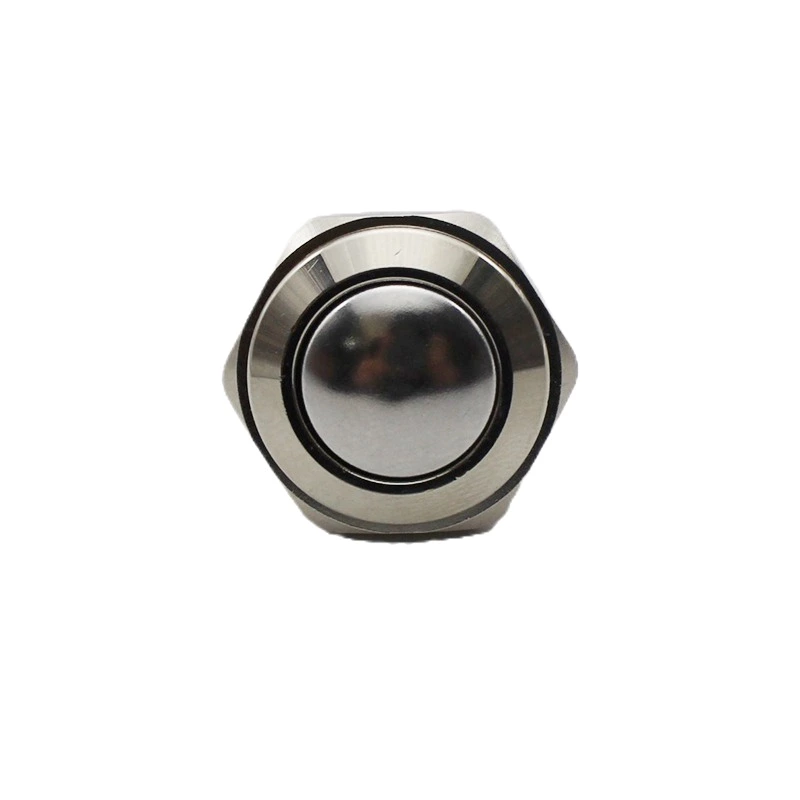

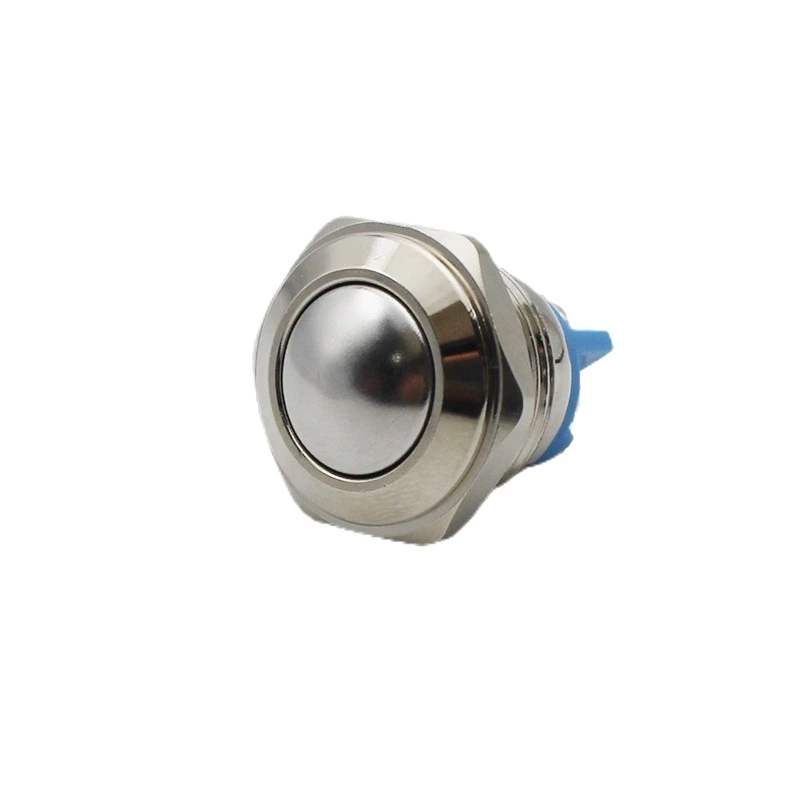

JS16B-10N 16mm metal push button domed momentary push button plated brass with screw terminals
- Model:
- JS16B-10/N
Features
-
16mm diameter
-
Switch Rating:2A/36VAC
-
Contact Configuration:1 NO
-
Operation Type:Momentary
-
The Front Shape:Domed
-
The Crust Material:stainless Steel
-
IP Degree:IP65
Dimensions
Technical Specifications
| Specification | JS16B-10/N | |
| The Front Shape | Domed | |
| Terminal Type | Screw Termlnls | |
| Switching | 1 NO | |
| Max.Switch Rating | 2A/36VDC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000MΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20℃~+55℃ | |
| Mechanical life | 1,000,000cycles | |
| Eictical life | 200, 000cycles | |
| Panel Thickness | 1~6mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | About 4N | |
| Operation Distance | About 1.5mm | |
| IP Degree | IP65 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Steel | |
| Base | PBT | |
