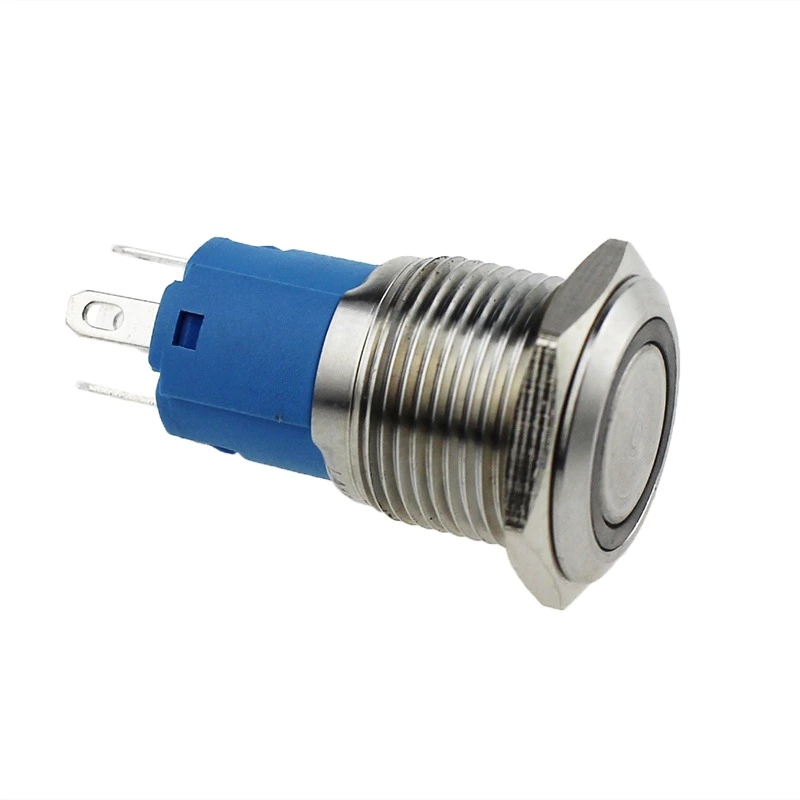

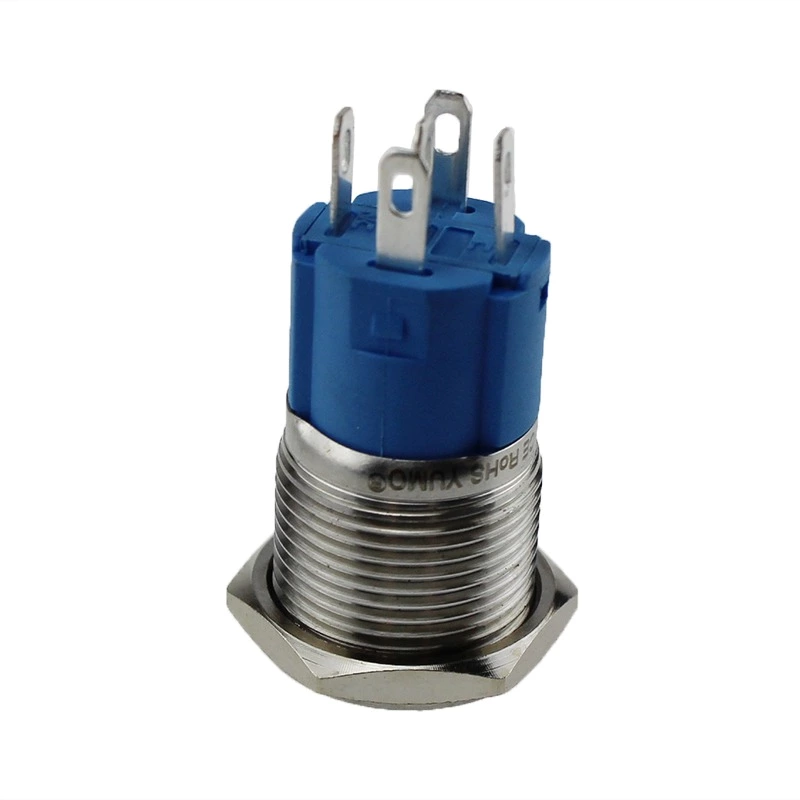

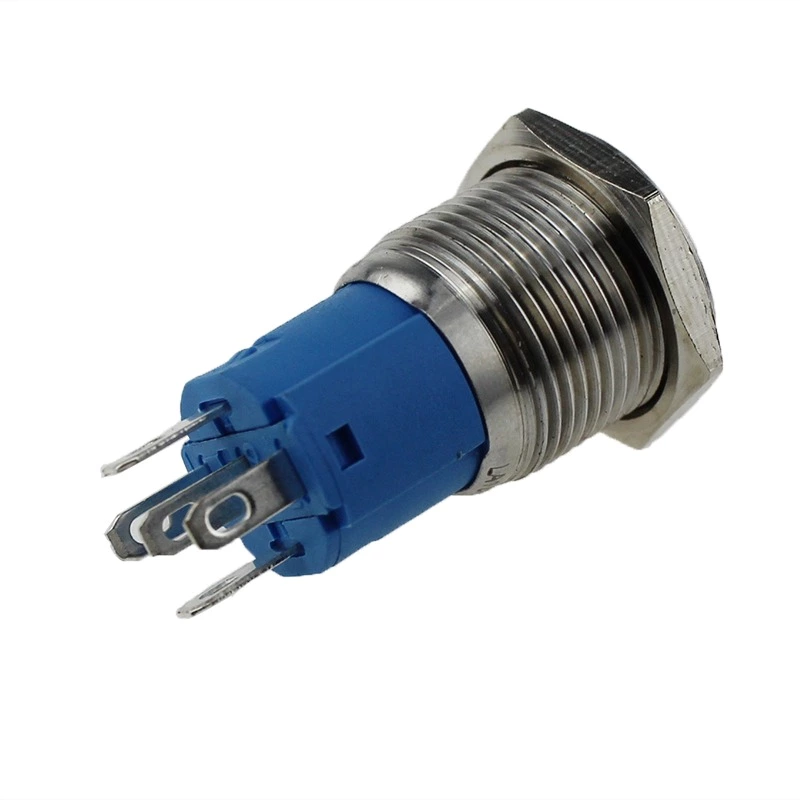

LA16AJSF Ip67 Waretproof White Led Ring Illuminated Metal Push Button
- Model:
- LA16AJSF11Z/E/12V/S
Features:
-
16mm diameter
-
Switch Rating:3A/250VDC
-
Contact Configuration:1NO 1NC/2NO 2NC
-
Operation Type:Momentary/Alternate
-
The Front Shape: Flat Round
-
The Crust Material:Stanless Steel/Brass(Nickel Plated )
-
Ring lluminated
-
IP Degree:IP40/67

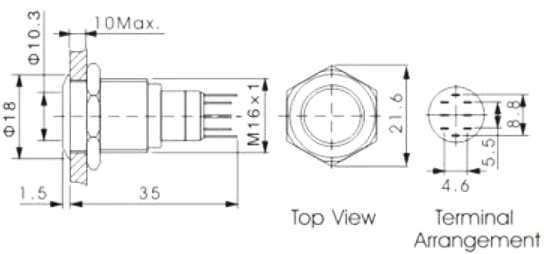

Dimemsions:
Technical Specifications
| Specification | LA16JSF-E | |
| The Front Shape | Flat Round | |
| Terminal Type | Pin Terminal(1.8x0.4mm) | |
| Switching | NO.3 | |
| Max.Switch Rating | lth:3A Ui:250VAC | |
| Contact Resistance | ≤50mΩ | |
| Insulating Resistance | ≥1000MΩ | |
| Dielectic Strengh | 2000VAC | |
| Operating Temp | -20℃~+55℃ | |
| Mechanical life | 1,000,000cycles | |
| Eictical life | 50, 000cycles | |
| Panel Thickness | 1~10mm | |
| Tortque | 5~ 14Nm | |
| Operation Pressure | 2.5~4N | |
| Operation Distance | About 2.8mm | |
| IP Degree | IP40/IP67 | |
| Material | Contrct | Silver Alloy |
| Button | Stanless Steel | |
| Body | Stanless Stee/Brass(Nickel Plated) | |
| Base | PBT | |
| LED Specl | Type | Dot lluminated(LED) |
| Rated voltage | 6V/12V/24V/36V/110V/220V | |
| Color | R G Y O B W | |
| Life | 40000 hours | |
