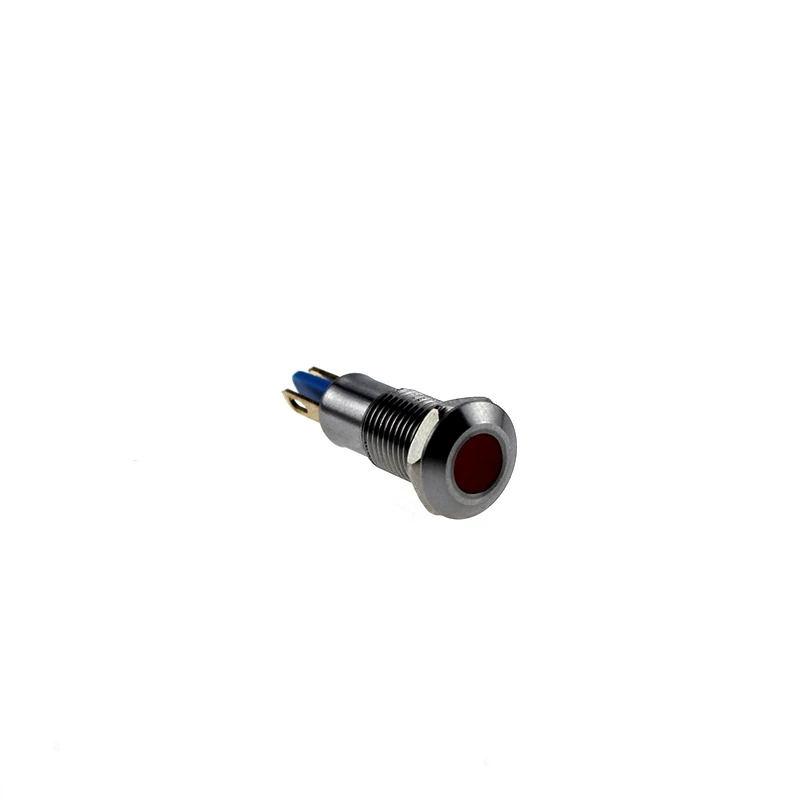

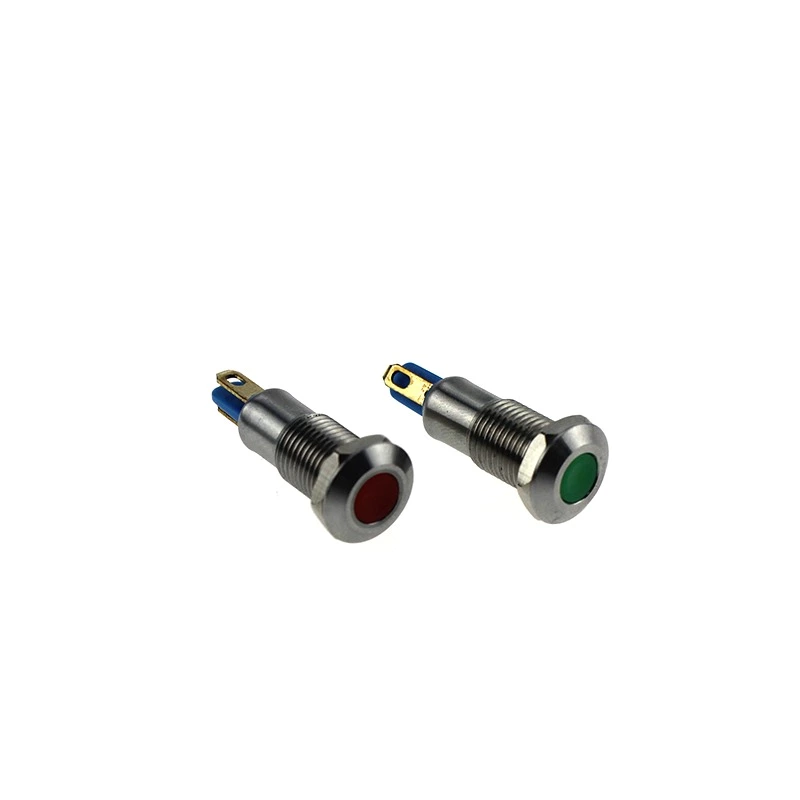

Metal Indicator Light Series LED ABI08C-P1 waterproof Indicator Light
Appearance design beautiful
By highlighting the long life-span LED
Internal resistance
Ultra short installation size, installation diameter is complete
| ABI | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
| Single code | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
| 08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
| 12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
| 16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
| 19mm | C:Power mark | W:White | 24V | ||||
| 22mm | 00:Four bit terminal | 36V | |||||
| 25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
| 110V | |||||||
| P:Plastics | 120V |
| Parameter | ABI08C-P1 |
| Diameter | 8mm |
| Type | LED |
| Voltage Rating | ≤220V |
| Rated Current | About 15mA |
| The Crust Material | Chromium plated brass |
| IP Degree | IP68, IK10 |
