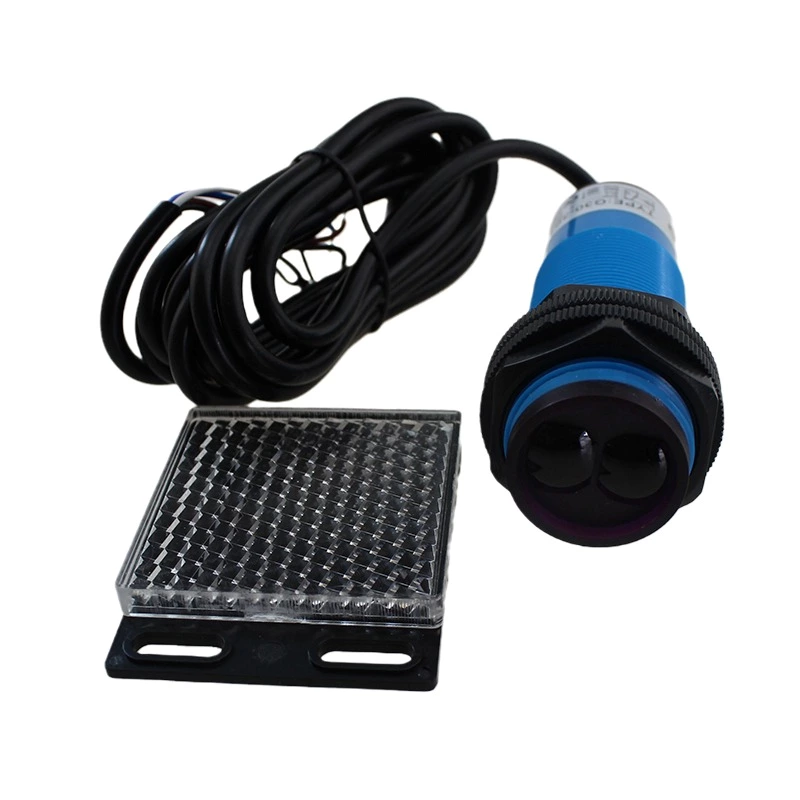

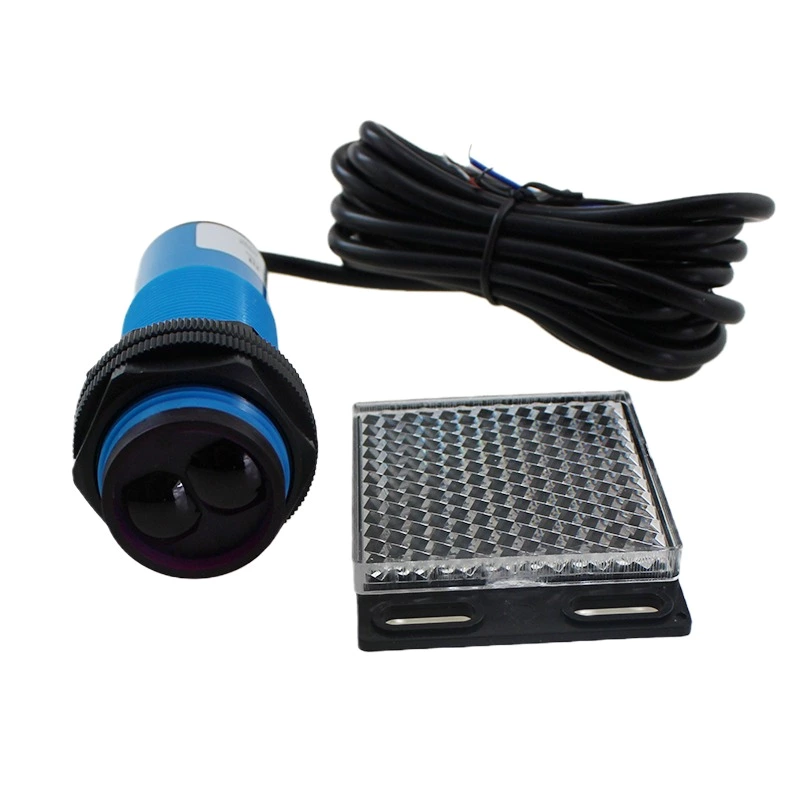

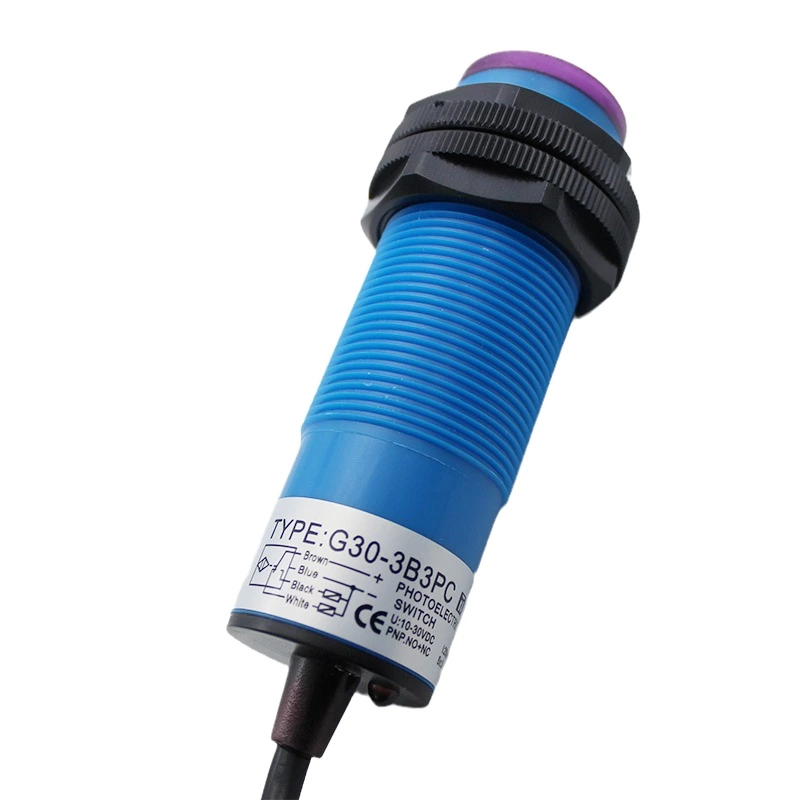

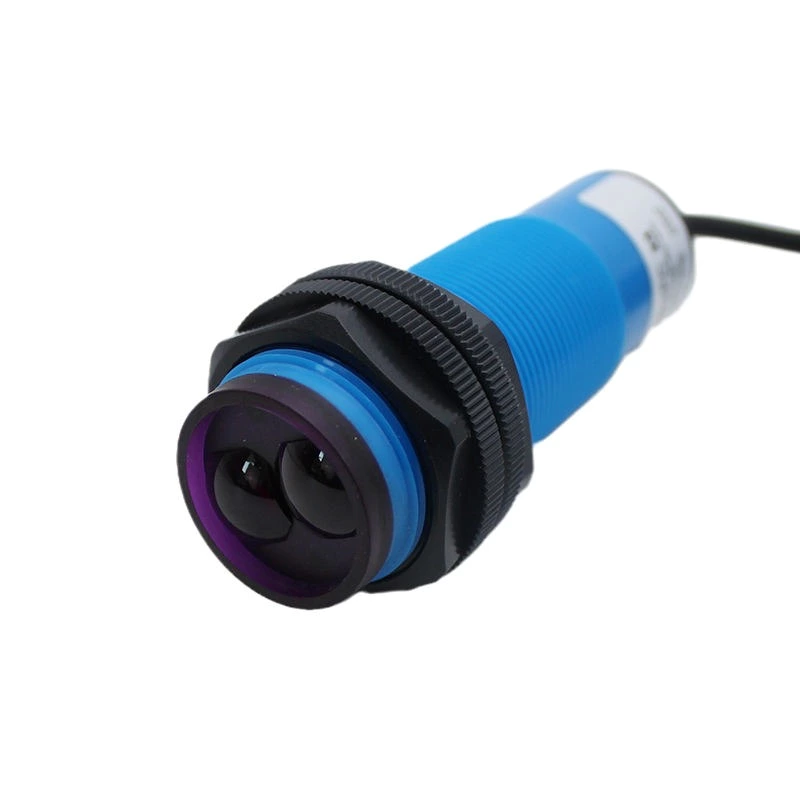

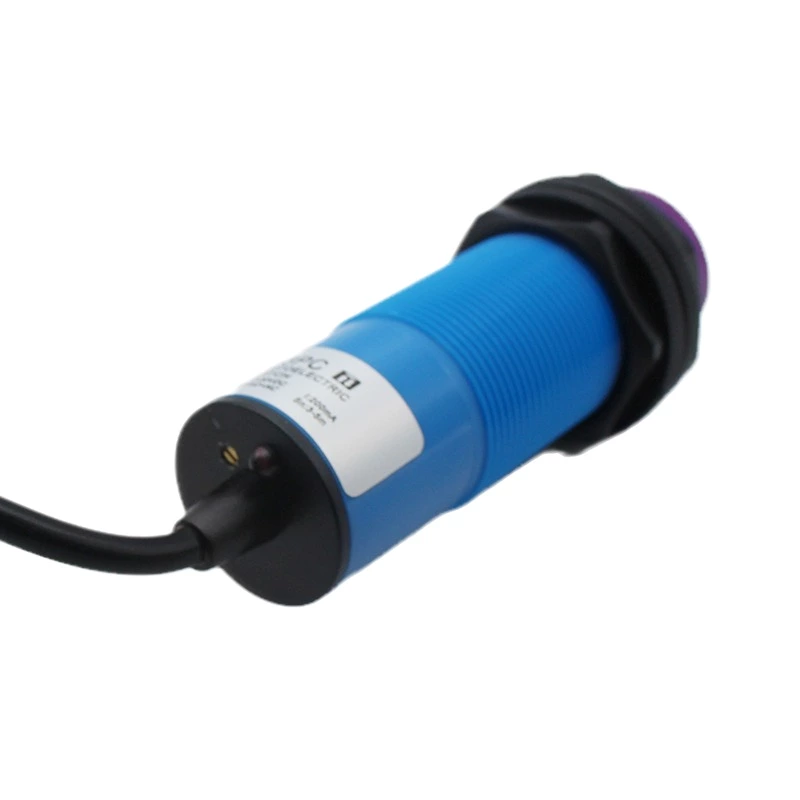

G30-3B3PC Proximity Sensor Photoelectric sensor Photocell Sensor
The working principle of the photoelectric switch is that when the beam emitted by the emitter is blocked or partly reflected by the object, the beam receiver whereby makes adjustment and reacts.
Technical Parameter
| Structural category | Photoelectric switch | |||||
| Outward appearance code | G18 | G30 | G50 | |||
| Outward appearance illustration | ||||||
| Diffuse type | Detection distance | 10cm | 20 -100cm | 30cm 50cm | ||
| 10- 30 VDC | NPN | NO | G18 -3A 10NA | G30 -3A 70NA | G50 -3A 30NA | |
| NC | G18 -3A 10NB | G30 -3A 70NB | G50 -3A 30NB | |||
| NO+NC | G18 -3A 10NC | G30 -3A 70NC | G50 -3A 30NC | |||
| PNP | NO | G18 -3A 10PA | G30 -3A 70PA | G50 -3A 30PA | ||
| NC | G18 -3A 10PB | G30 -3A 70PB | G50 -3A 30PB | |||
| NO+NC | G18 -3A 10PC | G30 -3A 70PC | G50 -3A 30PC | |||
| 90~250 VAC | SCR Controllable Silicon | NO | G18 -2A 10LA | G30 -2A 70LA | G50 -3A 30LA | |
| NC | G18 -2A 10LB | G30 -2A 70LB | - | |||
| Relay output | - | G30 -2A 70JC | G50 -3A 30JC | |||
| Retrore-flictive | Detection distance | 2m | 3 -5m | 4m | ||
| 10- 30 VDC | NPN | NO | G18-3B2NA | G30-3B3NA | G50-3B4NA | |
| NC | G18-3B2NB | G30-3B3NB | G50-3B4NB | |||
| NO+NC | G18-3B2NC | G30-3B3NC | G50-3B4NC | |||
| PNP | NO | G18-3B2PA | G30-3B3PA | G50-3B4PA | ||
| NC | G18-3B2PB | G30-3B3PB | G50-3B4PB | |||
| NO+NC | G18-3B2PC | G30-3B3PC | G50-3B4PC | |||
| 90~250 VAC | SCR Controllablerollable Silicon | NO | G18-2B2LA | G30-2B3LA | - | |
| NC | G18-2B 2LB | G30-2B 3LB | - | |||
| Relay output | - | G30-2B3JC | - | |||
| Tough beam | Detection distance | 5m | 10m | 5m | ||
| 10- 30 VDC | NPN | NO | G18 -3C 5NA | G30 -3C 101NA | G50 -3C 5NA | |
| NC | G18 -3C 5NB | G30 -3C 101NB | G50 -3C 5NB | |||
| NO+NC | G18 -3C 5NC | G30 -3C 101NC | G50 -3C 5NC | |||
| PNP | NO | G18 -3C 5PA | G30 -3C 101PA | G50 -3C 5PA | ||
| NC | G18 -3C 5PB | G30 -3C 101PB | G50 -3C 5PB | |||
| NO+NC | G18 -3C 5PC | G30 -3C 101PC | G50 -3C 5PC | |||
| 90~250 VAC | SCR Controllable Silicon | NO | G18 -2C 5LA | G30 -2C 101LA | G50 -3C 5LA | |
| NC | G18 -2C 5LB | G30 -2C 101LB | - | |||
| Relay output | - | G30 -2C 101JC | G50 -3C 5JC | |||
| DC/SCR/Control output | DC:200mA, AC:300mA | DC:200mA, AC:300mA , relay: 2A | ||||
| DC/AC Consumption current | DC15mA, AC:10mA | |||||
| DC/AC Response time | DC2mS, AC20mS | |||||
| Directional angle | 3°-10° | |||||
| Directed object | <> Transparent or opaque body | |||||
| Working environment temperature | -25C degree~ + 55 C degree | |||||
| Intensity of illumination of working environment | Sunlight under 10000LX incandescent lamp under 3000LX | |||||
| Shell material | Plastic | |||||
| Protection grade | IP66 | IP66 | IP54 | |||
