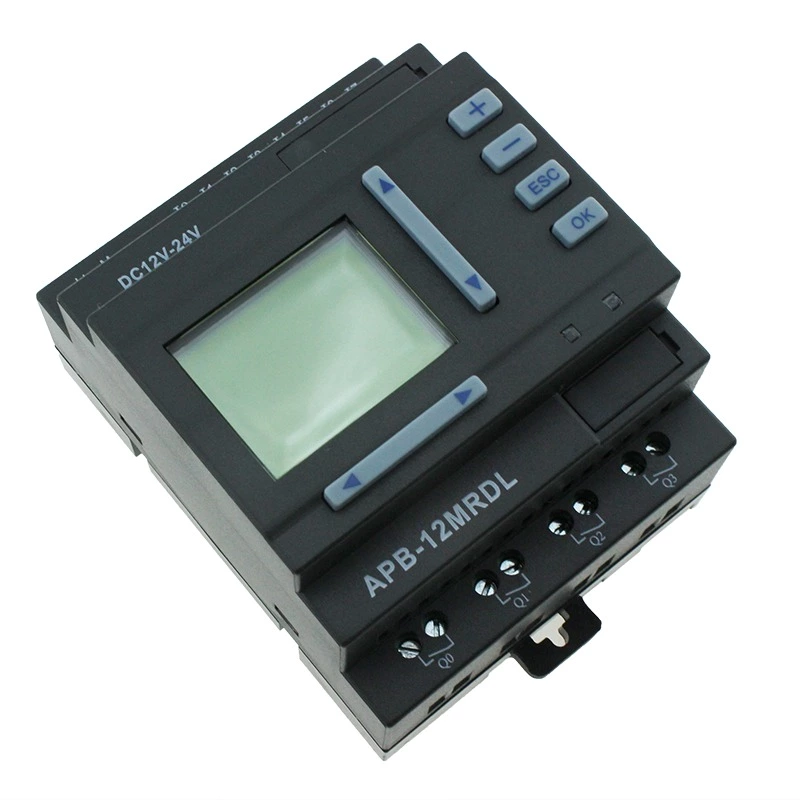

APB-12MRDL 8 points digital input plc controller programmable logic controller
- Model:
- APB-12MRDL
APB(Program m able Block) intelligent controller is a new type of program m able controller, being program m ed by the use of Function Block Diagram s. The program m ing of APB is sim pler and easier to learn than that of a conventional PLC, which uses ladder diagram s and associated instructions. The design concept for APB series is to program the APB series m ain m achine and APB-H M I with the provided free program software, free from connecting to another H M I. APB-H M I is able to display the input/output status of APB series, the set value and running value of tim er, counter, and analog function blocks, which facilitates the operator to m onitor and control of PLC running status at real tim e. Currently, APB is widely used in m any fields of industry, com m erce, m ining, agriculture, hom e autom ation etc.

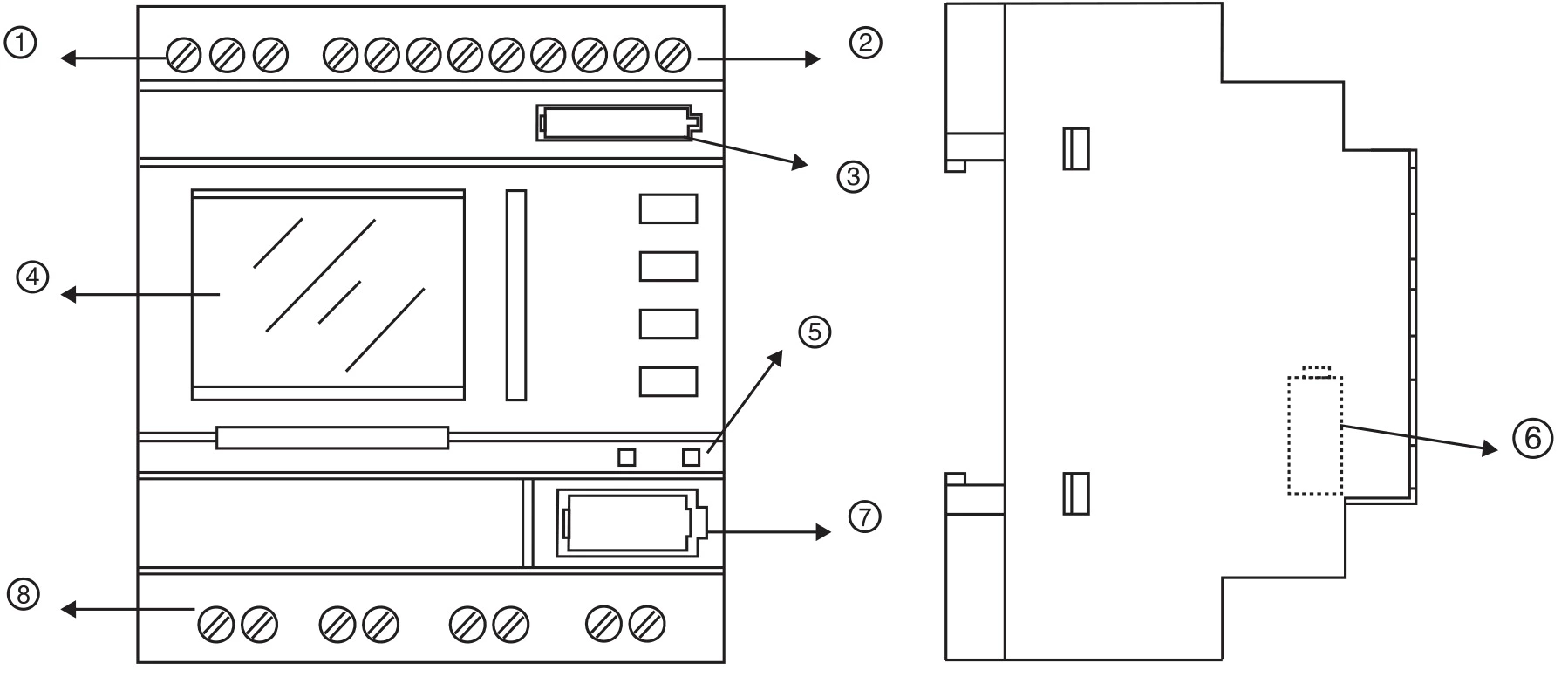

Structure of APB Series
1.Input Power (AC or DC)(AC110-220V),(DC12-24V)
2.Input W iring Term inal
3.Real-tim e clock battery slot
4.M ini H M I (APB-H M I)
5.Power supply indicator in left \CPU run indicator in right
6.Extend m odule com m unication Interface
7.Software Com m unication Interface
8.Output W iring Term inal(Relay output type or transistor output type)
Features
-
Main module: 12\22\24 points; Extension module: 22 points; It is flexible for extending, and the optimal configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;
-
Program memory capacity: 320 FBDs, EEPROM;
-
It is allowed to place a Li-ion battery to power the clock;
-
Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 0/4-20mA and 2 analog outputs 0/4-20mA;
-
High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 50KHZ;
-
MODBUS protocol, and can be connected to SH-300 (Text Panel);
-
New function blocks: pulse width modulation (PWM), pulse output (PTO), ACC, SMS and analog calculation etc.
Technical Parameters
| Model No. | APB-12MRAL |
| Surge Immunity | 2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5) |
| Electrostatic Discharge (outer casing) | ±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5) |
| Ambient Temperature | -10℃~+55℃ |
| Storage Temperature | -40℃~+70℃ |
| Ambient Humidity | 5%~95%RH |
| Degree of Protection | IP20(Non-waterproof) |
| Installation | Fixing with M3 screws or Standard DIN rail mounting |
| Dimensions (mm) | 71*99*58.5 |
| Programming Language | FBD |
| Points | 12 points |
| Memory Capacity | 320 FBDs |
| Filtering Duration of Input Signal | It can be set to improve the stability of signal |
| Real-time Clock | 160h,can place a Li-ion battery if it is necessary |
| Password Protection | Multiple passwords protection |
| High-speed Operation | At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz |
| Analog Operation | At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA |
| Power Failure Protection | Yes |
| Simulate Monitoring | Yes |
| Communication Interface | TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces |
| Baud Rate | 9600bps |
| Communication Protocol | MODBUS RTU |
| Power Supply | |
| Rated Voltage | DC12-24V |
| Permissible Range | DC11-28V |
| Power Consumption | 3.5W |
| Digital Input | |
| Input Type | NPN/PNP |
| Input Signal 0 | DC0-5V |
| Input Signal 1 | DC8.5-28V |
| Isolation | Non-isolation |
| Isolated Group | |
| Isolated Voltage | |
| Digital Output | |
| Output Type | Relay |
| Rated Voltage | 24VDC/220VAC |
| Isolation Method | Relay isolation |
| Analog Input | |
| Input Type | DC0-10V |
| A/D Conversion | 12 bits |
| Analog Output | |
| Isolation | Non-isolation |
| High-speed Operation | |
| Input Type | 4 inputs /10KHz |
|
Support single-phase counter and two-phase counter |
|
Related Products
| APB-12MRD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points relay output |
| APB-12MTD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points NPN transistor output Q2,Q3 can be high-speed output ports |
| APB-12MGD(L) | DC12V-24V | 8 points digital input (can be used as analog inputs); I4-I7 can be high-speed ports | 4 points PNP transistor output Q2,Q3 can be high-speed output ports |
| APB-22MRA(L) | AC100V-240V | 14 points input | 8 points relay output |
| APB-22MRD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points relay output |
| APB-22MTD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points NPN transistor output Q2,Q3 can be high-speed output ports |
| APB-22MGD(L) | DC12V-24V | 14 points digital input (the first 12 points can be analog inputs); I4-I7 can be high-speed ports | 8 points PNP transistor output Q2,Q3 can be high-speed output ports |
| APB-24MRDL | DC12V-24V | 2points for current input, and 14points for digital input (the first 12 points can be 0~10V analog inputs); I4-I7 can be high-speed ports | 6 points relay output + 2 analog outputs |
| APB-22ERA | AC100V-240V | 14 points digital input | 8 points relay output |
| APB-22ERD | DC12V-24V | 14 points digital input | 8 points relay output |
| APB-22ETD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
| APB-22EGD | DC12V-24V | 14 points digital input | 8 point NPN transistor output |
