AF-20MR-D DC power supply 6 point DC input (analog) 4 point relay output Micro PLC mini plc programmable logic controller PLC:
| Performance&Features | |
| This model is a DC power supply, with 6 point DC input (analog), 4 point relay output | |
| Exquisite and compact design | |
| Multi-functional, easy operating, convenient, easy learning | |
| Technical Index | |
| Operation temperature： ：-20℃-70℃ | Timers ：127 |
| Storage/Transportation -40℃-70℃ | Counters ：127 |
| Protection：IP20 | Function blocks : 127 |
| Interference Regulation: EN55011(B Class) | RTC time intervals：127 |
| RTC accuracy: MAX ±5S/day | Storage capacity：64K |
| Certificate：CE | Insulation Intensity: IEC1131 |

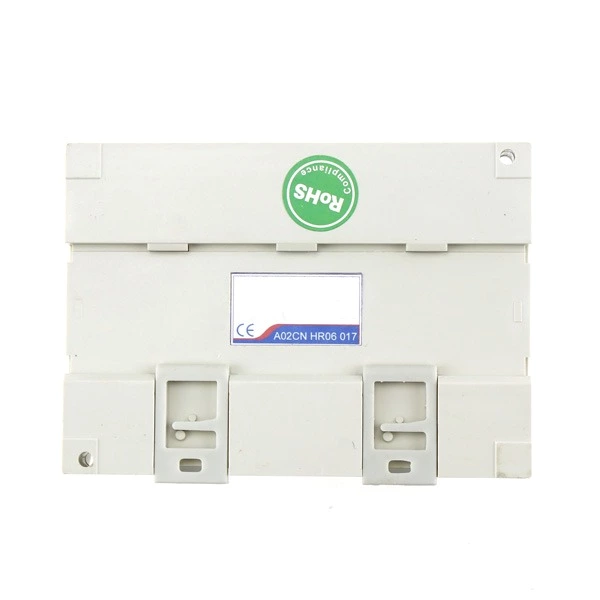

| Installation: Use a standard DIN rail or screw for installation | Dimensions：90*126*58（Unit：mm ） |
| Power supply | |
| Rated voltage：DC12/24V | Main voltage operation range： AC10-28V |
| DC24V consumption： Typical 200mA | (Output full-load)：Typical 5W |

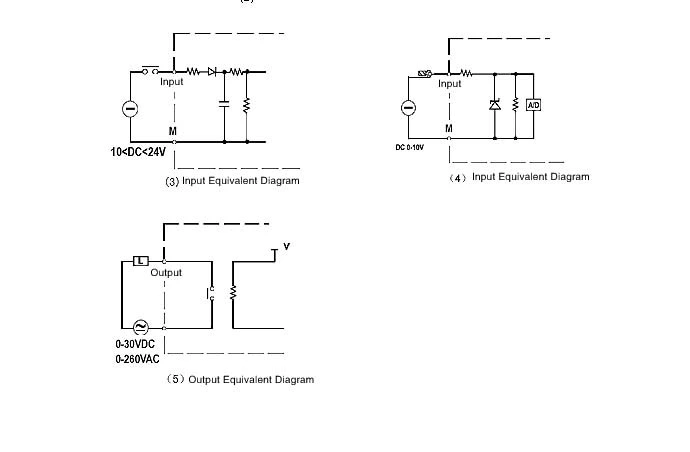

| Digital input | |
| Signal 0：DC 0-5V | Input current：<0.4mA |
| Signal 1：DC 10-24V | Input current：<1mA |
| Analogue input | |
| Signal 1:0-10V | Input current:<0.3mA |
| Outputs(Digital output) | |
| Output type: Relay output | Wiring insulation: Yes |
| Points per set：1 | Continuous current max value：MAX 10A |
| Switch frequency | |
| Mechanism： 10Hz | Resistor load： 2Hz |
| Inductive load： 0.5Hz | |
FAB Intelligent Controller Series is a new programmable controller launched by, with the programming by FBD (Function Block Diagram) , which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction). In the design concept of FAB series products, traditional separated controller of PLC is combined with the writer on which the program can be written directly by using the function keys on the LCD front panel in order to reduce the cost and bring convenience to users. FAB is very compact and light-weighted, especially suitable for internal installation usage.
In addition, FAB intelligent controller series can perform the local and remote Internet communication and monitoring. And FAB can be used with voice module to perform telephone remote control, voice prompting, auto-dialing and other functions. At present, the FAB is widely used in various areas such as industry, agriculture and automatic house control. It can be used almost everywhere

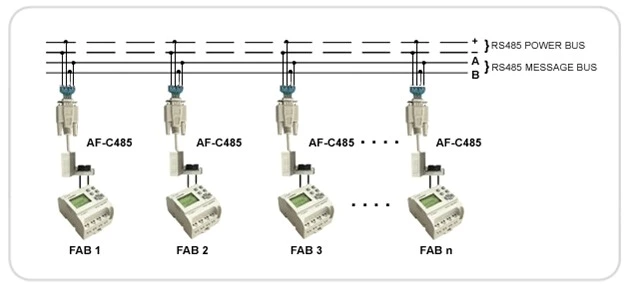

Powerful Network Function
Short distance network wiring (Within 1.2KM)
