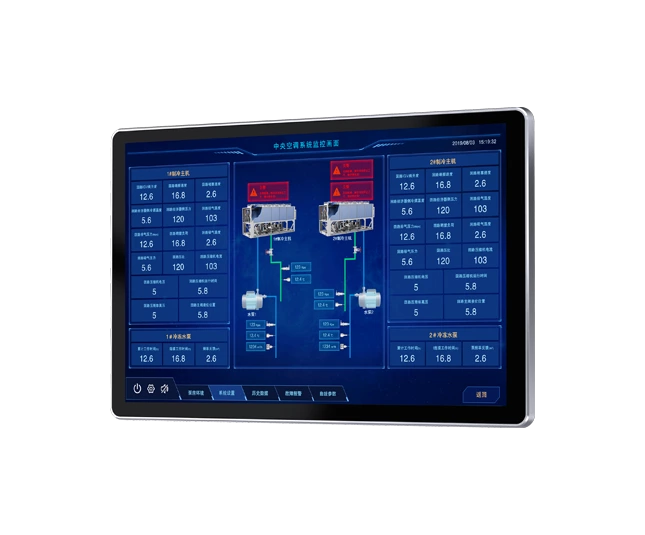

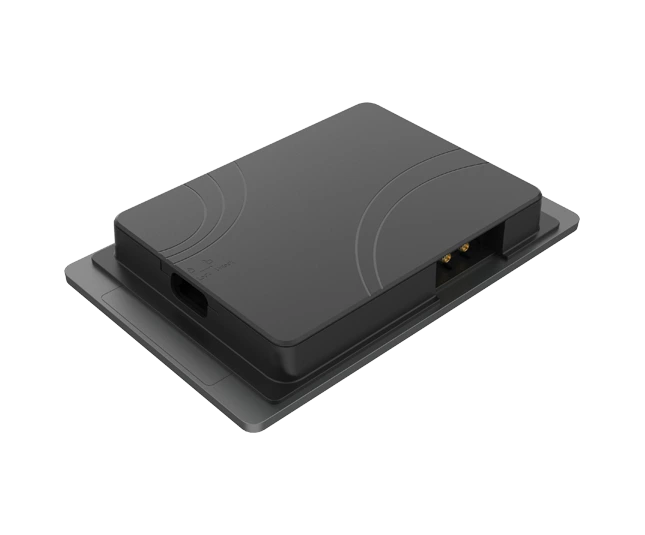

Flexem F110 HMI 10.1” 16:10 TFT LCD Multi-touch Capacitive Touchscreen
- Model:
- F110
- Brand:
- FLEXEM
-
Hardware
-
Display 10.1” 16:10 TFT LCD LCD Viewing Angles (T/B/L/R) 85'/85'/85'/85' Resolution 800×1280 Colors 24-bit Brightness 400 cd/m² Touch Panel Capacitive touchscreen CPU 4-core 1.2G ARM Cortex-A7 processor Memory 4GB EMMC + 256MB DDR3 Ethernet Port 1* 10M/100M self-adaptive USB Port 1* USB Type-C 2.0 port, 1* USB host 2.0 port Program Download Method Type-C / Flash drive / Ethernet COM Port COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232 Network Frequency Band LTE FDD: B1/B3/B5/B8; LTE TDD: B38/B39/B40/B41 Connectivity Option Ethernet / 4G (Mobile/Unicom/Telecom) Speaker Built-in
-
Electrical
-
Rated Power < 10W Rated Voltage DC24V, operational range: DC 9V~28V Power Protection Lightning surge protection Power Interruption Tolerance < 5mS Certification EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV
-
Environmental
-
Operating Temperature -10~60℃ Storage Temperature -20~70℃ UV Resistance Operating in high UV environment is prohibited (e.g., in direct sunlight) Environmental Humidity 10~90%RH (non-condensing) Vibration Endurance 10~25Hz (X/Y/Z direction 2G/30 minutes) Cooling Method Natural air cooling
-
Mechanical
-
Protection Level Front: IP65 (with flush panel cabinet installation), Rear: IP20 Enclosure Material Aluminum alloy + Engineering plastic Cutout Dimensions 138mm×192mm (vertical) / 192mm×138mm (horizontal) Dimensions 158mm×249mm×30mm Weight About 900g
-
Software
-
VPN Transparent Transmission Available Data Monitoring Limit 300 Alarm Notification Limit 100 Historical Data Limit 100 Edge Computing Limit 30 Network Protocol Supports over 100 industrial device protocols Managment and Maintenance Supports remote firmware upgrade; supports import and export of configuration file; supports configuration update via cloud download
