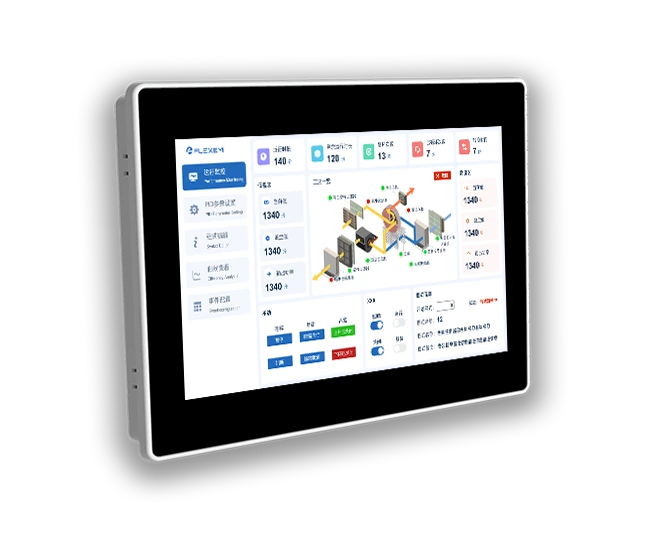

Flexem FPad916R001 HMI 15.6” 16:9 TFT LCD Resistive Touchscreen

Name: Flexem FPad916R001 HMI 15.6” 16:9 TFT LCD Resistive Touchscreen
SKU: 00919
Rating: 4.8 (0 reviews)

Inquiry

Display	15.6” 16:9 TFT LCD
LCD Viewing Angles (T/B/L/R)	85'/85'/85'/85'
Resolution	1920×1080
Colors	24-bit
Brightness	250 cd/m²
Touch Panel	4-wire industrial resisitve touchscreen
CPU	Integrated Intel Celeron J3455 4-core 1.50GHz Processor, up to 2.30GHz
Memory	8GB DDR3L, supports 1333/1600/1866 MHz
Storage	128GB, SATA SSD

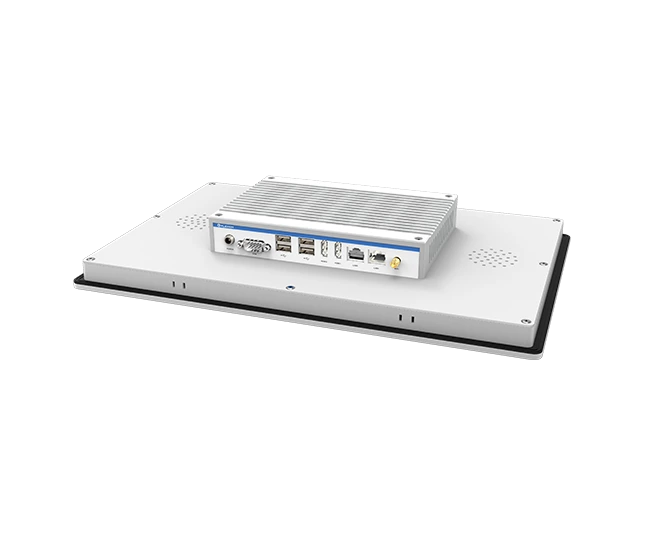

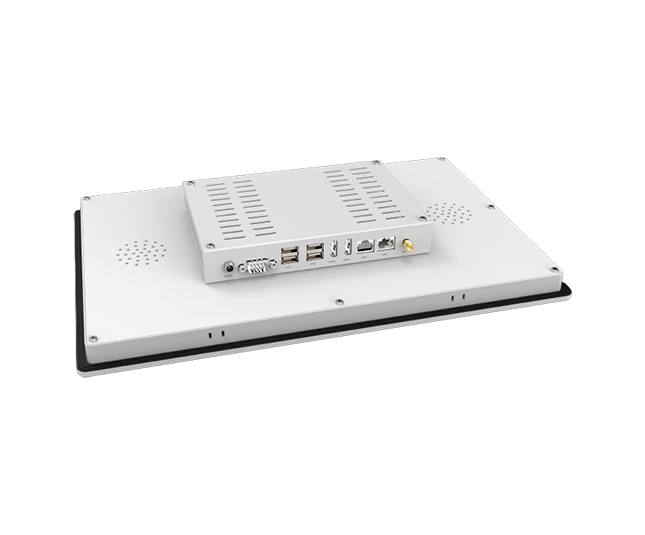

Ethernet Port	LAN1: RJ45, 10/100/1000 Mbps; LAN2: RJ45, 10/100/1000 Mbps
USB Port	4* USB 3.0 (Type-A, Rear I/O)
Display Port	2* HDMI (upright 90° Type-A): up to 3840x2160@30Hz
Serial Port	1* RS232 (COM1, Full lanes, DB9/M)
Wi-Fi	Optional
Speaker	Built-in
Operating System	Linux

Rated Power	< 60W
Rated Voltage	DC12V/5A
Power Protection	Isolated power adapter with lightning surge protection
Power Interruption Tolerance	< 5mS
Certification	EN61000-6-2:2005 and EN61000-6-4:2007 standards certified, RoHS certified, lightning surge ± 1 kV, group pulse ± 2 kV, electrostatic contact 4 kV, air discharge 8 kV

Operating Temperature	0~50℃
Storage Temperature	-20~60℃
UV Resistance	Operating in high UV environment is prohibited (e.g., in direct sunlight)
Environmental Humidity	10~90%RH (non-condensing)
Vibration Endurance	10~25Hz (X/Y/Z direction 2G/30 minutes)
Cooling Method	Natural air cooling

Protection Level	Front: IP65 (with flush panel cabinet installation), Rear: IP20
Enclosure Material	Non-ferrous metal alloy

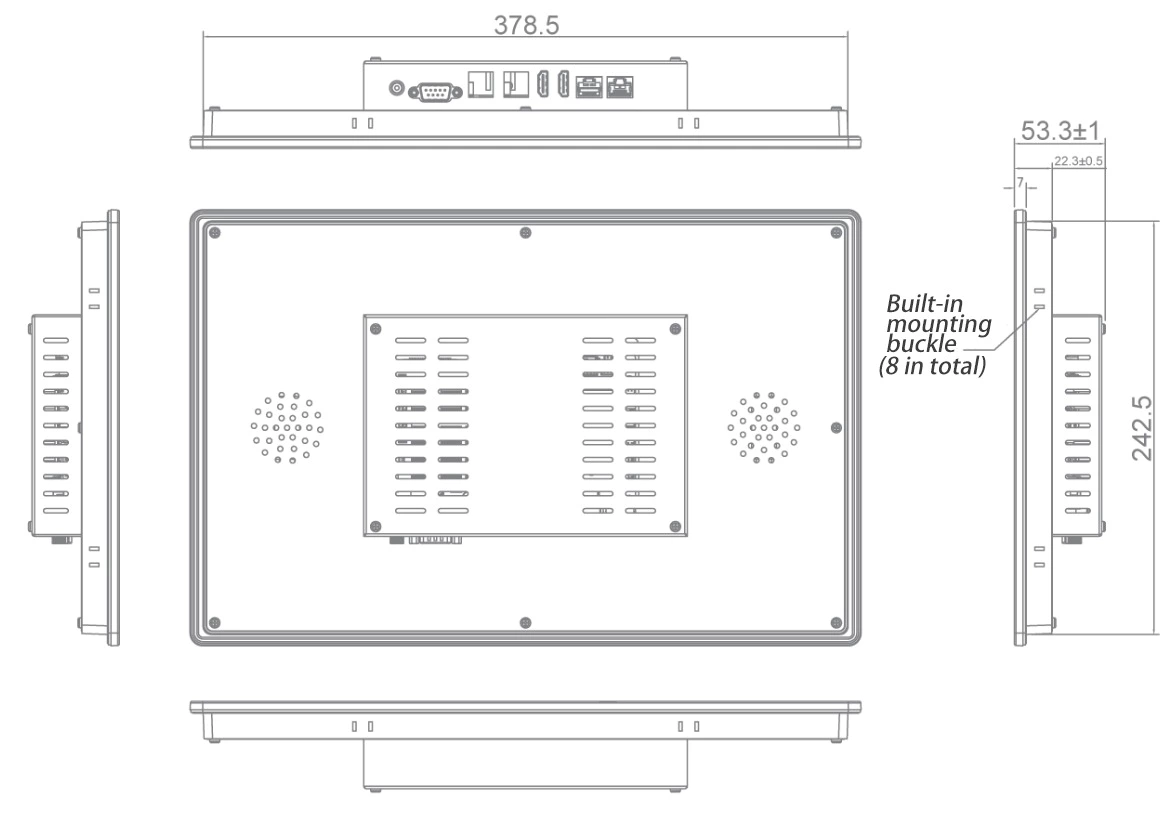

Cutout Dimensions	380mm×245mm
Dimensions	394mm×256mm×53.3mm
Weight	About 2950g
