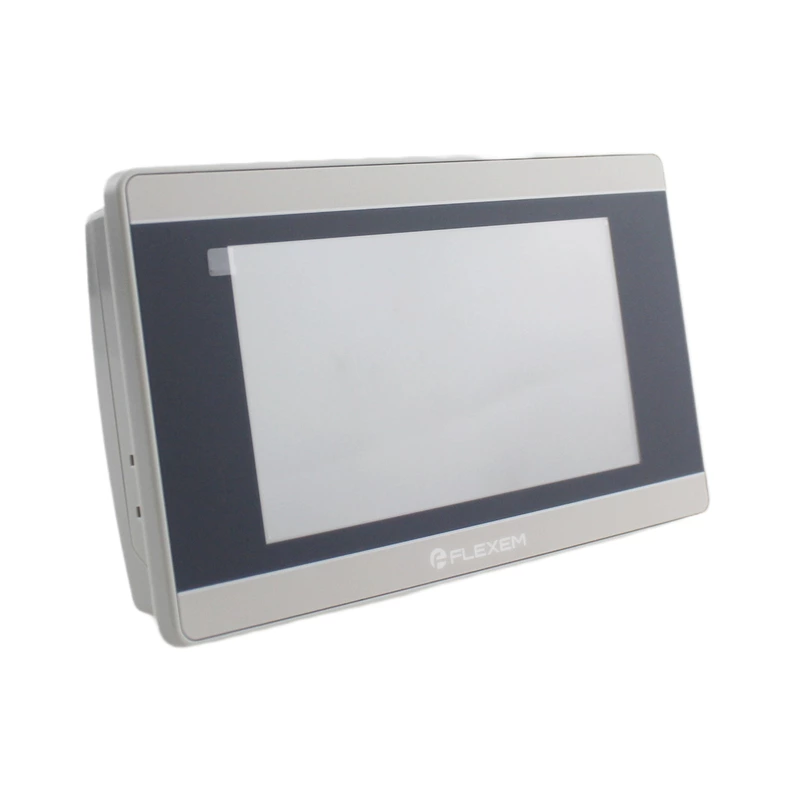

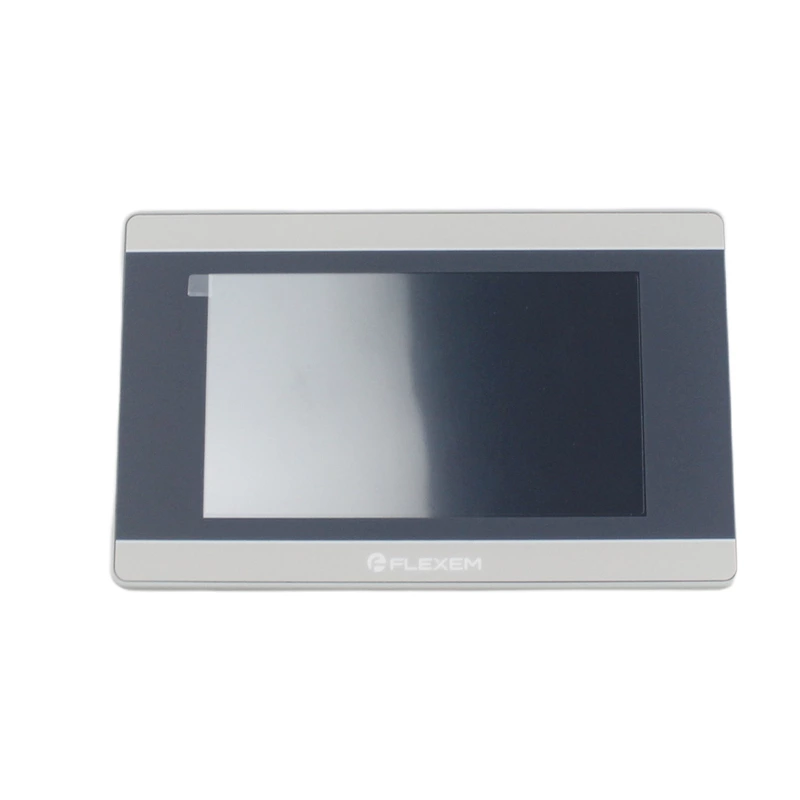

Flexem FE3043H HMI 4.3” 16:9 TFT LCD Resistive Touchscreen Resolution 800×480 Human Machine Interface
- Model:
- FE3043H
- Brand:
- FLEXEM
Product Specification
| Hardware Parameter | Display screen | 4.3’16:9 TFT LCD screen |
| Resolution | 800×480 | |
| Color | 16- bit | |
| Brightness | 250 cd/m² (Adjustable up to 275cd/m²） | |
| Backlight | LED | |
| LCD life | 50000 h | |
| Touch screen | 4-wire industrial resistance touch screen | |
| CPU | 600MHz ARM | |
| Memory | 64MB RAM+128MB Flash | |
| RTC | Yes | |
| Ethernet | No | |
| SD card | No | |
| USB port | One Type-C OTG interface | |
| Program download mode | USB Slave Usb flash drive (transfer cable required) | |

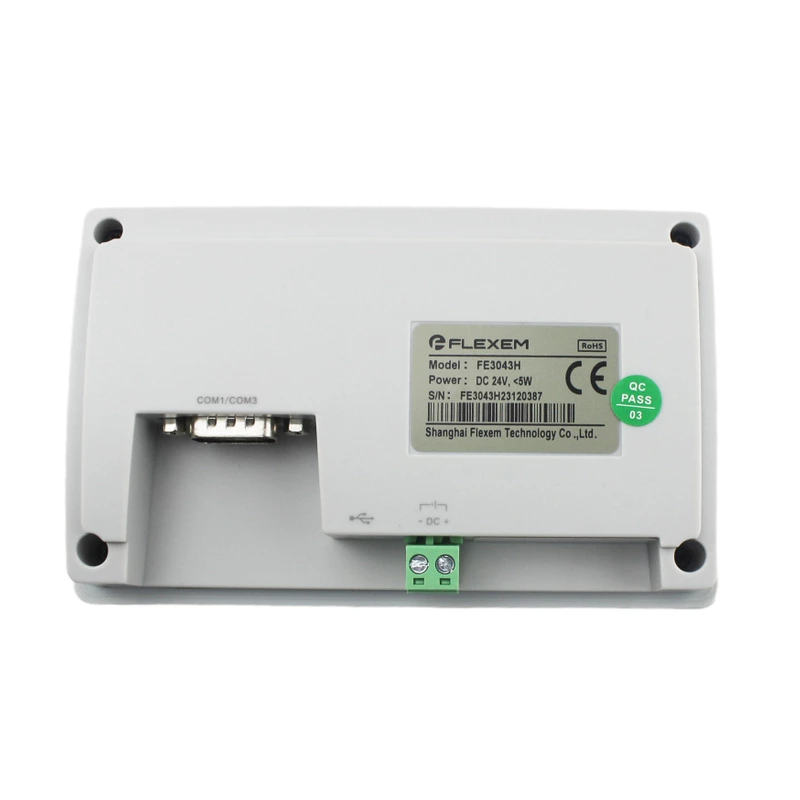

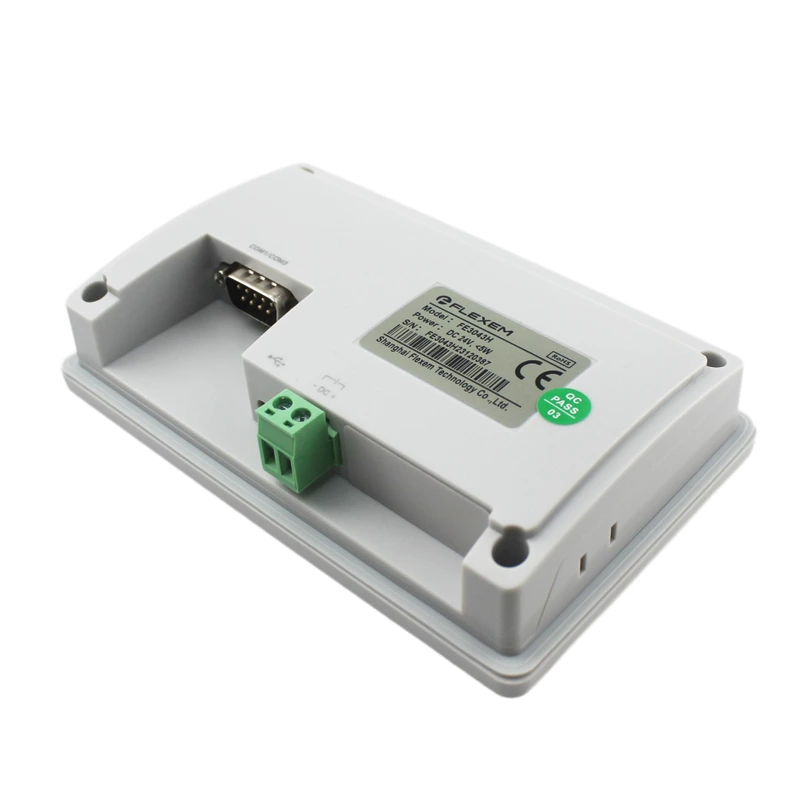

| Serial communication port | COM1：RS232/RS485/RS422； | |
| Liquid crystal viewing Angle （T/B/L/R） | 80'/80'/80'/80'/ | |
| Electrical Specification | Rated power | < 2.5W |
| Rated voltage | DC24V，Workable range DC 9V~28V | |
| Power supply protection | Lightning surge protection | |
| Allowable loss of power | < 5mS | |
| CE & RoHS | In line with EN61000-6-2:2005, EN61000-6-4:2007 standards; Lightning surge ±1KV, group pulse ±2KV; Electrostatic contact 4KV, air discharge 8KV in line with RoHS | |
| Environmental Requirement | Operating temperature | 0~50℃ |
| Storage temperature | -20~60℃ | |
| Uv protection | Do not work in strong ultraviolet environment (such as direct sunlight) | |
| Ambient humidity | 10~90%RH（non-condensing） | |
| Shock resistance | 10~25Hz（X, Y, Z directions 2G/30 minutes） | |
| Cooling mode | Natural air cooling | |
| Mechanical Index | Class of protection | The front panel complies with IP65 (with flat cabinet installation), and the rear shell of the fuselage complies with IP20 |
| Mechanical structure | Engineering plastics | |

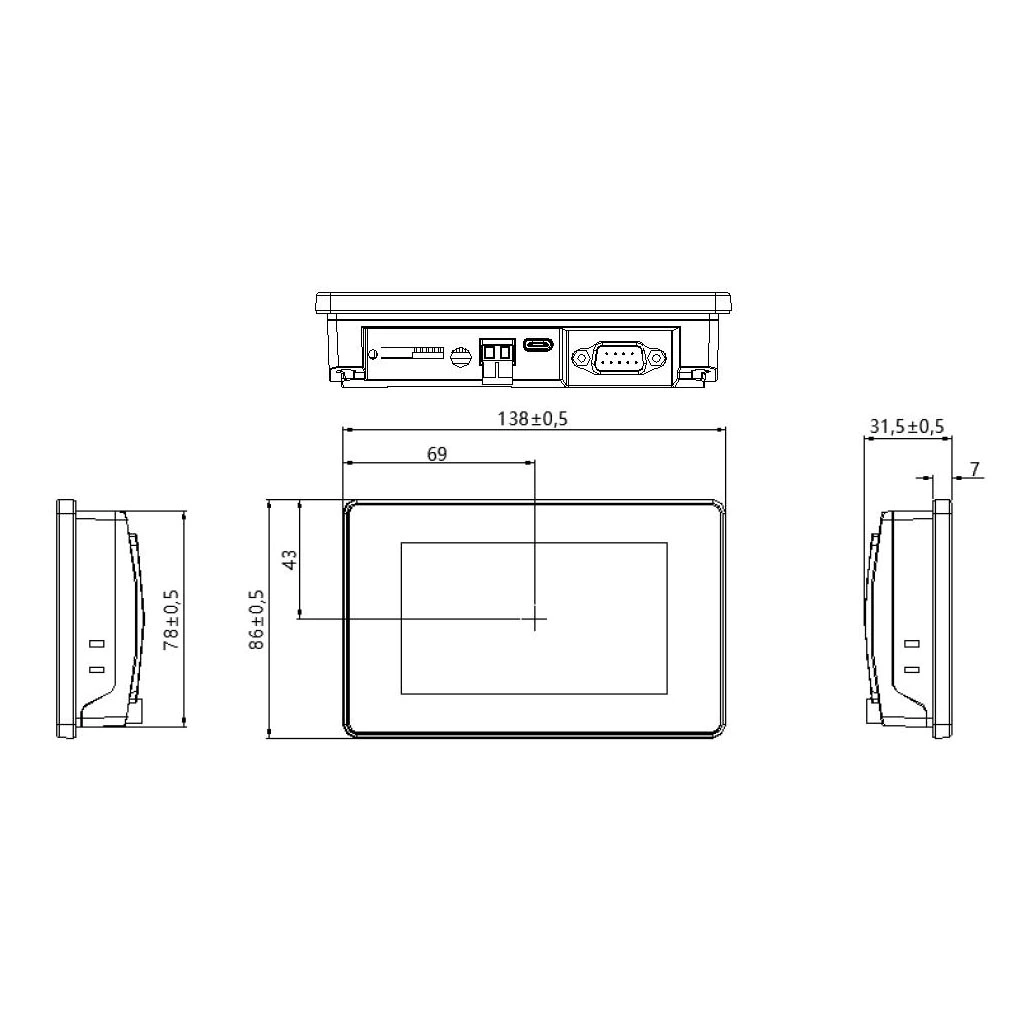

| Opening size | 132mm×80mm | |
| Overall size | 138mm×86mm×32mm | |
| Machine weight | About 300g |
