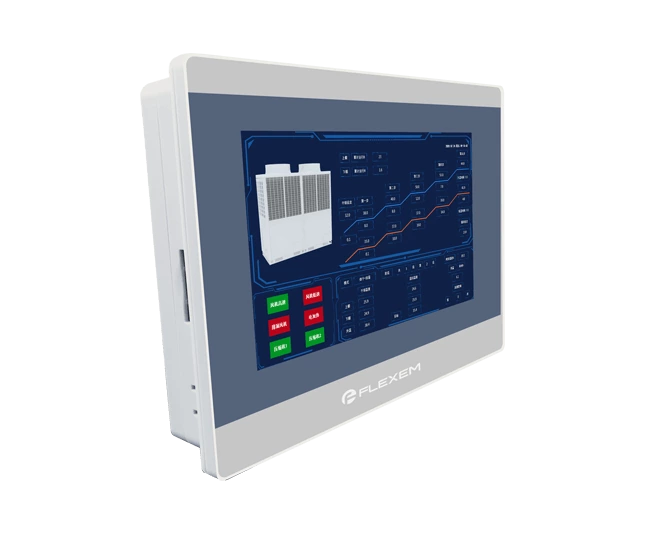

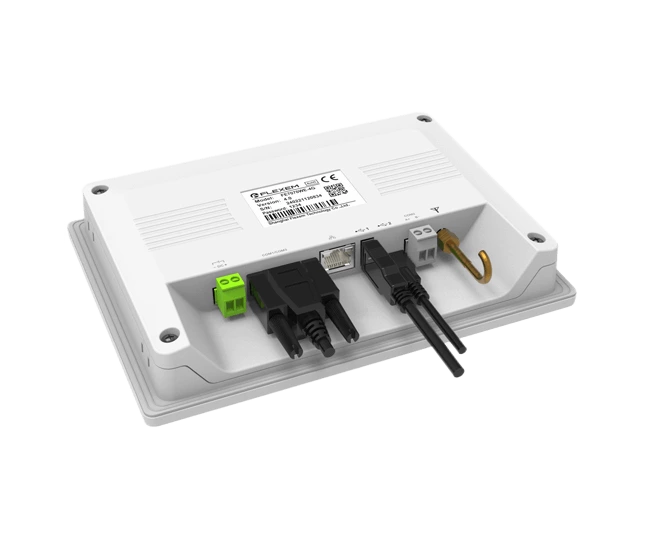

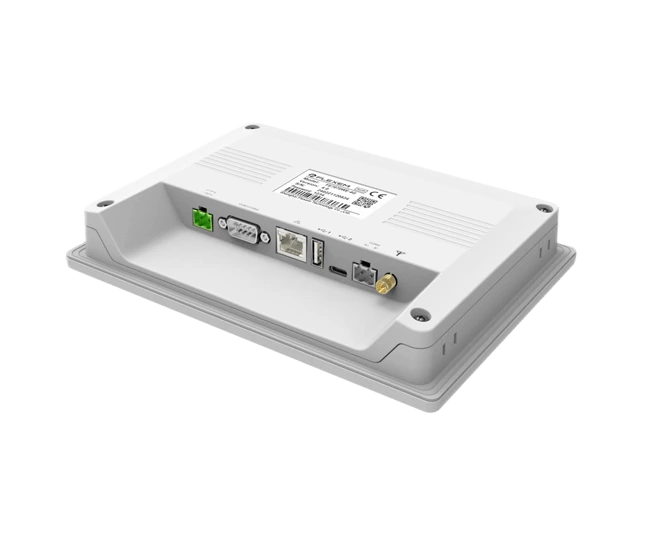

Flexem FE7070WE-4G 7'' 16:9 TFT LCD HMI Touchscreen 1024×600 Human Machine Interface

Model:
FE7070WE-4G
Brand:
FLEXEM

Hardware

Display 7” 16:9 TFT LCD
LCD Viewing Angles (T/B/L/R) 85'/85'/85'/85'
Resolution 1024×600
Colors 24-bit
Brightness 350 cd/m²
Touch Panel 4-wire industrial resistive touchscreen
CPU 1GHz, 4cores CortexTM-A7
Memory 4GB Flash + 128MB DDR3
Ethernet Port 10M/100M
USB Port 1* Type-C port, 1* USB Type-A port
Program Download Method USB slave / Flash drive
Serial Port COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232

Electrical

Rated Power < 10W
Rated Voltage DC24V, operational range: DC 9V~28V
Power Protection Lightning surge protection
Power Interruption Tolerance < 5mS
Certification EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV

Environmental

Operating Temperature 0~50℃
Storage Temperature -20~60℃
UV Resistance Operating in high UV environment is prohibited (e.g., in direct sunlight)
Environmental Humidity 10~90%RH (non-condensing)
Vibration Endurance 10~25Hz (X/Y/Z direction 2G/30 minutes)
Cooling Method Natural air cooling

Mechanical

Protection Level Front: IP65 (with flush panel cabinet installation), Rear: IP20
Enclosure Material Engineering plastic
Cutout Dimensions 190mm×136mm
Dimensions 204mm×145mm×34mm
Weight About 472g

Software

Connectivity Option Ethernet / 4G (Mobile/Unicom/Telecom)
Network Frequency Band LTE FDD: B1/B3/B5/B8; LTE TDD: B38/B39/B40/B41
VPN Transparent Transmission Available
Data Monitoring 300
Alarm Notification 100
Historical Data 30
Edge Computing 20
Network Protocol Supports over 100 industrial device protocols
Management And Maintenance Supports import and export of configuration file; supports configuration update via cloud download
