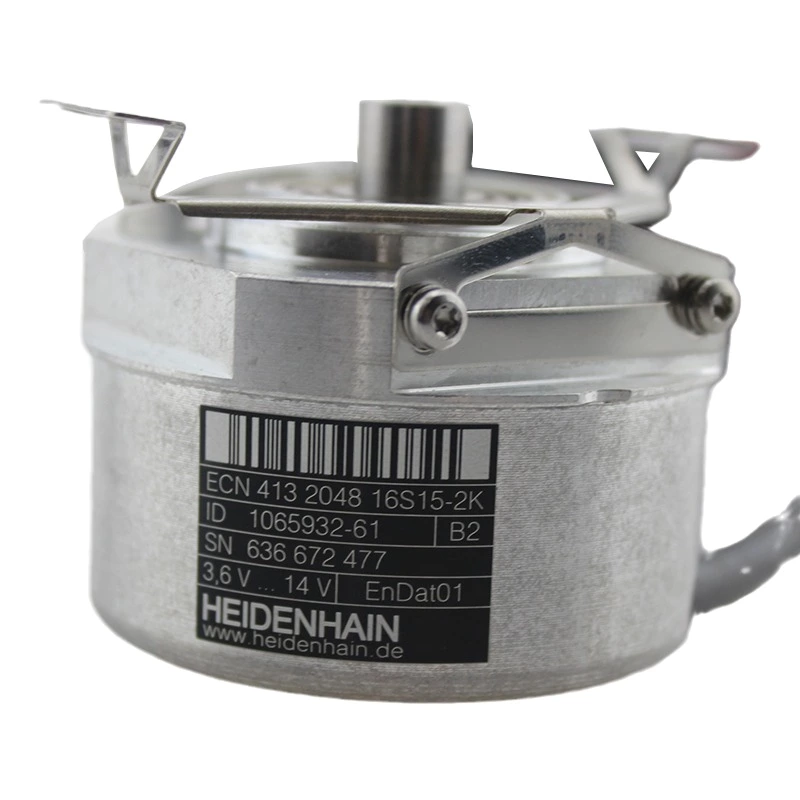

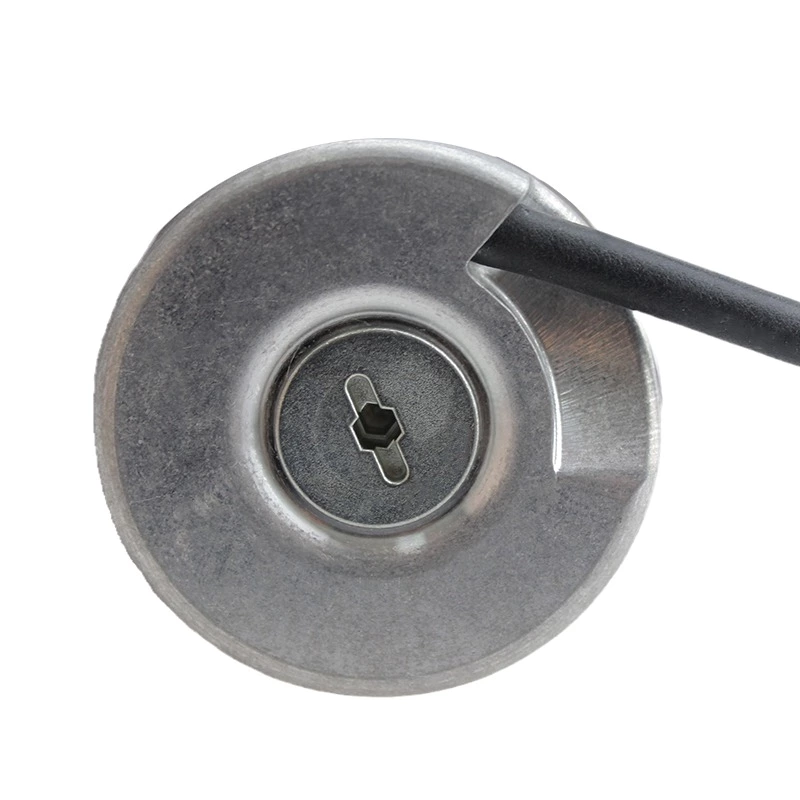

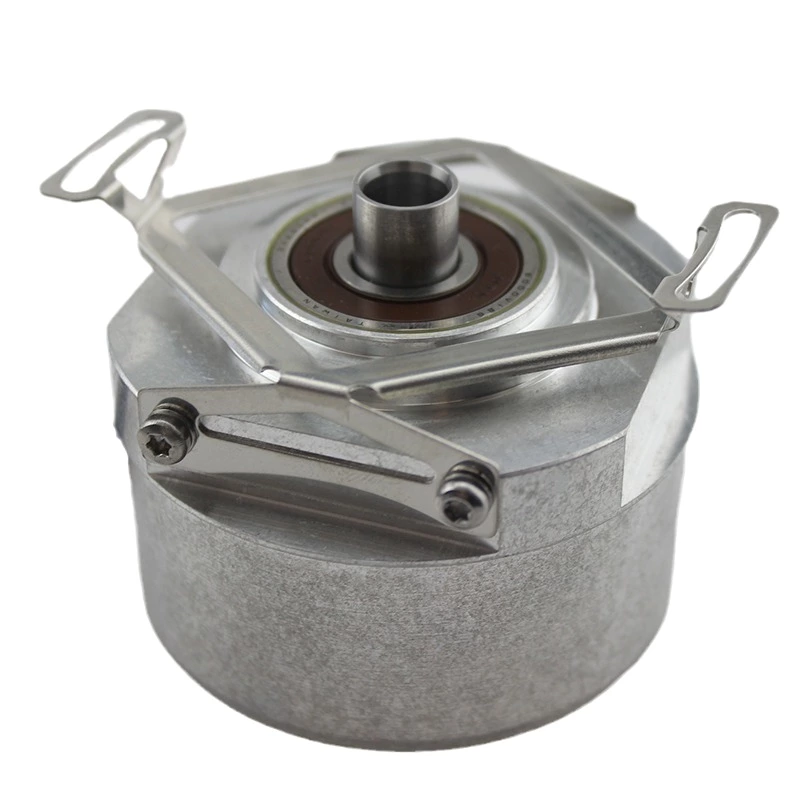

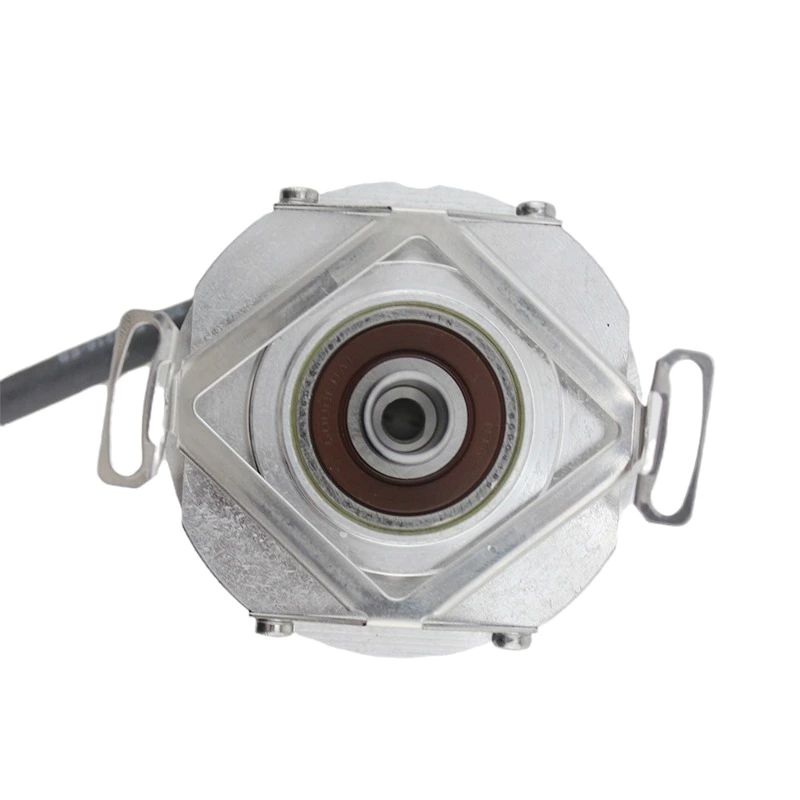

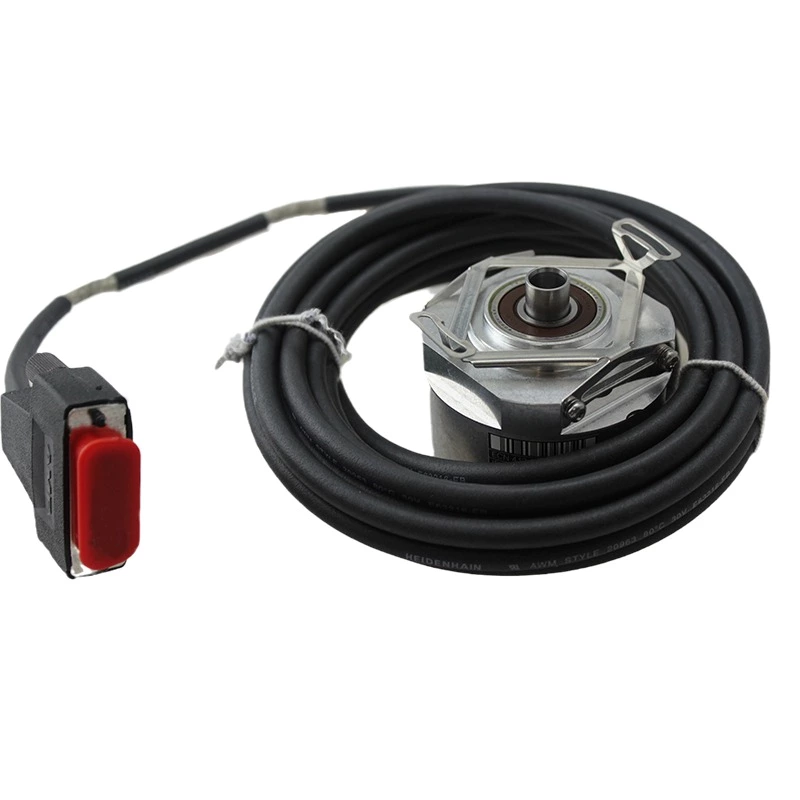

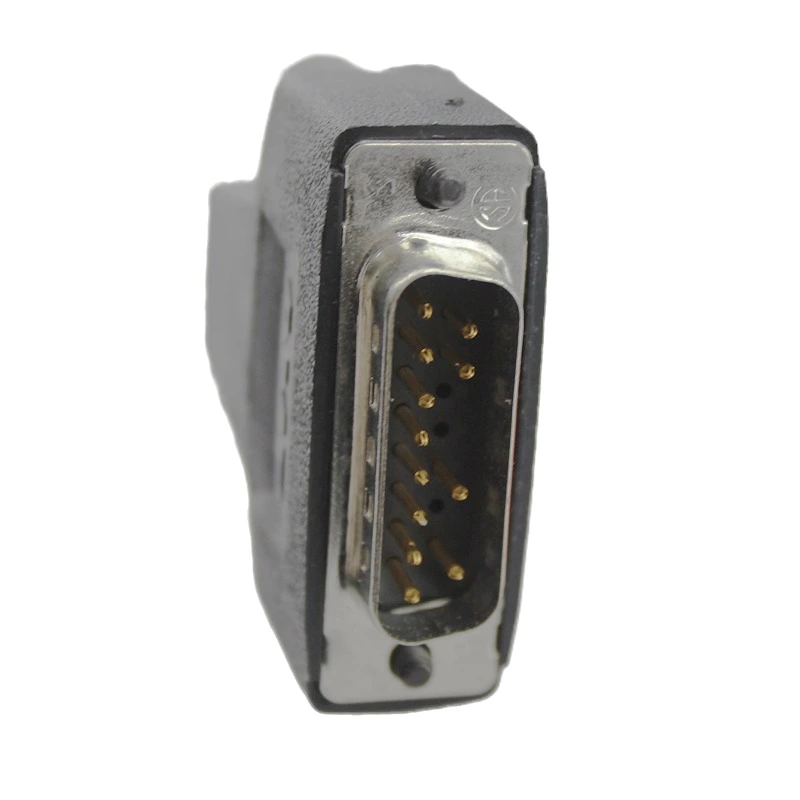

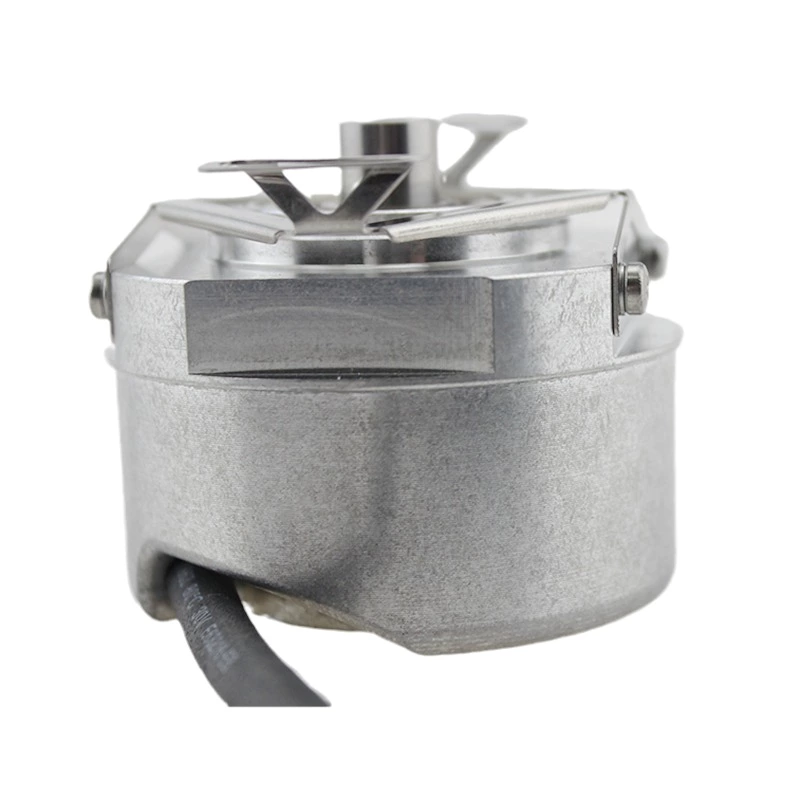

Heidenhain ECN 413 2048 16S15-2K Absolute Taper Shaft Encoder
- Model:
- ECN 413 2048 16S15-2K
- Brand:
- HEIDENHAIN
Heidenhain ECN 413 2048 16S15-2K Absolute Taper Shaft Encoder
Technical Specifications
| ECN 413 | Interface | Ordering designation | Position values/revolution | Elec. permissible speed/Deviations | Line count | Cutoff frequency –3 dB | Voltage supply |
| EnDat 2.2 |
EnDat01 | 8192 (13 bits) | 1500 rpm/±1 LSB 12 000 rpm/±50 LSB | 2048 | ≥400 kHz | DC 3.6 V to 14 V | |
| Power consumption (max.) | Current consumption (typical) | Mech. permiss. speed n | Starting torque | Max. operating temp. | Min. operating temp. | Mass | |
| 3.6V:≤0.6W 14V:≤0.7W | 5V:85mA (without load) | ≤15000rpm | ≤0.01Nm(at20°C) | 100°C | Fixed cable: –40°C Moving cable: -10°C | 0.25 kg |

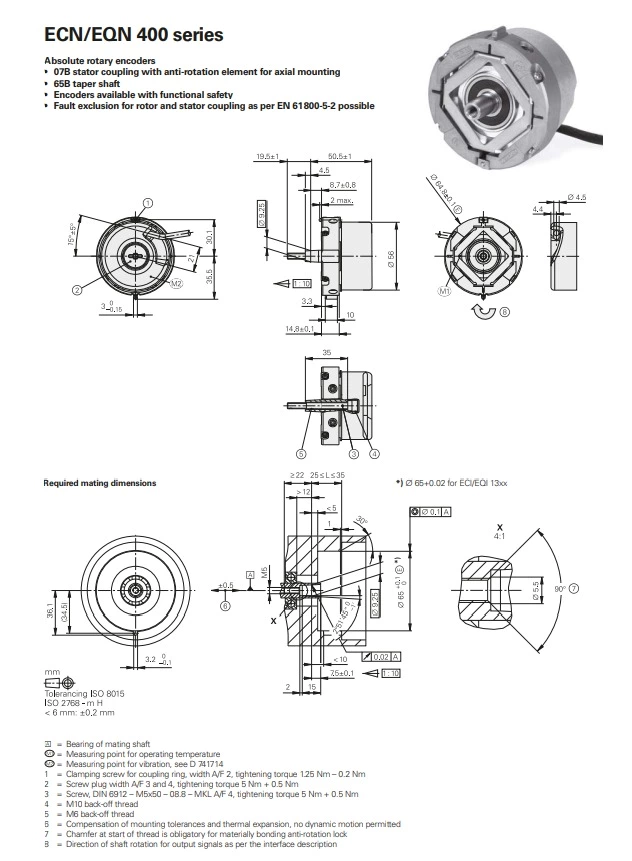

Dimensions(mm)
