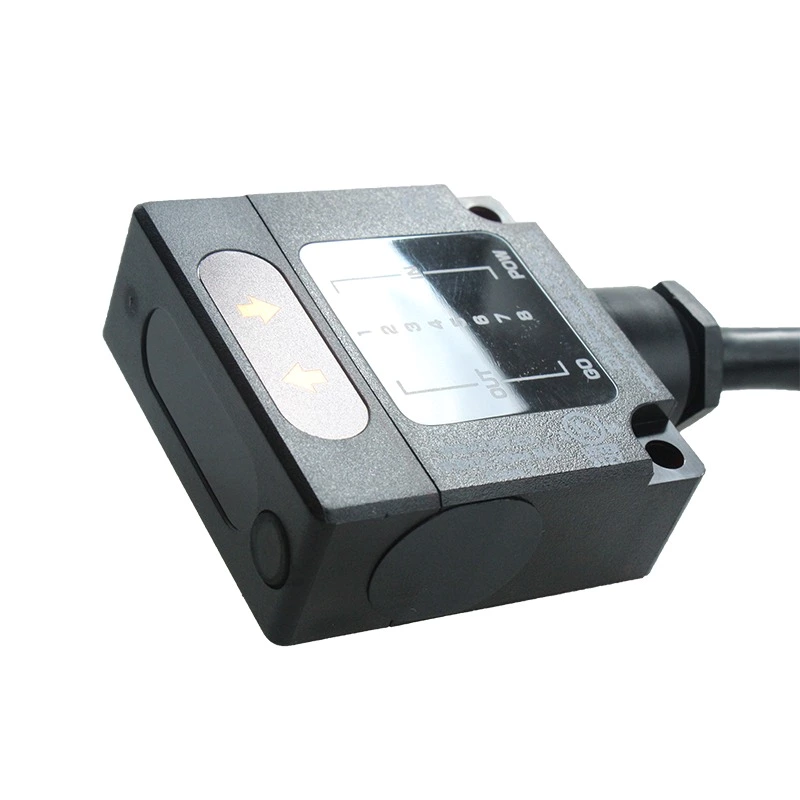

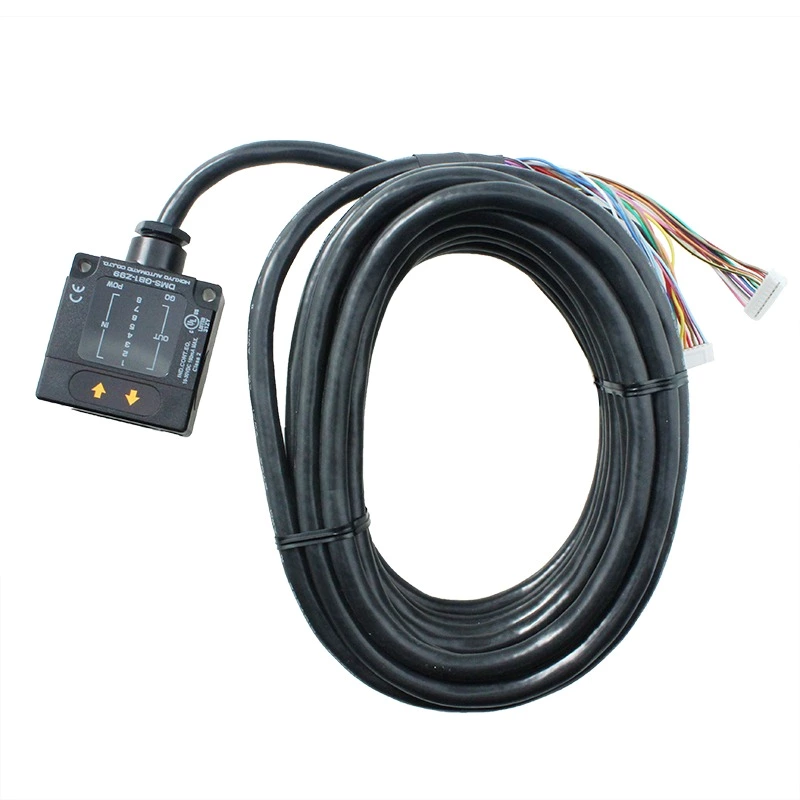

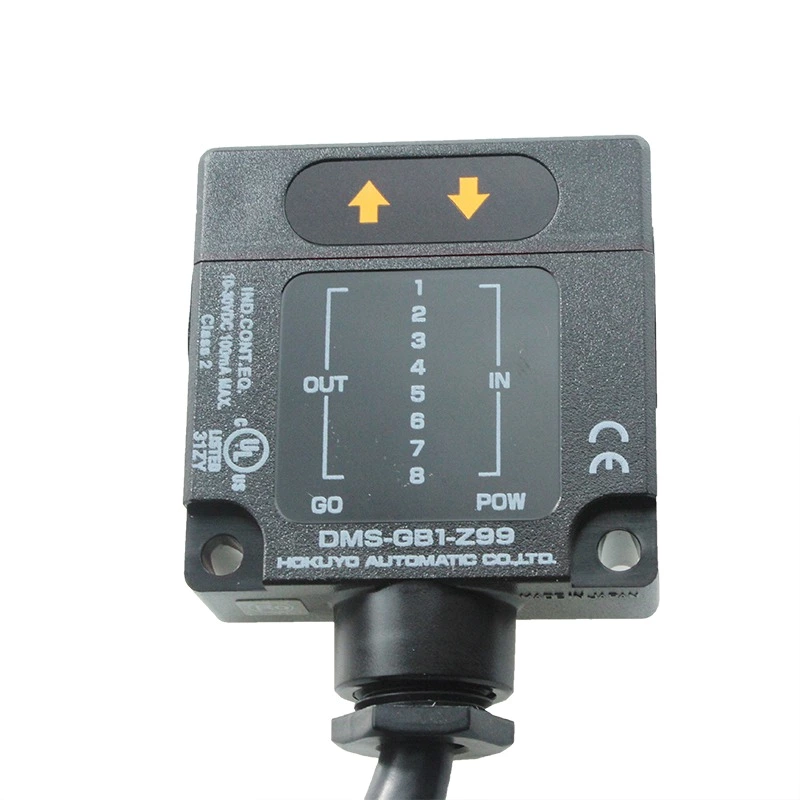

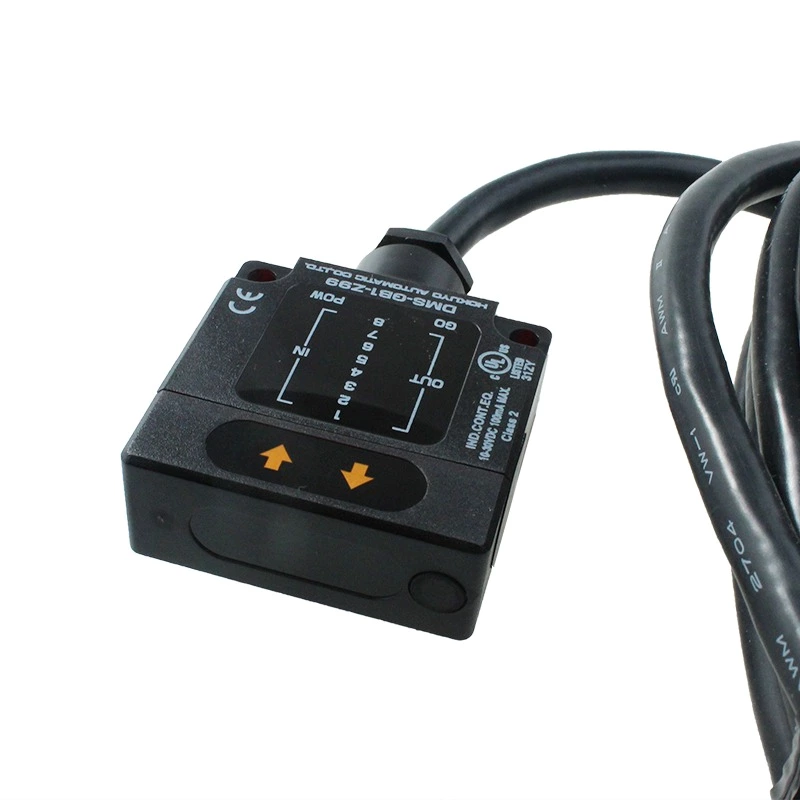

DMS-GB1-Z99 Optical Data Transmission Device New Original Genuine HOKUYO Sensor
- Model:
- DMS-GB1-Z99
- Brand:
- HOKUYO
Specifications
| Model No. | DMS-GB1-Z99 |
| Transmission distance | 0 to 0.6m(Adjustable) |
| Directive angle | ±15° |
| Transmission directions | HEAD-ON |
| Transmission capacity (Input/Output) | 8 bit/8 bit |
| Transmission method | Half-duplex two-way transmission |
| Transmission time | 40msec |
| Modulation method | Pulse modulation |
| Verification method | Parity check |
| Power source | 24VDC(18 to 30V available) Ripple 5% or less |
| Current consumption | 100mA Max.(550m Max. when connecting load) |
| Ambient illuminance | 4,000lux or less |
| Ambient temperature/humidity | -10 to 50℃/ 85%RH or less |
| Vibration resistance | Double amplitude 1.5mm, 10 to 30Hz, Each 2 hour in X, Y and Z directions |
| Impact resistance | 500m/s2 Each 10 times in X, Y and Z directions |
| Connection | Cable type(0.2mm 2 , 22-core shield cable) |
| Protective structure | IP64 |
