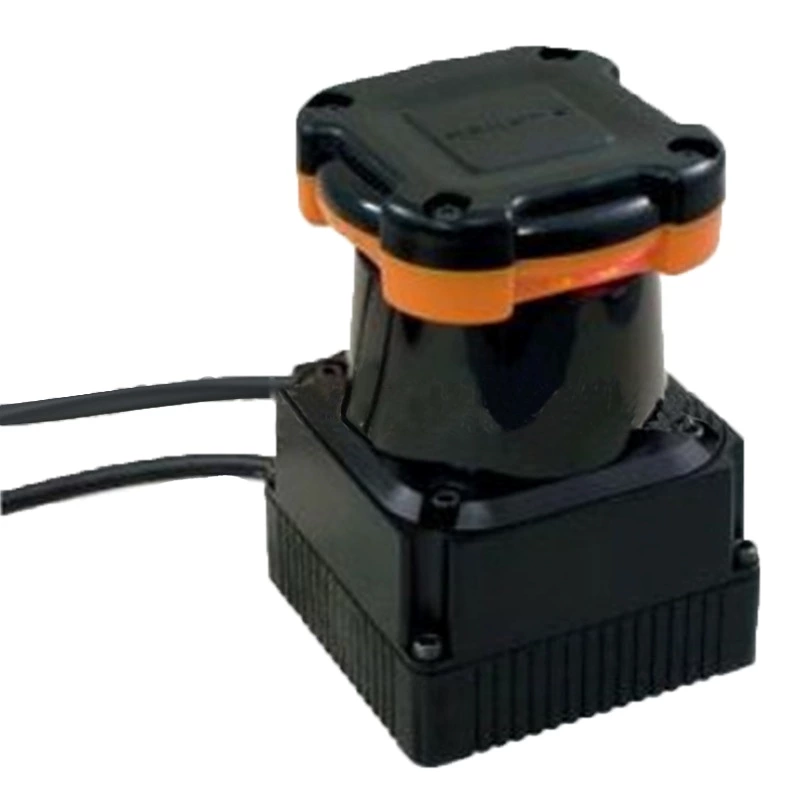

Hokuyo UTM-30LN Scanning Laser Rangefinder
The Hokuyo UTM-30LN Scanning Laser Rangefinder (30m) is suitable for security purpose as a monitor in outdoor environment. Also possible for sticking-out detection.
Description
-
Power source: 12VDC±10%
-
Detection Range: 0.1 to 30m
-
Accuracy: 0.1 to 10m ± 30mm, 10 to 30m ±50mm
-
Angular Resolution: 0.25°(360°/1,440 steps)
-
Possible for outdoor Applications
-
Reflective type with easy wiring
-
The LN is an obstacle detection scanner that offers a single output when an object comes into the scanning zone.
Features
-
Long distance (30m) and wide angle (270º)
-
Reflective type with easy wiring
-
This accuracy could be less reliable if the sensor receives strong light such as sun light directly in the outdoor environment
Specifications
-
Power source: 12VDC±10% (Current consumptlon: Max:1A, Normal:0.7A)
-
Light source: Semiconductor laser diode(?=905nm), Laser safety Class 1(FDA)
-
Detection Range: 0.1 to 30m (White Square Kent Sheet 500mm or more), Max.60m 270º
-
Accuracy: 0.1 to 10m:±30mm, 10 to 30m:±50mm*1
-
Angular Resolution: 0.25º(360º/1,440 steps)
-
Scan Time: 25msec/scan
-
Sound level: Less than 25dB
-
Interface: USB2.0(Full Speed) for field setting by PC
-
Output: Output 1:NPN open collector 50mA or less, power less than 30V
-
Connection: Power and output: 2m flying lead wire, USB: 2m cable with type-A connector
-
Amblent (Temperature/Humidity): -10 to +50 degrees C, less than 85%RH(without dew and frost)
-
Vibration Resistance: Double amplitude 1.5mm to 55Hz, 2 hours each in X, Y and Z direction
-
Impact Resistance: 196m/s2, 10 times in X, Y and Z direction
-
Weight: Approx. 370g(with cable attachment)
