Description:
MT4000 series HMI use 32-bit RISC CPU and streamlined LINUX kernel, you can display a variety of true-color graphics format, and its superior processing speed and software to meet the needs of most users. Support and the vast majority of the PLC to communicate directly, and can easily exchange data between their connected devices. MT4000 series has a direct line simulation, indirect line simulation, high-capacity user configuration program memory space, compatible with the standard C language macro functions fit the customer needs quickly and effectively complete the field data collection, computing, control.
Specifications:

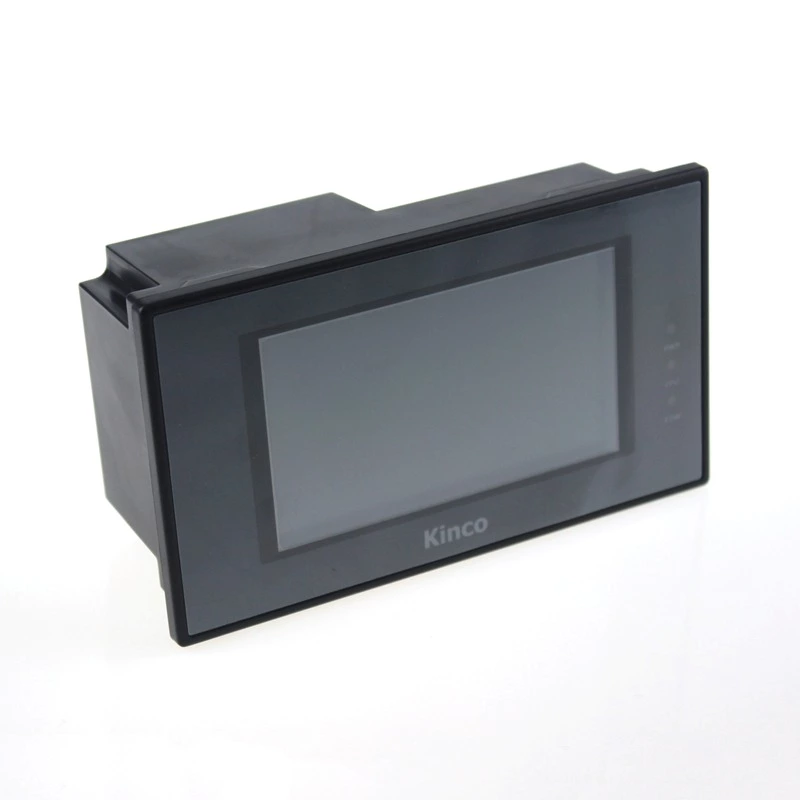

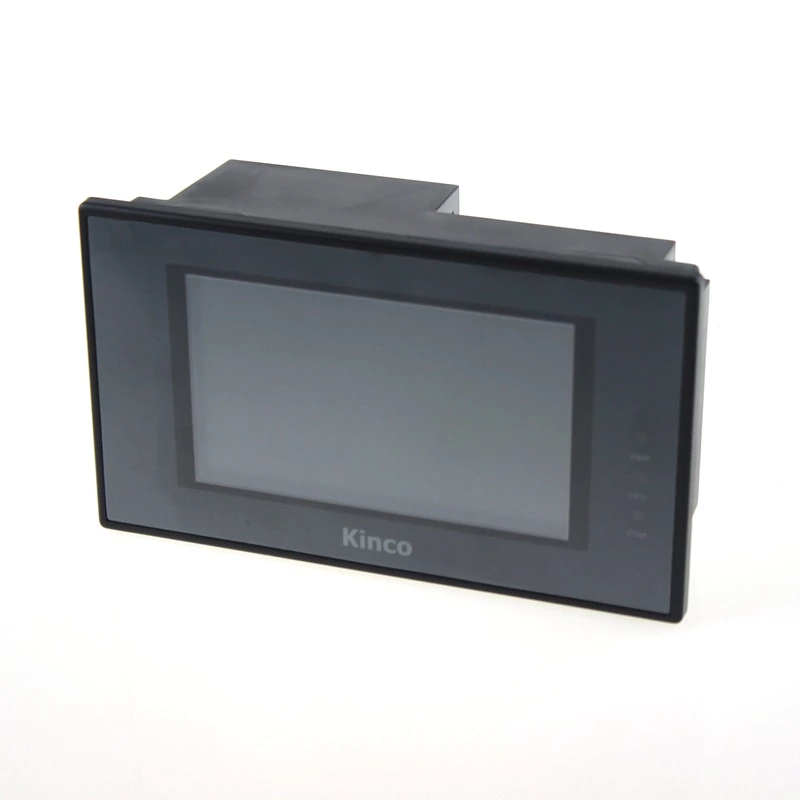

MT4220TE
*The highspeed 400MHz CPU, fast data processing and transmission capabilities,
to provide protection for the efficient work
*65536 color display, the picture is richer and more vivid
*wider temperature range, stable work in -20 ~ 55 ° C environment
| Model | MT4210T | MT4220TE |
| Performance specification | ||
| Display | 4.3" TFT | |
| Resolution | 480*272 | |
| Color | 65536 | |
| Backlight | LED | |
| Brightness | 300cd/ m² | |
| Backlight life | 50000 hours | |
| Touch Panel | 4-wire precision resistance network | |
| Processor | 32-bit 400MHz RISC | 32-bit 800MHz RISC |
| Memory | 128M FLASH + 64M SDRAM | |
| U Disk | None | 1USB host |
| SD Card | None | 1 SD card |
| Recipe memory & RTC | 512KB + RTC | |
| Printer port | Serial port | Serial port/USB port |

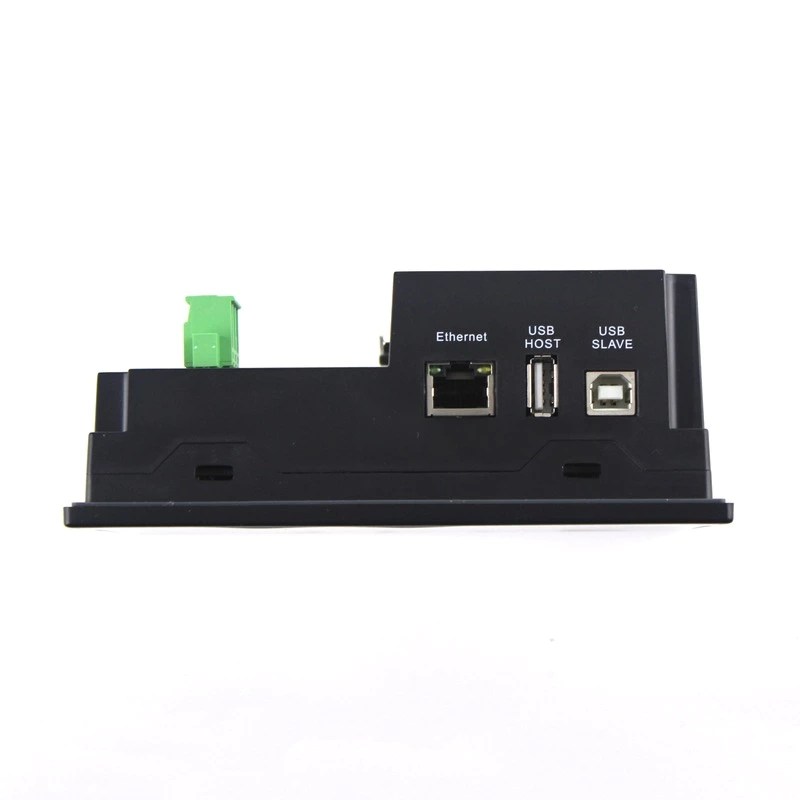

| Ethernet | None | Support |
| Program download | USB SLAVE/Serial port | USB SLAVE/Serial port/Ethernet port |

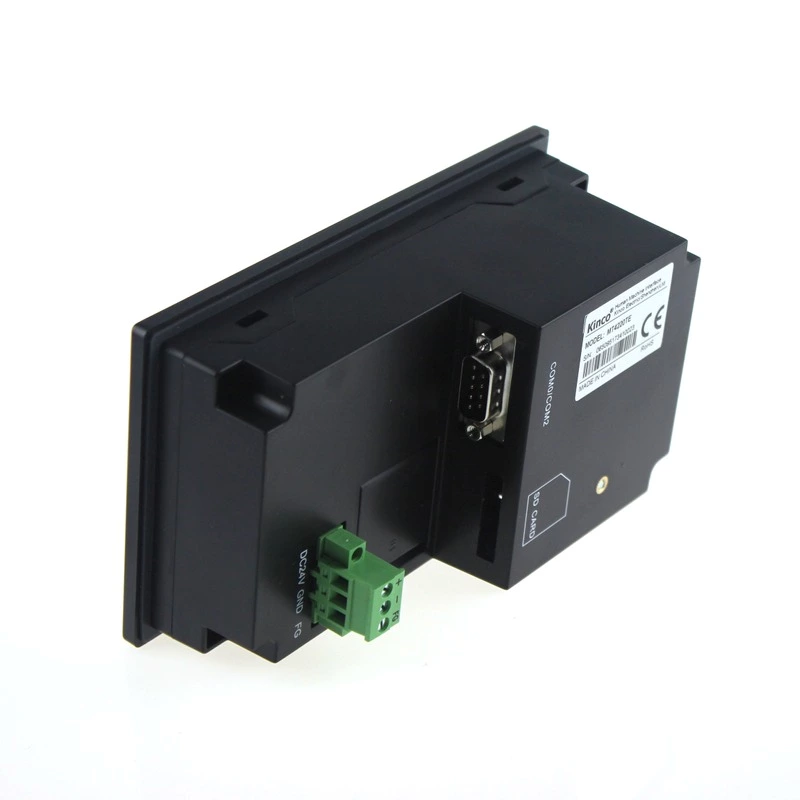

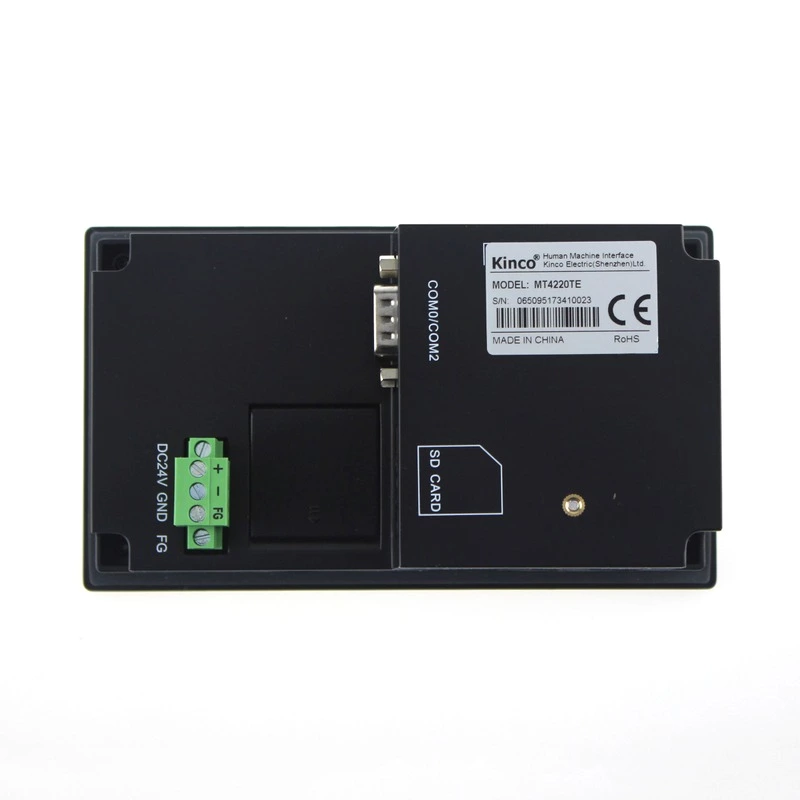

| COM port | COM0:RS232/RS485-2/RS485-4,COM2:RS232 | |
| Function Key | None | |
| Software | EV5000 V1.6 | |
| Electrical specification | ||
| Rated power | 3.5W | |
| Rated voltage | DC24V | |
| Input range | 12~28VDC | |
| Power down allowed | <3ms | |
| Insulation resistance | Greater than 50MΩ@ 500V DC | |
| Dielectric strength test | 500 VAC 1 minute | |
| Structure specification | ||
| Shell color | Black | |
| Shell material | ABS | |
| Dimensions(mm) | 154×89×59.8mm | |
| Cutout size(mm) | 145×81mm | |
| Weight | 0.34 Kg | |
| Environment specification | ||
| Operating temperature | -20~55 ° C | |
| Operating humidity | 10~90% non-condensing | |
| Storage temperature | -25~60 ° C | |
| Storage humidity | 10~90% non-condensing | |
| Shockproof test | 10~25Hz (X, Y, Z direction, 2G, 30 minutes) | |
| Cooling method | Natural air cooling | |
| Certification | ||
| Degree of protection | IP65 (front panel) | |
| CE certification | Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards | |
| FCC compatibility | Complies with FCC Class A | |
