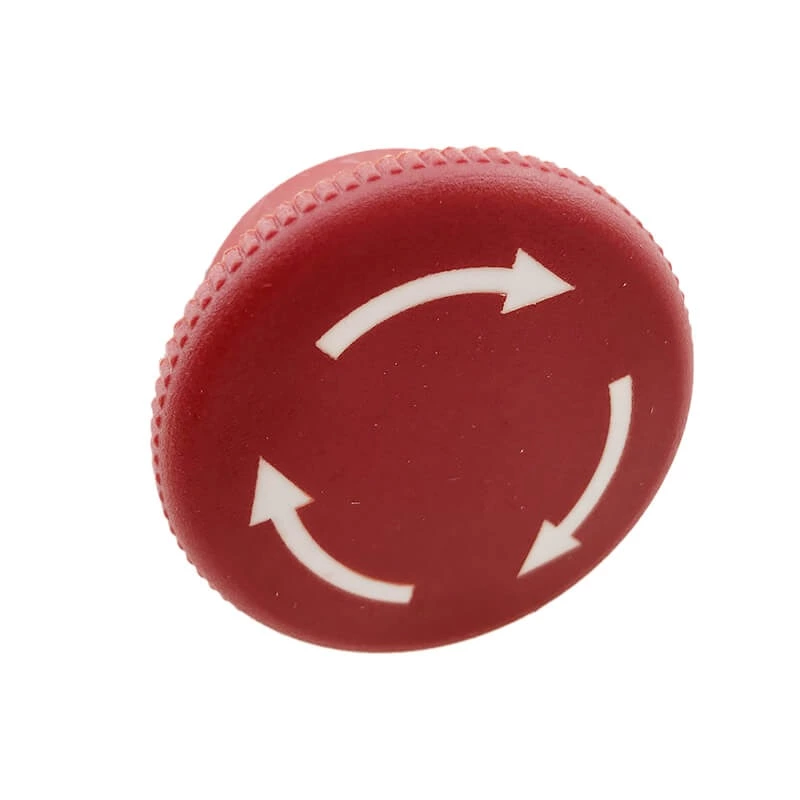

Emergency Switch Turn to Release Mushroom Pull and Turn Switch Red Mushroom Head LAY5-BS542
- Model:
- LAY5-BS542
Emergency Switch Turn to Release Mushroom Pull and Turn Switch Red Mushroom Head LAY5-BS542
Model and Meaning
LAY: Push button and signal lamp.
5: Push button switch design code.
B: stands for metal type.
S:Turn to release type emergency button
5 means φ40
4: Red
2:means 1NC
Working environment
1. Surrounding temperature:-25℃~+55℃
2. Air relative humidity:≤85%
3. It can be normally work under following condition:
Vibration frequency is 2~80Hz and acceleration speed is 0.7g/h
4. Pollution grade is Ⅲ, installation sort is Ⅲ, protection grade is up to IP65
5. Altitude:≤2000m
Note: PG denotes pure green; PW denotes pure white
Main technical parameter
| Basic technical parameter of button | Basic technical parameter of signal lamp | ||
| Rated insulation voltage | AC 600V (50Hz/60Hz) | Insulation resistance | ≥50MΩ |
| Conventional heating current | 10A | Contact resistance | ≤25MinΩ |
| Insulation resistance | ≥50MΩ | Pf withstand voltage | AC 2.5KV/min |
| Contact resistance | ≤25MinΩ | Voltage wave | ±20% |
| Mechanical life | 100 ×10 (Pustbutton) | Brightness | 60cd/m |
| Electrical life | 500 ×10 (Pustbutton) | Continuous working life | 10×10 h |

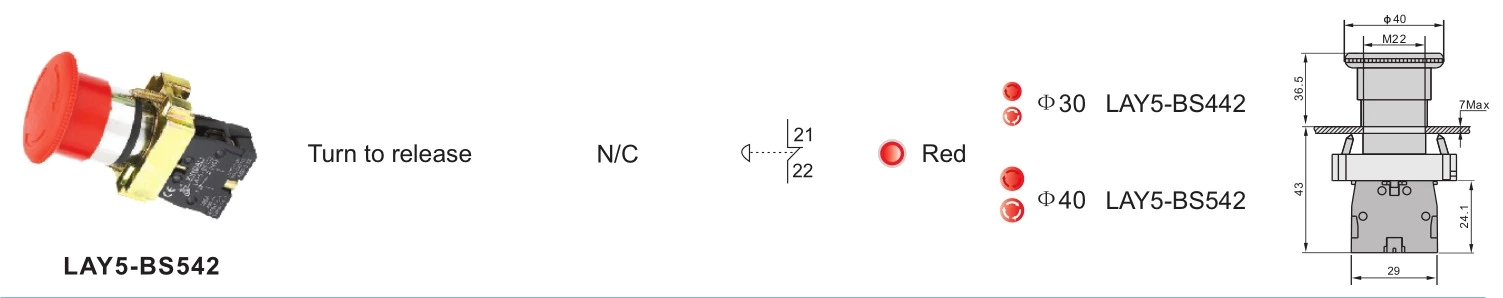

LAY5 Push button details
