Panel mounting voltage and ampere meter with 22mm Yellow Light AD101-22VAM

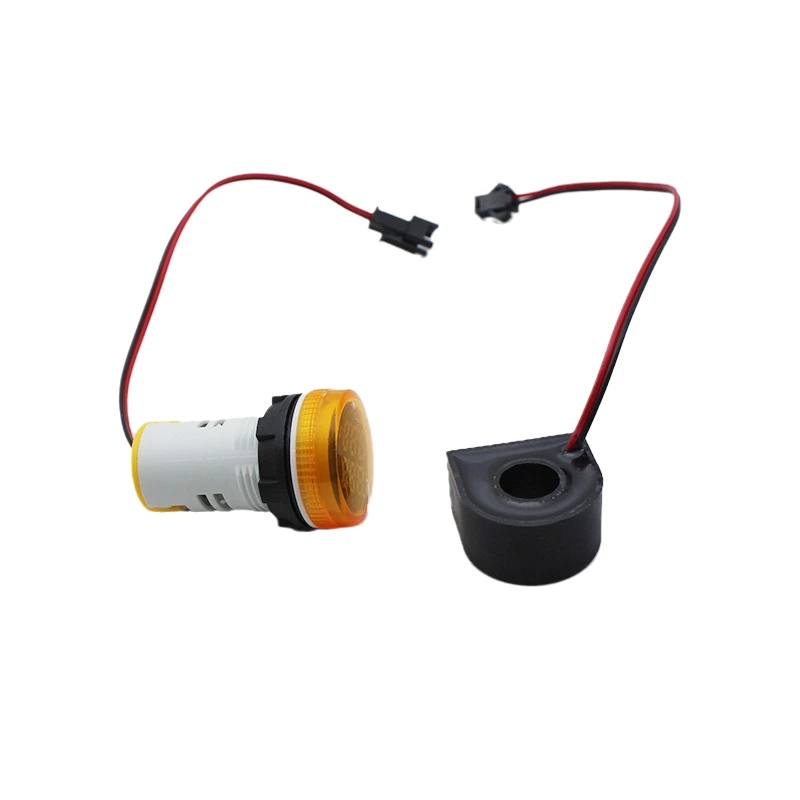

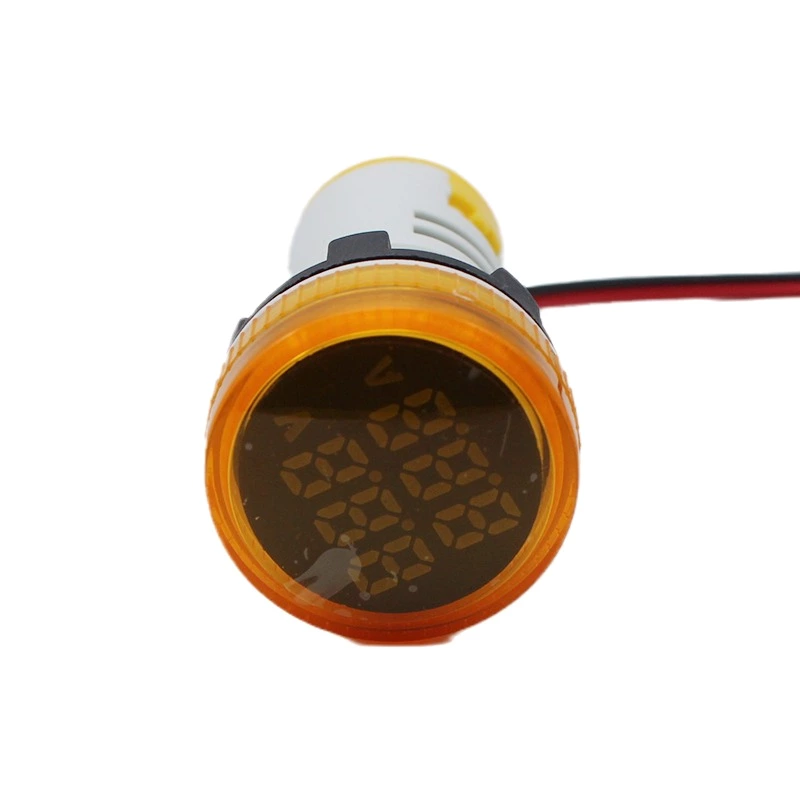

 Product Pictures

Product Description

Working Condition

ambient temperature:-25C -+55C,

relative humidity:≤98%,

nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g

pollution degree is 3, installation g roup is Il .

Technical Data

Power frequency withstand voltage:2.5kv/1min (effective AC value),

insulation resistance: ≥2MΩ,

Allowable voltage fluctuation:± 20% ,

Continuous operating life: ≥30000H,

Brigtnss: ≥ 100cd/m2,

CTI≥600,

Protection degree of the head IP65, IP67 is available on request,

Applying frequency:AC50~60Hz.

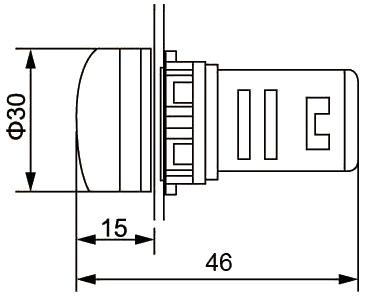

Indicator Dimensions(mm)
