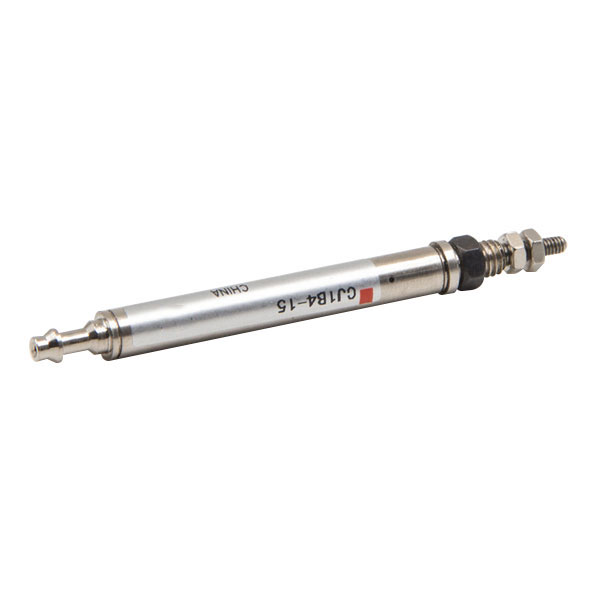

Overview for CJ1 Air Cylinder
CJ1 Stainless Steel Cylinder is double-acting type, and the piping direction of the side pipe joint can be changed within ±90º.
It is miniature compact cylinder (Stainless Steel Cylinder) with compact structure, small size and light weight;
The piston rod has high guiding precision, and the guiding bearing does not need additional lubricating oil;
Stainless steel piston rod and cylinder can adapt to the corrosive working environment;
Various specifications of Stainless Steel Cylinder and cylinder installation accessories are available for customers to choose;
The Stainless Steel Cylinder bore is small and the response is fast, suitable for higher frequency working environment.
Technical Parameters for CJ1 Air Cylinder
Bore Sizes: 2.5,4mm
Stroke Lengths: 5,10,15,20mm
Operating Pressure: 0.3-0.7 MPa
Speed:50~500mm/s；
Working Environment Temperature: -10 to 70°C
