Overview for Pin Cylinder
CJP2 Pin Cylinder
CJP2 standard type single-rod double-acting Pneumatic Cylinder 4, 6, 10, 16

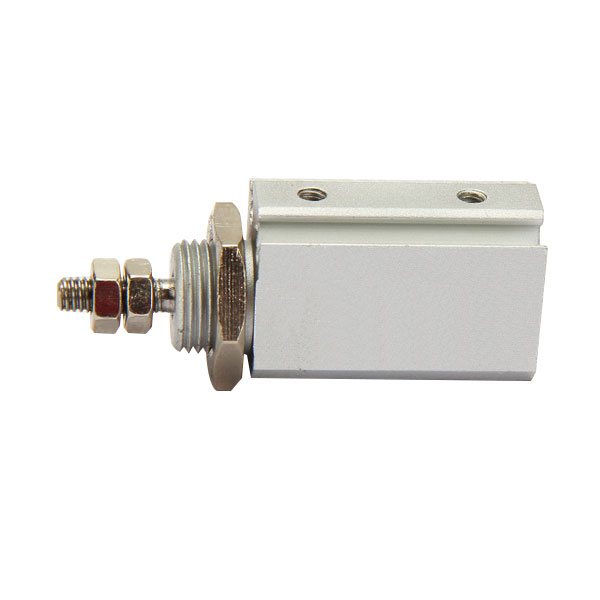

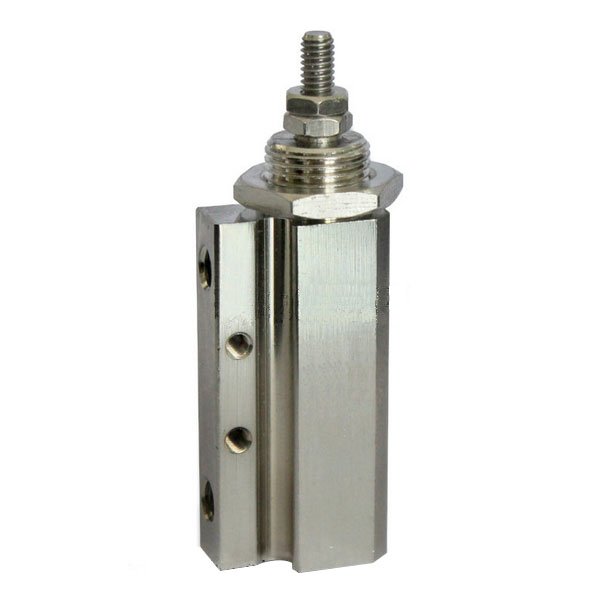

CJPB single-acting (panel mounting) Pneumatic Cylinder 4, 6, 10, 15

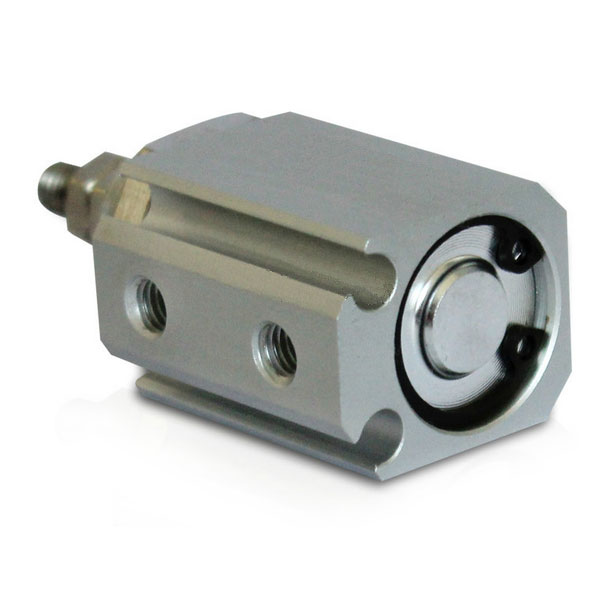

CJPS single-acting (embedded type) Pneumatic Cylinder
Speciality
Small size, double-acting, no lubrication required, with round magnetic switch, rubber buffer
CJP2 Miniature Pneumatic Cylinder with bore of φ4-5st can also be equipped with 2 magnetic switches.
Can connect φ2 quick-change connector and speed control valve.
Magnetic switch (CDJP2 series: CDJP2)
Technical Parameters for Pin Cylinder
Bore Sizes: 6,10,16mm
Stroke Lengths: 5,10,15,20,25,30,35,40mm
Operating Pressure: 0.06/0.12/0.15-0.7 MPa
Speed:10~500mm/s；
Working Environment Temperature: -10 to 60°C
