RTP1043 Factory Price for Programmable Logic Controller HMI PLC Touch Screen
- Model:
- RTP1043
- Brand:
- RIEVTECH

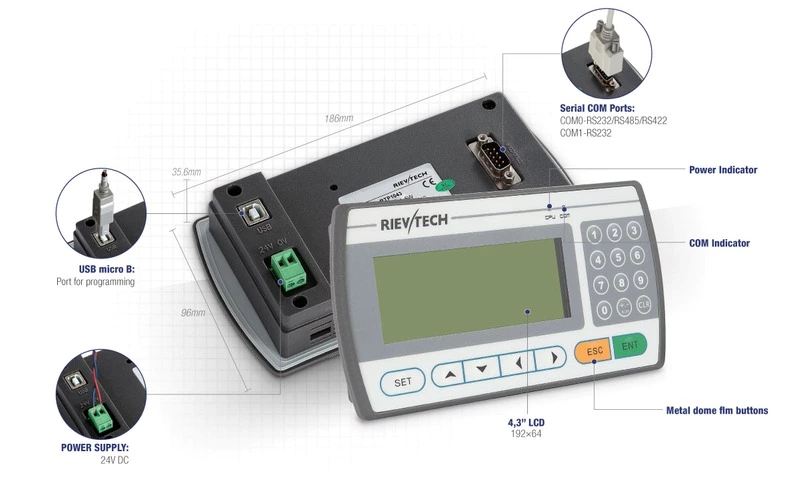

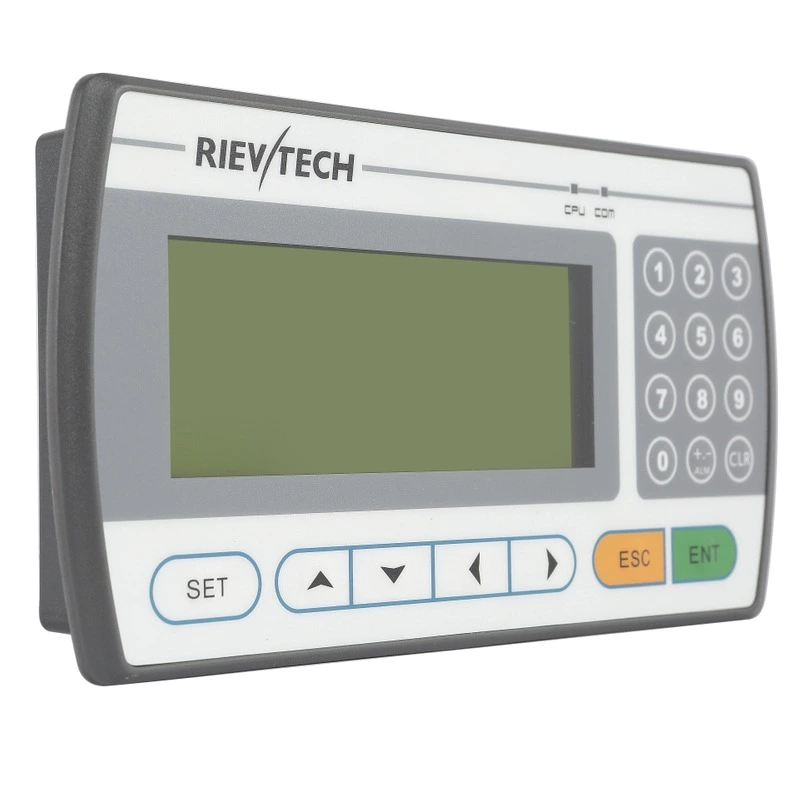

RTP1043 Touch Panel
Highlight:
× ARM CORTEX-M3 high speed 32 bit RISC CPU.
× Supporting offline simulation for easy and convenient testing.
× Supporting vector fonts and multi-language input.
× Supporting 8-level user password levels.
× Providing factory batch downloading tools.
× MPI support. Directly connection with Siemens S7-300 without adapters.
General Specification:
| Model | RTP1043 | |
| Technical parameter | Display | 4.3" STN |
| Resolution(WxH): | 192x64 | |
| Colors | Mono (Yellow-green backlight,black font) | |
| Brightness | 60cd/m² | |
| Backlight | LED | |
| Backlight Life | 50000 hours | |
| CPU | 32 Bit 72MHz ARMRISC | |
| Memory | 256K Flash | |
| RTC | Built-in | |
| Ethernet | N/A | |
| USB port | 1 USB Device | |
| Download project | USB device | |
| COM Port | COM0:RS232/RS485/RS422; COM1:RS232 | |
| SD Card | N/A | |
| Electrical Specifications | Power Consumption | < 4W |
| Input Power | DC 12/24V,Input Range:DC 9V~36V | |
| Power Protection | Isolated power supply,protected from thunderstrike and surging | |
| Power down allowed | < 5ms | |
| CE | Complied with EN61000-6-2:2005, EN61000-6-4:2007,CE | |
| RoHS | RoHS, Surge Immunity:±1KV, EFT:±2KV; ESD:4KV, Air:8KV | |
| Environment Specifications | Operating Temperature: | 0~45C |
| Storage Temperature: | -20~70C | |
| Operating Humidity: | 10~90%RH(no condensate) | |
| Vibration Endurance: | 10~25Hz(X,Y,Z direction 2G/30 minutes) | |
| Others: | Degree of Protection: | Front IP65(with NEMA panel),Back IP20 |
| Shell Material: | ABS | |
| Panel Cutout: | 165×86(mm) | |
| Dimension: | 185.8×96.2×35.6(mm) | |
| Weight: | About 430g | |

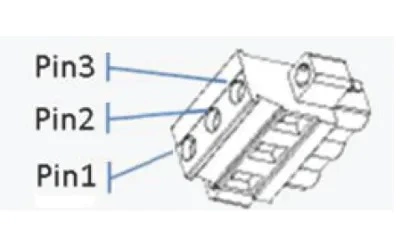

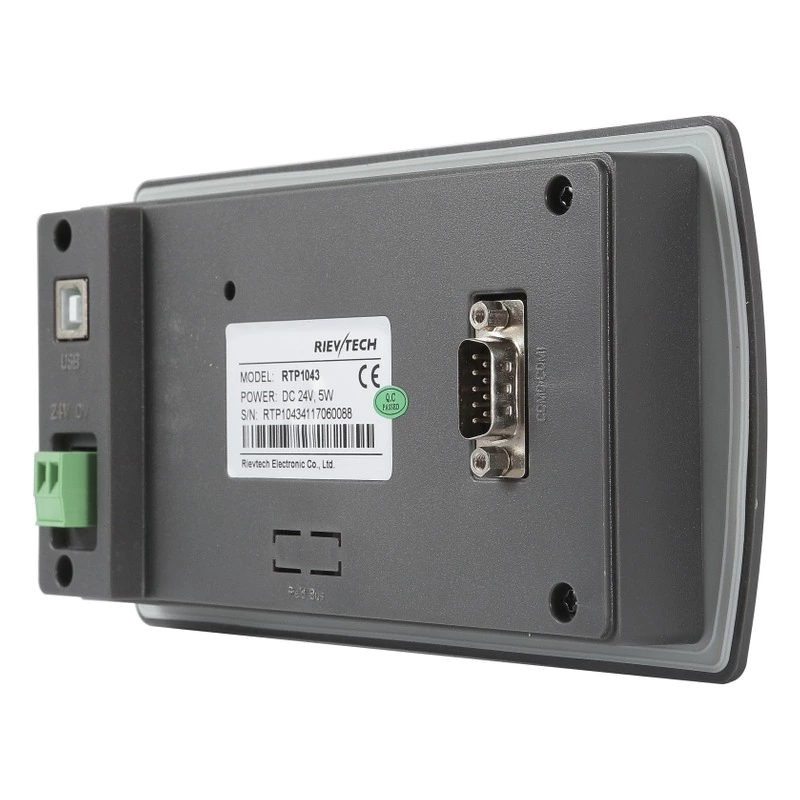

Power terminals:
| Pin1 | DC24V |
| Pin2 | 0V |
| Pin3 | FG |

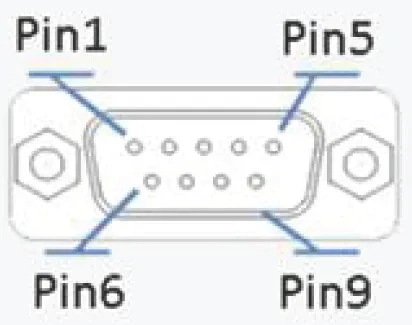

COM1/COM3 Communication Ports
| Pin1 | Rx-(B) |
| Pin2 | RxD_PLC (COM1 RS232) |
| Pin3 | TxD_PLC (COM1 RS232) |
| Pin4 | Tx+ |
| Pin5 | GND |
| Pin6 | Rx+(A) |
| Pin7 | RxD_PC/PLC (COM3 RS232) |
| Pin8 | TxD_PC/PLC (COM3 RS232) |
| Pin9 | Tx+ |

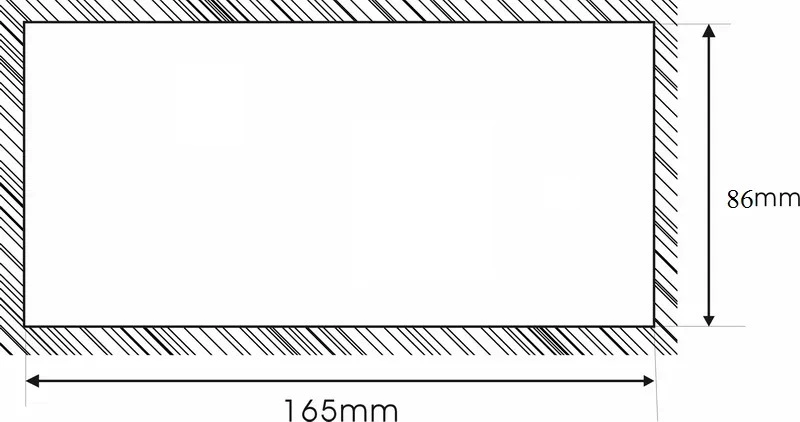

Dimension and Installation Guide
Dimension of RTP1043 (L*W*H): 1 85 ×9 6 × 3 6 (mm).
Dimension of the installation hole is 165x 86 (mm).
