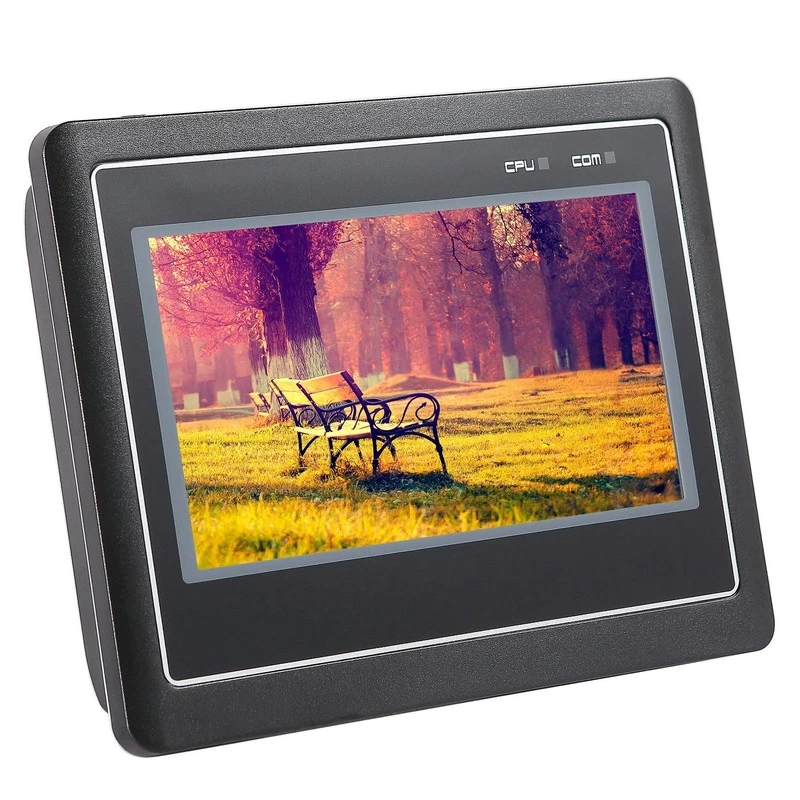

RTS4043C HMI Touch Screen PLC Programmable Logic Controller Human Machine Interface
- Model:
- RTS4043C
Highlight:
× ABS+PC enclosure, low cost, high reliability.
× The mainboard is with spray coating treatment, adapt to harsh industrial environment.
× High resolution, high brightness, LED backlight.
× Simple dual communication ports, supporting USB Disk/USB
× Totally new configuration software, rich gallery and powerful function.
General Specification:
| Model | RTS4043C | |
| Technical parameter | Display | 4.3" TFT LCD |
| Resolution(WxH): | 480×272 | |
| Colors | 24-bit | |
| Brightness | 420cd/m2 | |
| Backlight | LED | |
| Backlight Life | 50000 hours | |
| Touch Panel | 4 wires resistive touch screen(Surface hardness 4H) | |
| CPU | 600MHz ARM Cortex A8 | |
| Memory | 128M Flash +128M DDR3 | |
| RTC | Built-in | |
| Ethernet | N/A | |
| USB port | USB Device 2.0*1, USB Host 2.0*1 | |
| Download project | U-disk/USB device | |
| COM Port | COM1: RS232/RS485/RS422 COM3: RS232 |
|
| Specifications | Power Consumption | < 5W |
| Input Power | DC24V, working range DC 9V~28V | |
| Power Protection | Protected from thunder strike and surging | |
| Power down allowed | < 5ms | |
| CE | Complied with EN61000-6-2:2005, EN61000-6-4:2007,CE | |
| RoHS | RoHS, Surge Immunity:±1KV, EFT:±2KV; ESD:4KV, Air:8KV | |
| Environment Specifications | Operating Temperature: | 0~50C |
| Storage Temperature: | -20~60C | |
| Operating Humidity: | 10~90%RH(no condensate) | |
| Vibration Endurance: | 10~25Hz(X,Y,Z direction 2G/30 minutes) | |
| Others: | Degree of Protection: | Front IP65(with NEMA panel),Back IP20 |
| Shell Material: | ABS | |
| Panel Cutout: | 120×93(mm) | |
| Dimension: | 128×102×32(mm)(without terminals) | |
| Weight: | About 430g | |

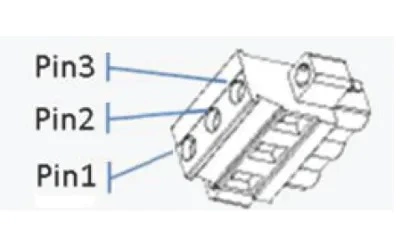

Power terminals:
| Pin1 | DC24V |
| Pin2 | 0V |
| Pin3 | FG |

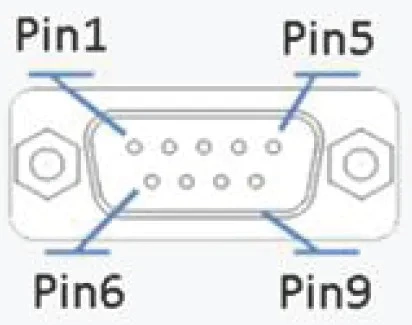

COM1/COM3 Communication Ports
| Pin1 | Rx-(B) |
| Pin2 | RxD_PLC (COM1 RS232) |
| Pin3 | TxD_PLC (COM1 RS232) |
| Pin4 | Tx+ |
| Pin5 | GND |
| Pin6 | Rx+(A) |
| Pin7 | RxD_PC/PLC (COM3 RS232) |
| Pin8 | TxD_PC/PLC (COM3 RS232) |
| Pin9 | Tx+ |

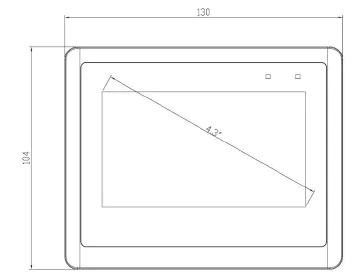

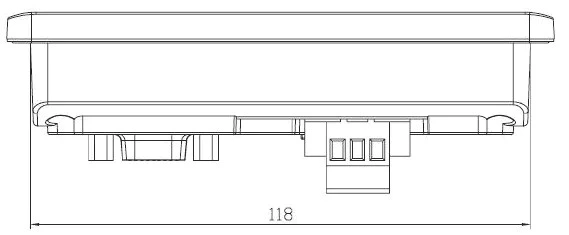

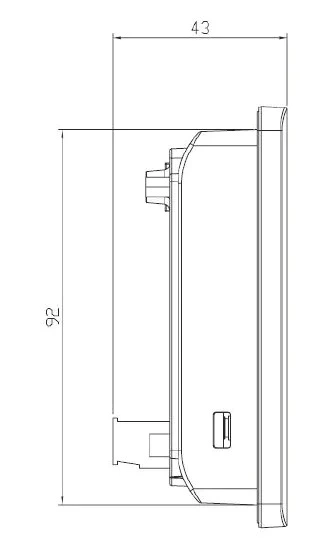

Dimension

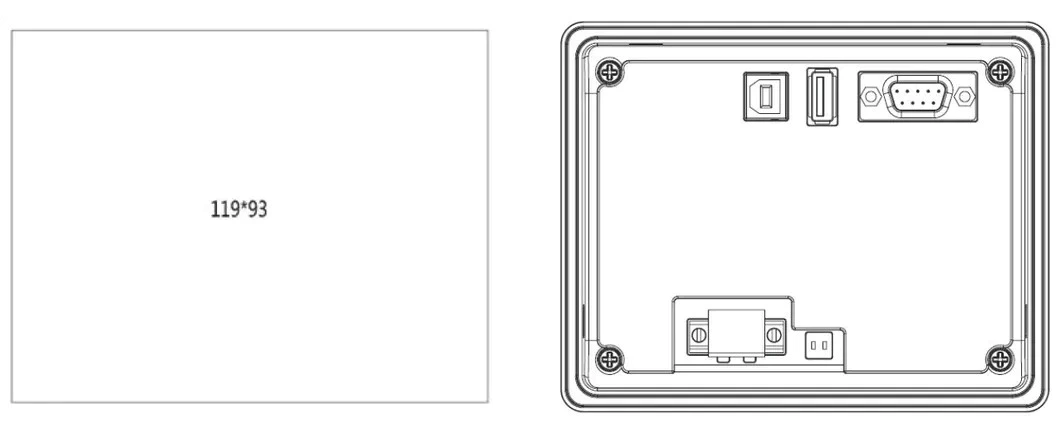

Hole Dimension
