Note

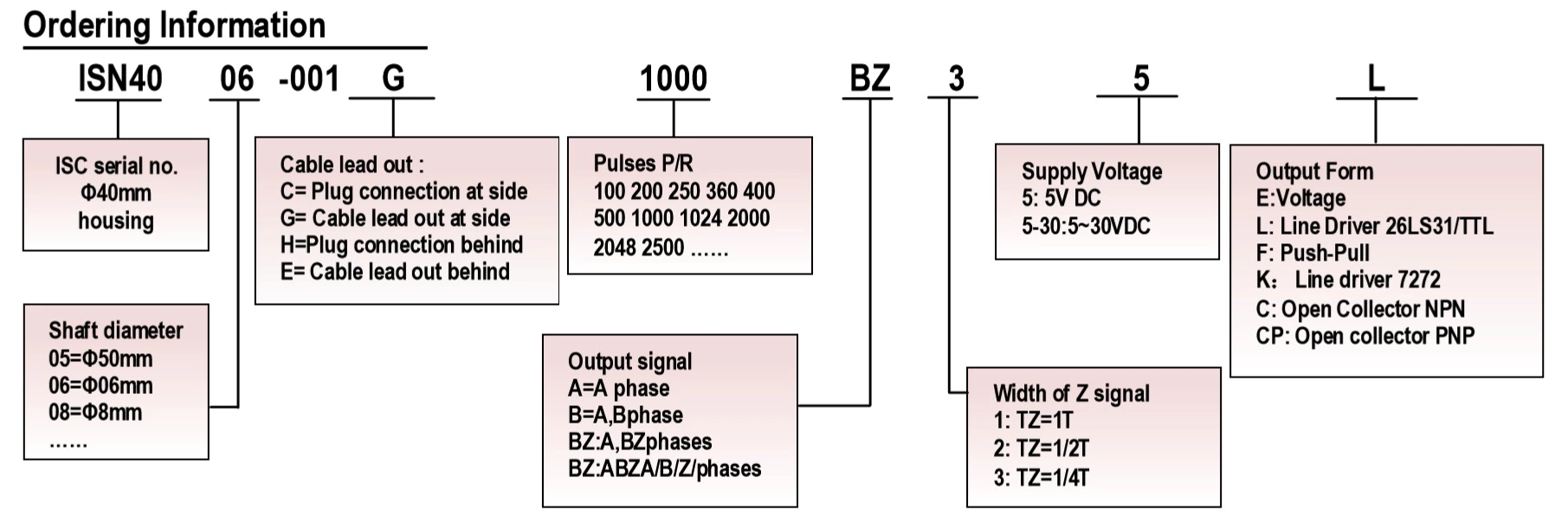

1, Please contact sales representative to confirm the correctness and availability of the part number
2, Line Driver is only available with 5V DC option
Feature
●ASIC devices internal, good reliability, long life, anti-jamming performance.
●Stainless steel shaft has a higher stability and protection.
●Metal shell is more solid and anti-impact.
●Outlet end use waterproof metal interface protection
●Bearing load heavy, anti-oil and water.
●Applicability to a wide variety of mechanical and industrial control.
●Resolution up to 5400 pulse.
●10 ~ 5400 pulses Optional: (Other pulses available on request)
Technical Specifications
| Parameter | Value | Note |
| Supply Voltage | DC5V / 7~24V (±10%) | Max. response frequency is gated by max. rotation speed |
| Max. Response Frequency | 100 kHz | |
| Max. Rotation Speed (*1) | 3000 rpm | |
| Max. Current Consumption | 120mA (Unloaded) | |
| Max. Rise-Fall Time | 200ns (Line Driver) | |
| Max. Rise-Fall Time | 1us (Other Output Mode) | |
| Operating Temperature | -20 ~ 85° C (unfrozen) | |
| Storage Temperature | -20 ~ 85° C (unfrozen) | |
| IP Rating | IP54 | |
Connection Table
| Color of Lead Wire | GN | WH | YE | RD | BK | Shield | BN | GY | OG |
| Output-Line Driver | A+ | B+ | Z+ | Vcc | 0V | NC | A- | B- | Z- |
| Output-Other Output | A | B | Z | Vcc | 0V | NC | n/a | n/a | n/a |

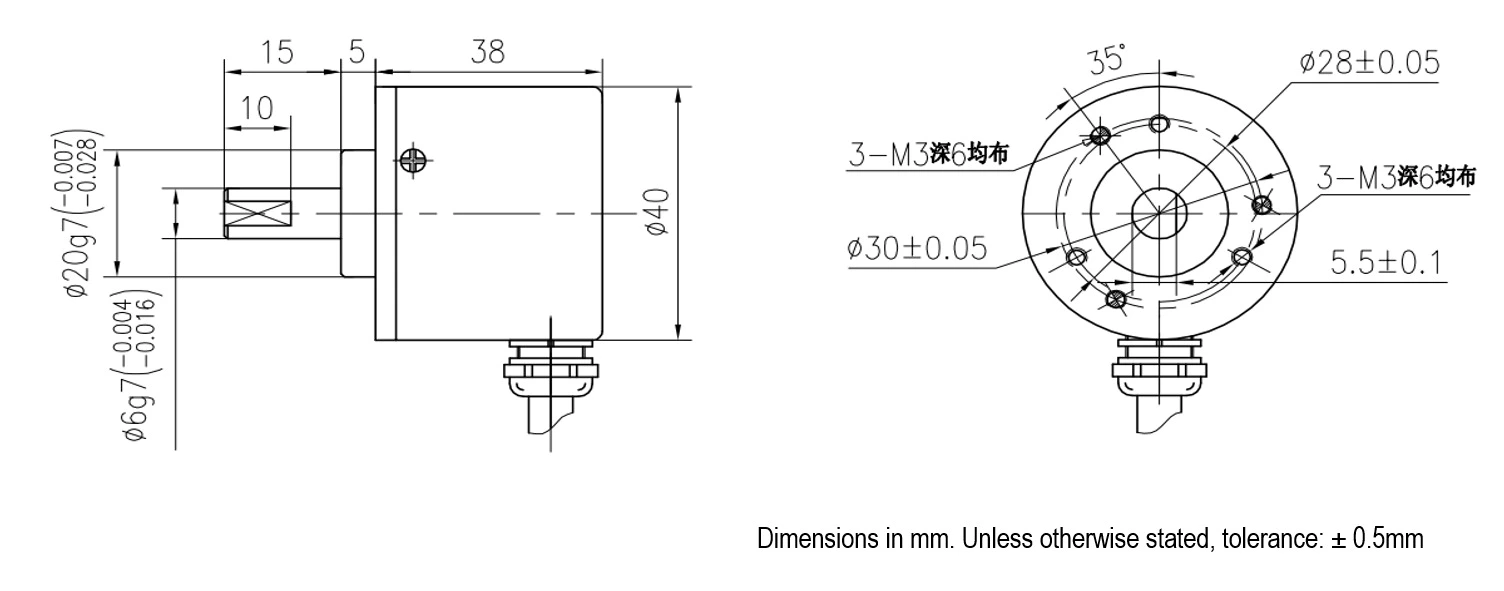

Diamensios

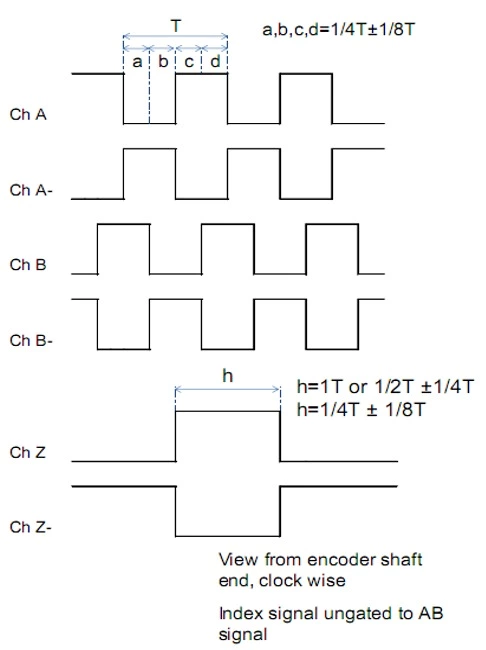

Output Waveform
