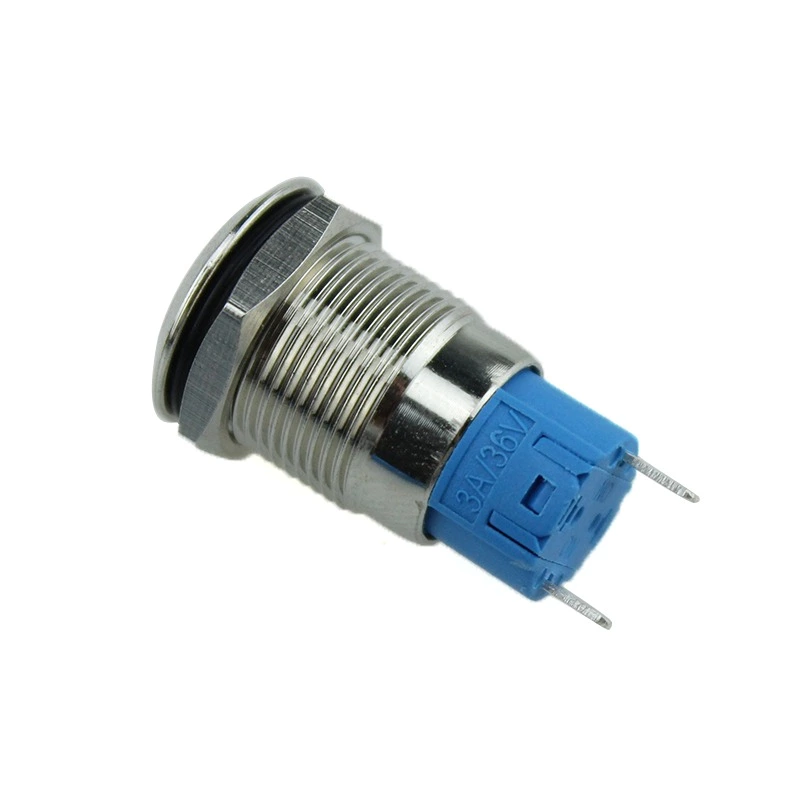

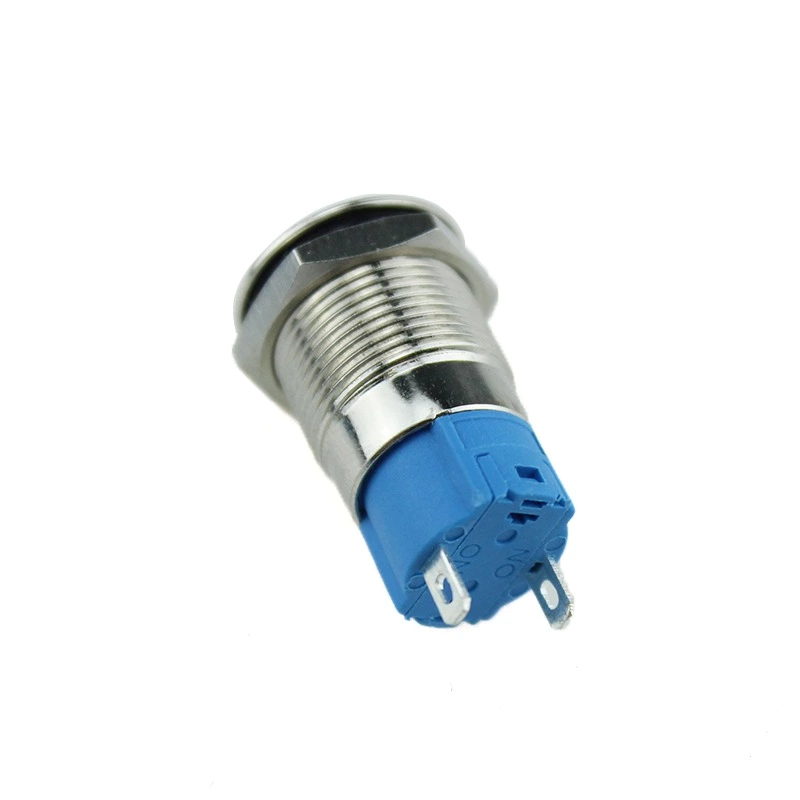

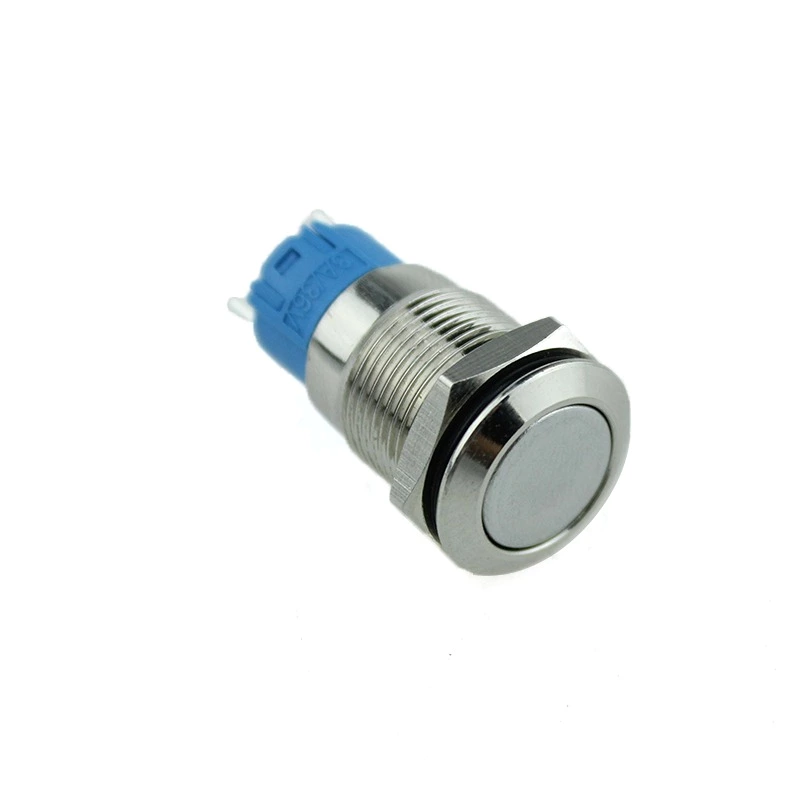

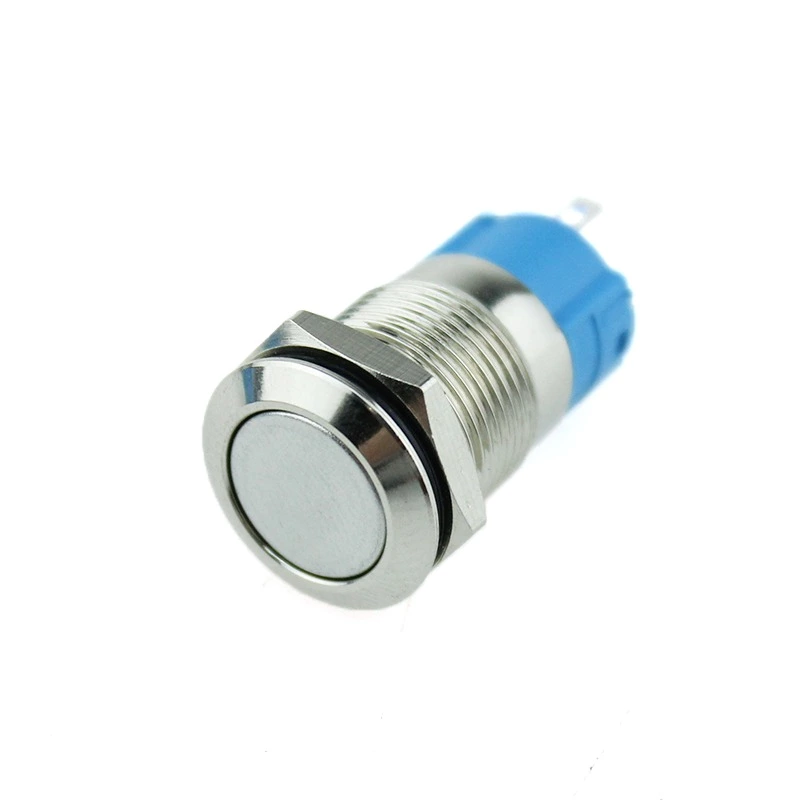

Flat Round Button 2Pin 12mm 36V Led Waterproof Metal Push Button Switch ON OFF
- Model:
- ABS12C-P1Z
flat Round Button 2Pin 12mm 36V Led Waterproof Metal Push Button Switch ON OFF
| Switching Operation | |||
| Type | Diagram | sign | Explanation |
| 1NO |  |
 |
Double breakpoint slow moving contact switch with two terminals |
| 1NO 1NC |  |
 |
Single breakpoint snap change contact switch with three terminals |
| 1NO 1NC |  |
 |
Double breakpoint snap change contact switch with four terminals |
| Switching Operation | ||||||
| Rated insulation Voltage | 250 | |||||
| Heating current Ith | Temperature does not exceed the maximum allowed current | |||||
| Rated voltage | 12V | 24V | 110V | 220V | ||
|
Rated current |
AC 50/60Hz |
Resistive load | - | - | 5A | 3A |
| Inductive load | - | - | 3A | 2A | ||
| DC | Inductive load | 5A | 5A | 1A | 0.5A | |
| Inductive load | 2A | 2A | 0.2A | 0.1A | ||
| Contact material | Silver Plated Gold | |||||
| Lamp Ratings | |
| Lamp Type | LED lamp(AC/DC) |
| Rated Voltage | 3V,6V,12V,24V,36V,110V,220V AC/DC |
| Rated Current | About 15mA |
| LED Color | R G Y O B W P |
| Life | 40000hours |
