◆Introduction
The mechanical quantity to be measured, such as displacement, pressure change into an electrical capacitance sensor.
Therefore, capacitive sensors can be divided into pole pitch change type, area change type, change the media type categories. Pole pitch change type is generally used to measure the tiny lines or due to force displacement, pressure, vibration caused by the pole pitch changes (see capacitive pressure sensor). Area change type is generally used to measure the angular displacement or larger linear displacement. Change media type commonly used in level measurement and a variety of medium temperature, density determination and humidity.
◆Feature
1. Inductive proximity sensor
2. CE Certification
3. Un-flush type
4. Output Form:NO,NC,NO+NC
5. PNP and NPN
◆Technical Parameter
|

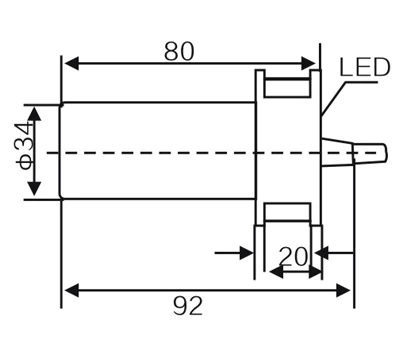

OVERALL DIMENSIONS |
 |
|||
| DETECTION DISTANCE | ||||
|
F l u s h |
DC 6- 36 VDC AC 90- 250 VAC |
NPN | NO | |
| NC | ||||
| NO+NC | ||||
| PNP | NO | |||
| NC | ||||
| NO+NC | ||||
|
SCR Control- lable silicon |
NO | |||
| NC | ||||
| DETECTION DISTANCE 0-20mm | ||||
|
F l u s h |
DC 6- 36 VDC AC 90- 250 VAC |
NPN | NO | CM34-3020NA |
| NC | CM34-3020NB | |||
| NO+NC | CM34-3020NC | |||
| PNP | NO | CM34-3020PA | ||
| NC | CM34-3020PB | |||
| NO+NC | CM34-3020PC | |||
|
SCR Control- lable silicon |
NO | CM34-2020A | ||
| NC | CM34-2020B | |||
| Detectable object’ | conductor and dielectric body | |||
| Consumption current | (NPN PNP) DC12V8mA，24V DC<15mA、AC<10mA | |||
| Controloutput | :200mA，300mA | |||
| Output voltagc dropDC/AC | （NPN PNP) DC<3V、AC<7V | |||
| DC/AC Response frequency | 50Hz，10Hz | |||
| Shell material | ABS Plastic | |||
| Working environment temperature | -25℃～70℃ | |||
| Insulation resistance | 50MΩ | |||
| Protection structure | IEC IP54 IECstandard lp54 | |||
| Altemative model at home and abroad | E2K-C25口口 | |||
