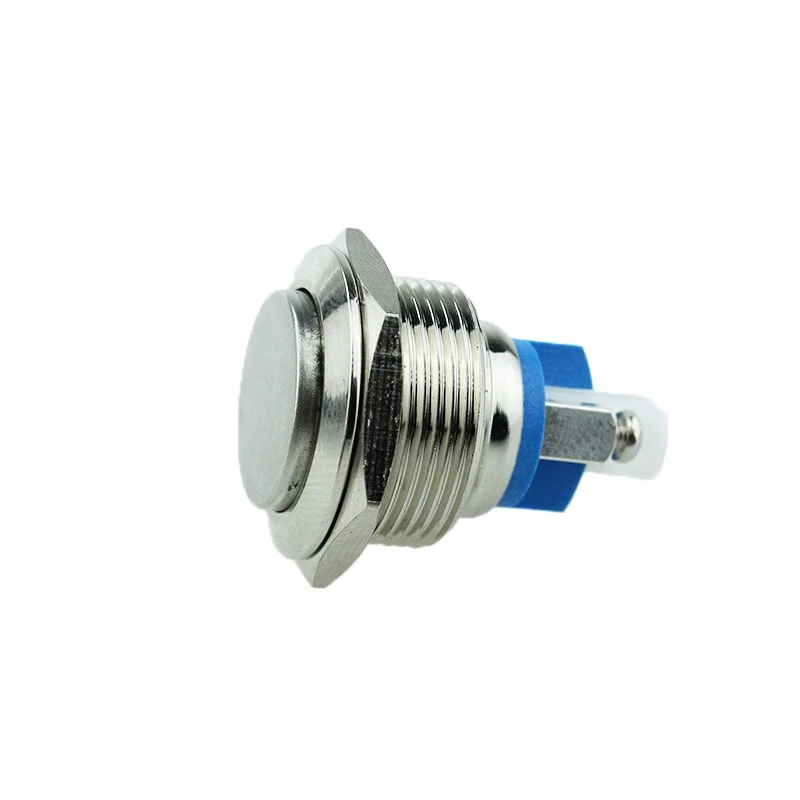

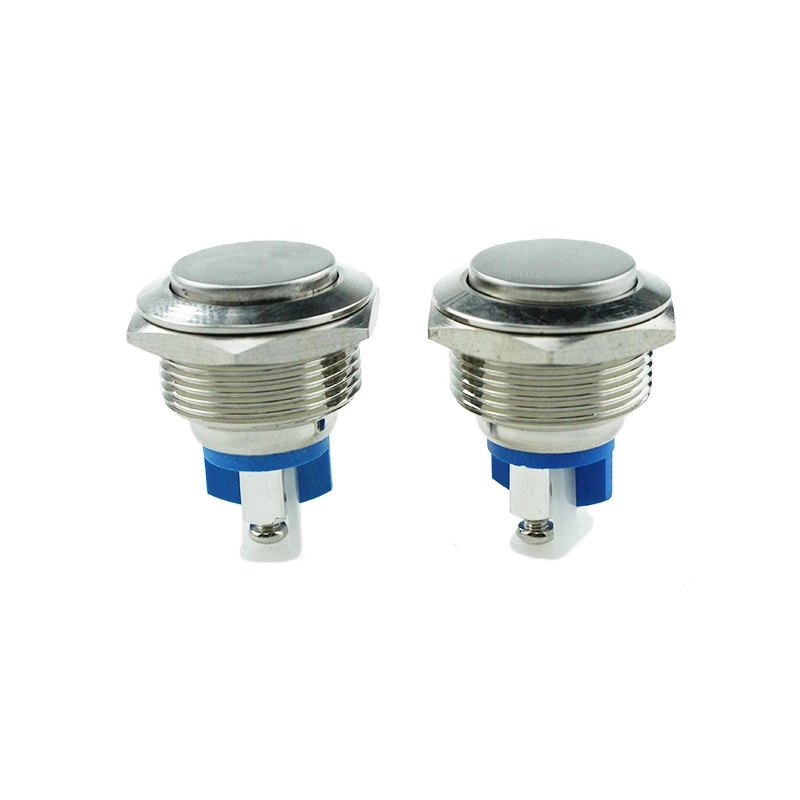

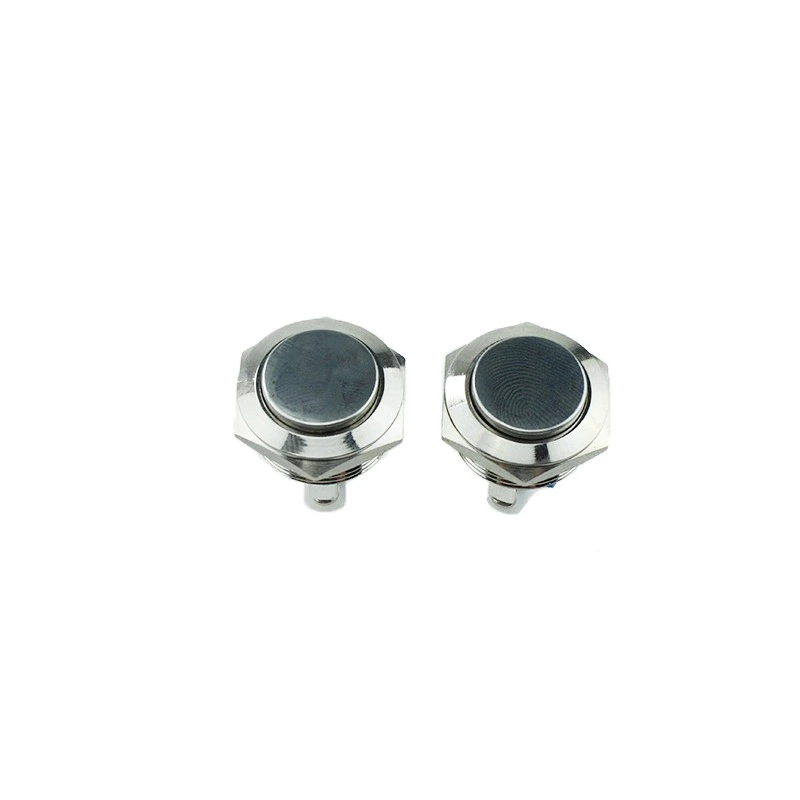

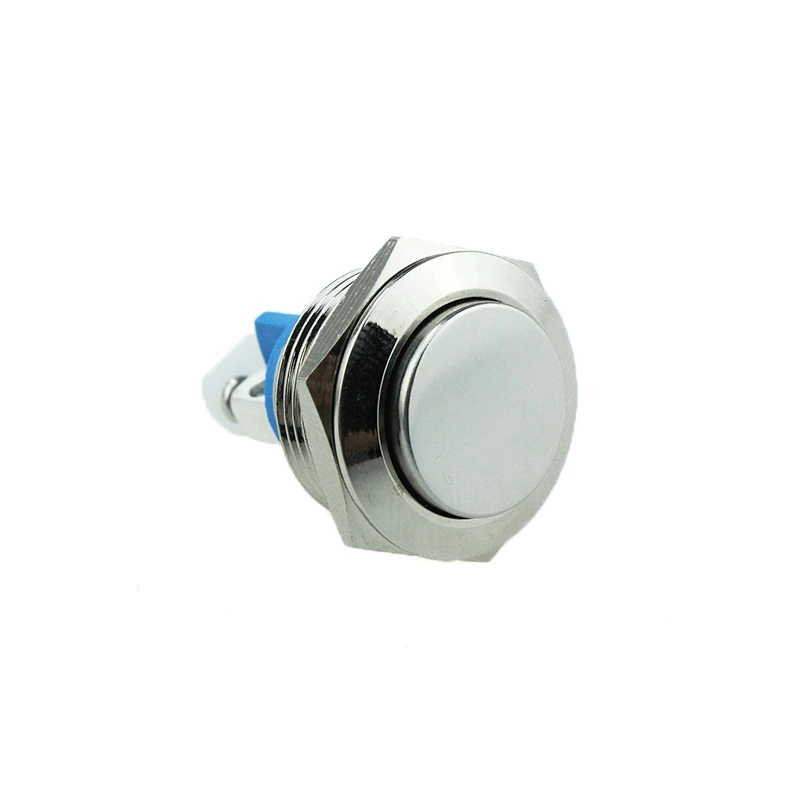

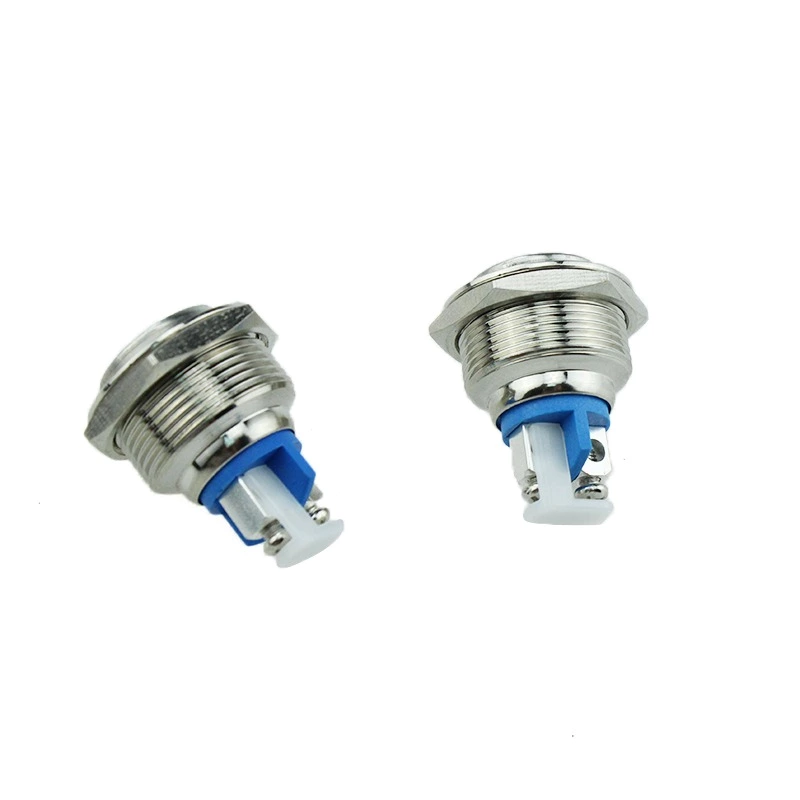

19MM Dome Button 2Pin Screw Terminal Momentary Waterproof Metal Button Switch

Model:
JS19H-10N

Hot Sale 19mm 250V LED Momentary Latching Push Button Switch

      Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance ,graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on .

       For your convenient selecting our products ,in the right page’s icon brief listed the drawing and the page number , the product introduction with details like model, the panel mounting dimensions, the electronic structure, the electrical specifications as well as the related parameters can be found according to the related page .



Specification JS19H-10/
The Front Shape High Round
Terminal Type Screw Termlnals
Switching No.1
Max.Switch Rating 2A/36VDC
Contact Resistance ≤50MΩ
Insulating Resistance ≥1000MΩ
Dielectric Strengh 2000VAC
Operating Temp  -20℃~+55℃
Mechanical life 1,000,000 cycles
Elctrical life 200,000 cycles
Elctrical life 1~6mm
Tortque  5~14Nm
Operation Pressure About4N
Operation Distance About1.5mm
IP Degree IP65
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Steel(Nickel Plated Gold Plated)
Base PBT
