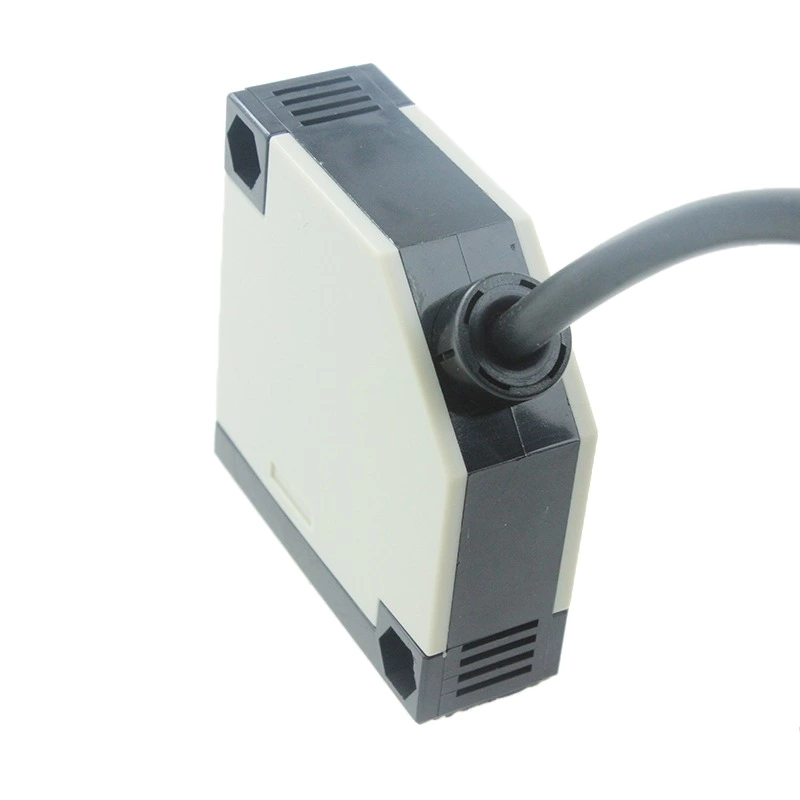

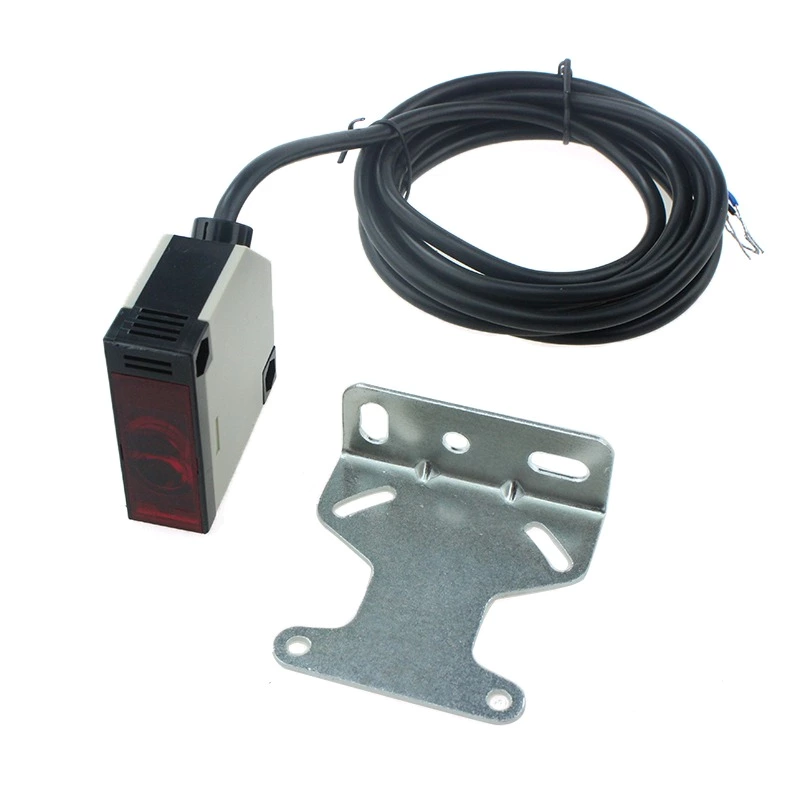

G50-3A30PC PNP NO+NC output Photoelectric Switch Sensor
| CODE | G50 | |||
| Detection distance | 30-50cm | |||
| Diffuse Type | 10-30 VDC |
NPN | NO | G50-3A30NA |
| NC | G50-3A30NB | |||
| NO+NC | G50-3A30NC | |||
| PNP | NO | G50-3A30PA | ||
| 90-250 VAC |
NC | G50-3A30PB | ||
| NO+NC | G50-3A30PC | |||
| SCR controllable silicon |
NO | |||
| NC | ||||
| Relay output | G50-2A30JC | |||
| Detection distance | 4M | |||
| Retroreflictive | 10-30 VDC |
NPN | NO | G50-3B4NA |
| NC | G50-3B4NB | |||
| NO+NC | G50-3B4NC | |||
| PNP | NO | G50-3B4PA | ||
| 90-250 VAC |
NC | G50-3B4PB | ||
| NO+NC | G50-3B4PC | |||
| SCR controllable silicon |
NO | |||
| NC | ||||
| Relay output | G50-2B4JC | |||
| Detection distance | 5M | |||
| Trough beam | 10-30 VDC |
NPN | NO | G50-3C5NA |
| NC | G50-3C5NB | |||
| NO+NC | G50-3C5NC | |||
| PNP | NO | G50-3C5PA | ||
| 90-250 VAC |
NC | G50-3C5PB | ||
| NO+NC | G50-3C5PC | |||
| SCR controllable silicon |
NO | G50-2C5LA | ||
| NC | ||||
| Relay output | G50-2C5JC | |||
| DC/SCR Control output | DC:200mA AC:300mA relay:2A | |||
| DC/AC Consumption current | DC<15 mA AC<10 mA | |||
| DC/AC Response time | DC<2ms AC<20ms | |||
| Directional angle | 3°-10° | |||
| Detected object | transparent or opaque body | |||
| WoJrking envlrOnment temDerature | -25ºC~+55ºC | |||
| Intensity ofillumination of working environment | Sunlight under 10000LX incandescent lamp under 3000LX | |||
| Shell materia | Plastic | |||
| Protection grade | IP54 | |||

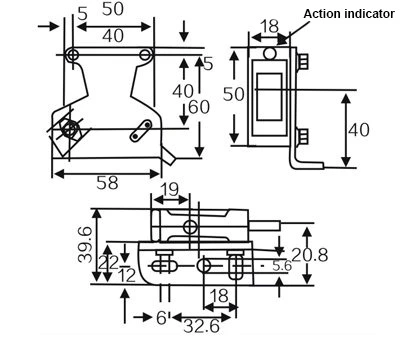

Overall dimensions: (unit:mm)
