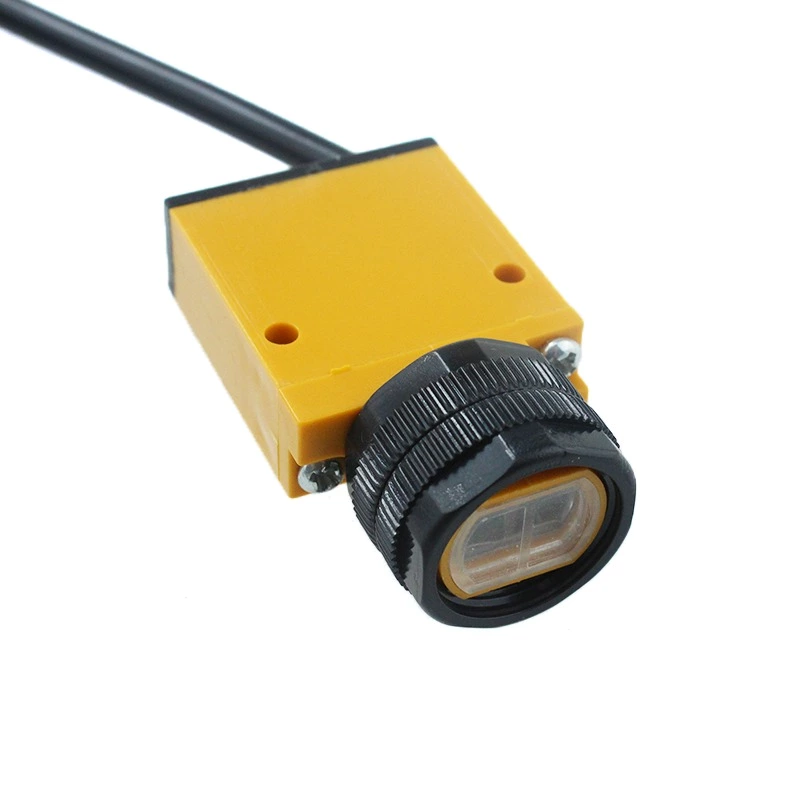

G14-3A10NC Diffused reflection Type NO+NC output Photoelectric switch
Diffuse Type
Diffuse reflection type photoelectric switch integrates the transmitter and the reciver. Light reflected by the photoelectric switch is reflected back to the receiver by the detected object.
Electrical Datasheet
| Outward appearance illustration | G14 | |||

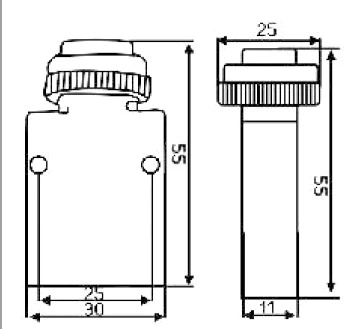

| Overall dimensions |  |
|||
| Diffuse type | Detection distance | 10cm | ||
| 10-30VDC | NPN | NO | G14-3A10NA | |
| NC | G14-3A10NB | |||
| NO+NC | G14-3A10NC | |||
| PNP | NO | G14-3A07PA | ||
| 90-250VAC | NC | G14-3A07PB | ||
| NO+NC | G14-3A07PC | |||
| Retroreflective type | Detection distance | 1m | ||
| 10-30VDC | NPN | NO | G14-3B1NA | |
| NC | G14-3B1NB | |||
| NO+NC | G14-3B1NC | |||
| PNP | NO | G14-3B1PA | ||
| 90-250VAC | NC | G14-3B1PB | ||
| NO+NC | G14-3B1PC | |||
| Through beam | Detection distance | 3m | ||
| 10-30VDC | NPN | NO | G14-3C3NA | |
| NC | G14-3C3NB | |||
| NO+NC | G14-3C3NC | |||
| PNP | NO | G14-3C3PA | ||
| 90-250VAC | NC | G14-3C3PB | ||
| NO+NC | G14-3C3PC | |||
| DC/SCR Control output | DC:200mA | |||
| DC/AC Consumption current | DC<15mA | |||
| DC/AC Response time | Dc<2ms | |||
| Directional angle | 3° -10° | |||
| Detected object | transparent or opaque body | |||
| Working environment temperature | -25ºC~+55ºC | |||
| Intensity of illumination of working environment | Sunlight under 1000LX incandescent lamp under 3000LX | |||
| Shell material | Plastic | |||
| Protection grade | IP54 | |||
