| Dimension |
28*57*85mm |
| Detection distance |
10mm±2mm |

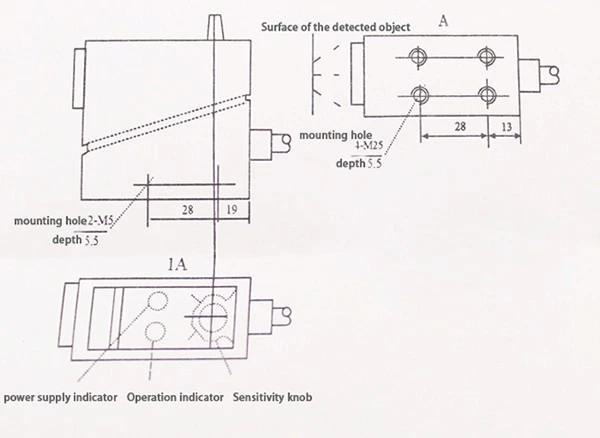

| Dimensional drawing |
 |

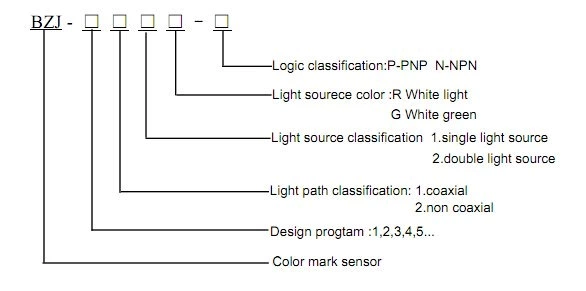

| Model |
BZJ-211G |
BZJ-211R |
| Light source |
Green |
Red |
| Output Type |
NPN |
| Output Time |
50us |
| Detection distance |
10mm ± 2mm |
| Switching output current |
<200mA |
| Switching output level |
Low (pass): <1.5V, high level (off): Power supply voltage -0.7 (RL = ∞) |
| Supply voltage and current |
10—30VDC,80mA |
| Protection |
Inverting polarity protection, load protection, short circuit protection, automatic temperature compensation. |
| Working environment |
Temperature: 0-50 ℃, sunshine <10000Lux |
| Dimensions |
85 * 57 * 28mm, wire 2m |
