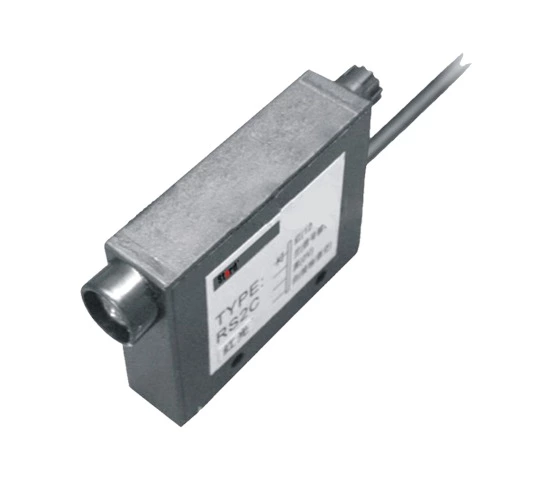

RG2C series of color-sensor
Small light sport,adapt to precise positioning in the case of defocusing and jittering.
High working frequency,precise positioning for the fast moving marks.
Use synchronic technology,strong ability to resist optical interference.
With coaxial design,can be reliably used for aluminum foil and other reflective films.
High sensitivity,color resolution is above gray scale of grade 16.
With act on lighting/act on darken functions optical.
Technical Parameters
| Type RS2C-N11 | |
| working frequency | 2000Hz |
| detection range | 9mm |
| power voltage | 12-24V |
| source | red,green,blue,and white |
| spot | 1.5mm |
| power output | NPN（output），100mA |
| circuit protection | Power reverse connection protection,output short-circuit protection |
| the temperature | （save)-30℃~100℃，（work）0~60℃ |
| size | 68*50*16mm |

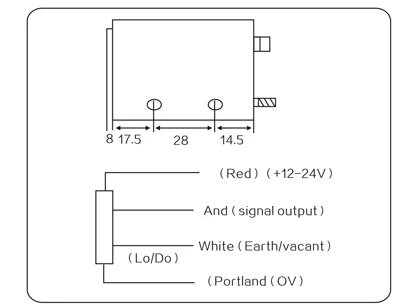

Size appearance
