Specifications
Use new-style connector to save wiring space and make it more maintainable.
Main Features
Use new-style connector to save wiring space and make it more maintainable.
Adopt the super digital display of the Automatic power control circuit.
Power saving up t0 70%.
Be able to shut off or dim the digital dis play while in working.
Use a controller of modern mobile style to explore the functions of Fiber Optic Amplifier.

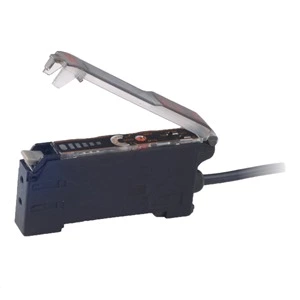

| Project | General-purpose NPN output | Model:E3X-D11-N |
| Voltage | Red light-emitting diode(660nm) | |
| light source(ight-emitting wavelength) | DC12~24v±10%(P-P ) 10%LXT DC12~324v±lO%pulse(P-P)10% of the following | |
| Control output NO/OFF output | 50mA(NPN/PNP,1V),(NPN/PNP Power load 50mA(residual current voltage NPN/PNP, each of the following lV) open-collector output(NPN/PNP output ,according to the different forms)into the light when ON/ switch switch shade when ON | |
| Protection of the loop | Power connection protection, output short-circuit protection features to prevent interference in each other | |
| Response time | Ultra-high-speed mode (reset action:0.25ms)standard mode(reset action:1ms)ultra-long-range model (reset action:4ms) | |
| Sensitivity settings | Teaching and procedures adjusting | |
| indication lamp | Light said that the action(orange),7figures, saidthe amount of light(red),7 figures expressed as a percentage of theamount oflight(red), theam-ountoflight and bright dual-threshold level that Article (green, red color 2),7 digital threshold that (Red) | |
| Time indicator | Can usually/maintain peak/low to keep switching between the | |
| Direction indicator | Usually/reverse switch | |
| The use of environmental illumination | irradiation:incandescent: 10,OOOlx under the sun: 20,OOOlx following | |
| Ambient temperature | Action: 1t03 connection -25~+45°C,4~11,when connected -25~+50°C,12~16°C,when connected -25~+45°C,save time:-30~+70°C(but not ice pick, then open the case) | |
| Environmental humidity | Work,save time:35~85%RH(but not to form water) | |
| Insulation resistance | 20MΩ (DC500V) 20MΩ above (DC500V) | |
| Voltage | ACl,OOOV 50/60Hz 1min | |
| Vibration(durable) | 10~55Hz double amplitudel.5mm X,Y,Z direction of the 2h | |
| The impact of(durable) | 50m/s2 X,Y,Z direction of the 2h | |
| Connection | Lead-wire(standard wire length 2m) | |
|
Weight(packed state) |
100g | |
| Materials | Shell | PB-II of salt |
| Theprotective shield | Polyester | |
| Accessories | Manual | |
