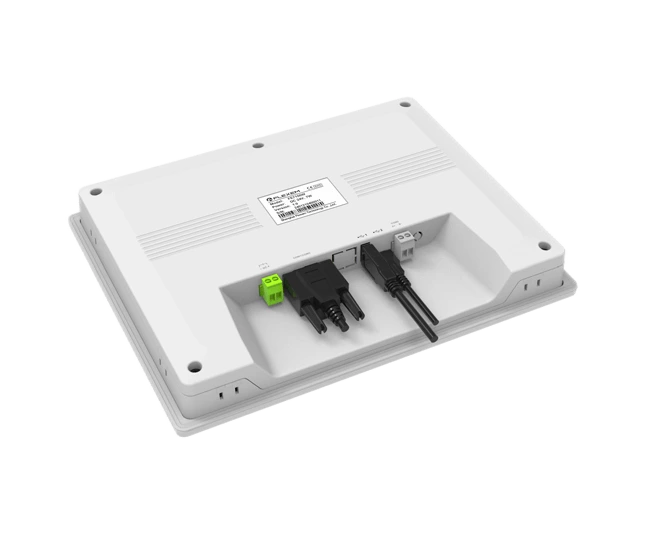

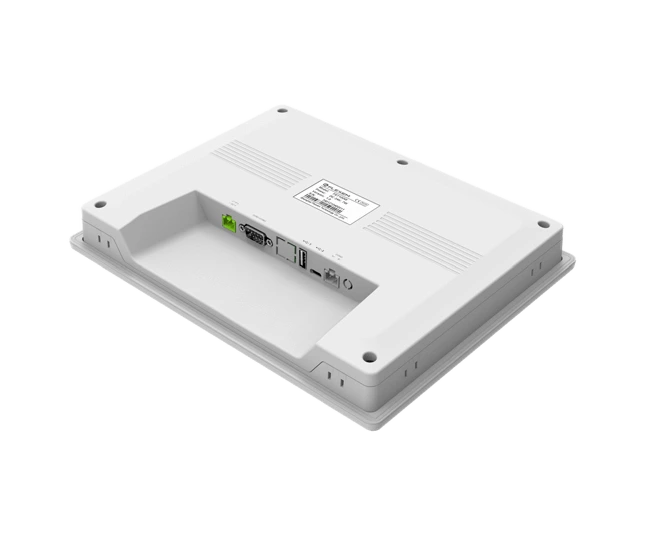

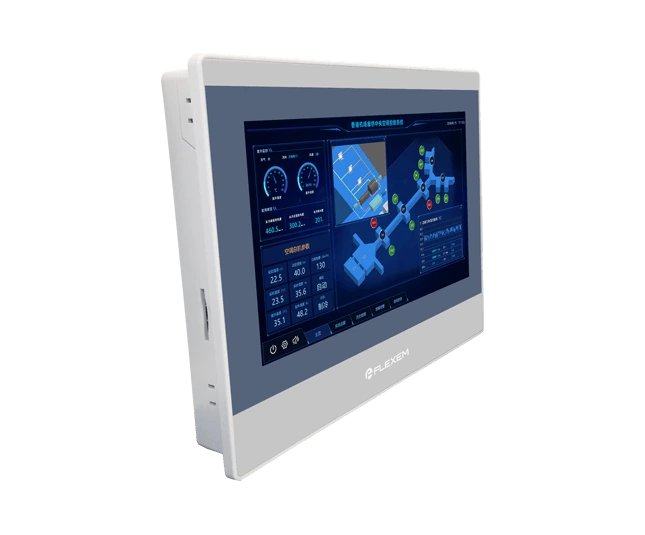

Flexem FE7100W 10.1” 16:9 TFT LCD Resistive Touchscreen Human Machine Interface HMI

Name: Flexem FE7100W 10.1” 16:9 TFT LCD Resistive Touchscreen Human Machine Interface HMI
SKU: 00891
Rating: 4.8 (0 reviews)

Inquiry

Display	10.1” 16:9 TFT LCD
LCD Viewing Angles (T/B/L/R)	85'/85'/85'/85'
Resolution	1024×600
Colors	24-bit
Brightness	400 cd/m²
Touch Panel	4-wire industrial resistive Screen
CPU	1GHz, 2-core Cortex-A7
Memory	4GB eMMC + 128MB DDR
Ethernet Port	N/A
USB Port	1 Type-C OTG port, 1 USB Type-A port
Program Download Method	USB slave / Flash drive
Serial Port	COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232

Rated Power	< 10W
Rated Voltage	DC24V, operational range: DC 9V~28V
Power Protection	Lightning surge protection
Power Interruption Tolerance	< 5mS
Certification	EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV

Operating Temperature	0~50℃
Storage Temperature	-20~60℃
UV Resistance	Operating in high UV environment is prohibited (e.g., in direct sunlight)
Environmental Humidity	10~90%RH (non-condensing)
Vibration Endurance	10~25Hz (X/Y/Z direction 2G/30 minutes)
Cooling Method	Natural air cooling

Protection Level	IP65 (with flush panel cabinet installation), Rear: IP20
Enclosure Material	Engineering plastic
Cutout Dimensions	260mm×202mm
Dimensions	273mm×213mm×36mm
Weight	About 890g
