Original HOKUYO PLX-403W Retro-reflection type free power source photoelectric switch sensor
- Model:
- PLX-403W
- Brand:
- HOKUYO
Original HOKUYO PLX-403W Retro-reflection type free power source photoelectric switch sensor
Specifications
| Type | Through-beam type |
Retro-reflection type (with polarized filter) |
Dif fuse-reflection type | ||
| Model No. | PLX-305W | PLX-105W | PLX-403W | PLX-701L | PLX-701R |
| Light source | Infra-red LED | Red LED | Infra-red LED | ||
| Power source |
24 to 220VAC(±10%, 50/60Hz) 12 to 110VDC(±10%, Ripple 10% or less) |
||||
| Power consumption | 4W or less for both projector and receiver | 5W or less | |||
| Detecting distance | 30m or less | 10m or less | 0.1 to 4m or less*1 |
70cm or less (white paper with 10cm) |
|
| Response time | 20msec or less | ||||
| Operating mode | Light-ON/Dark-ON by changeover switch | Dark-ON | Light-ON | ||
| Control output |
1C relay, 250VAC 3A or less(Resistance load), 30VDC 3A or less(Resistance load) Mechanical life : 50 million times, Electrical life : 0.1 million times |
||||
| Sensitivity adjuster | Not provided(Fixed) | Provided | |||
| Connection | Cable type(0.3mm2×5 cores, 2m long)*2 | ||||
| Protective structure | IP66(IEC standard) | ||||
*1 When using RRP-50S-V
*2 Cable of projector for through-beam type is 2 cores.

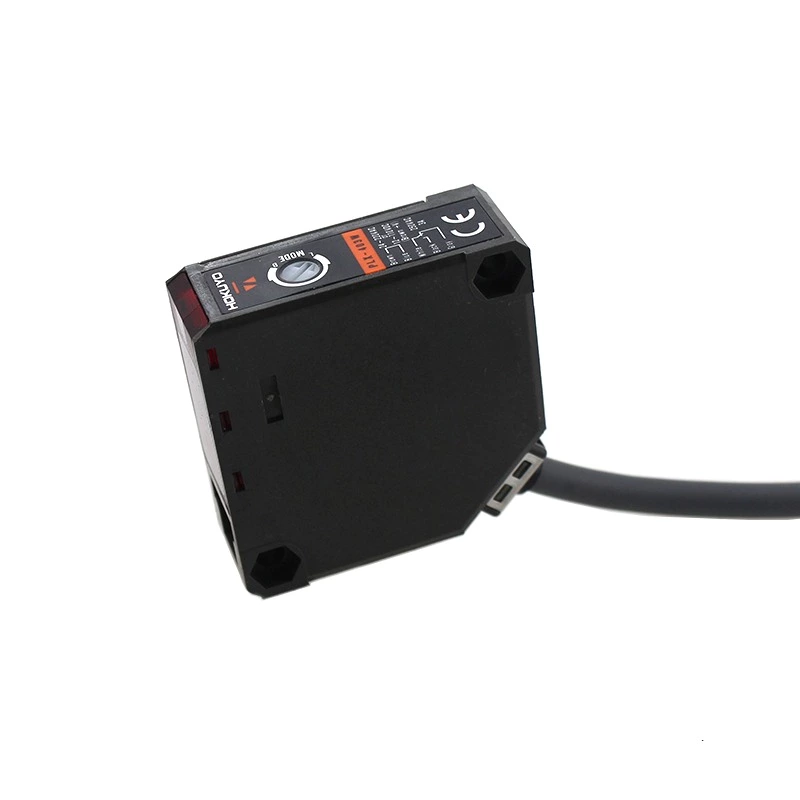

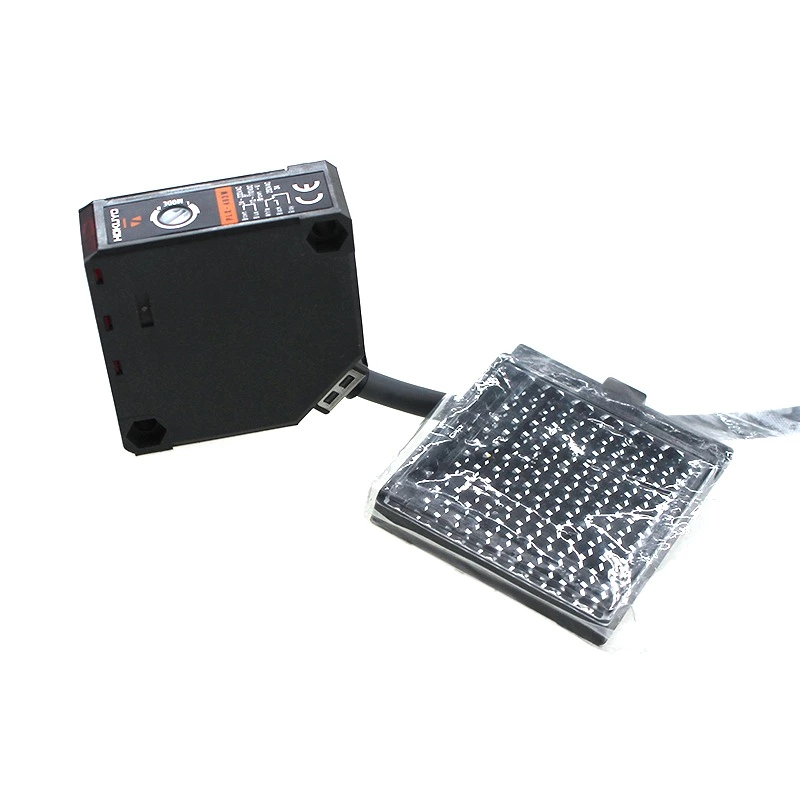

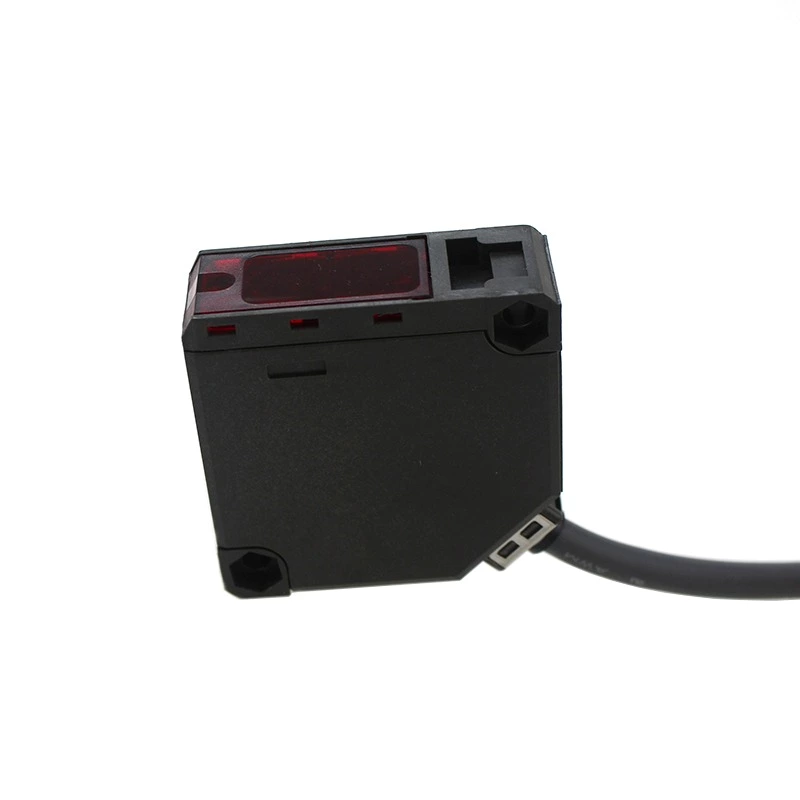

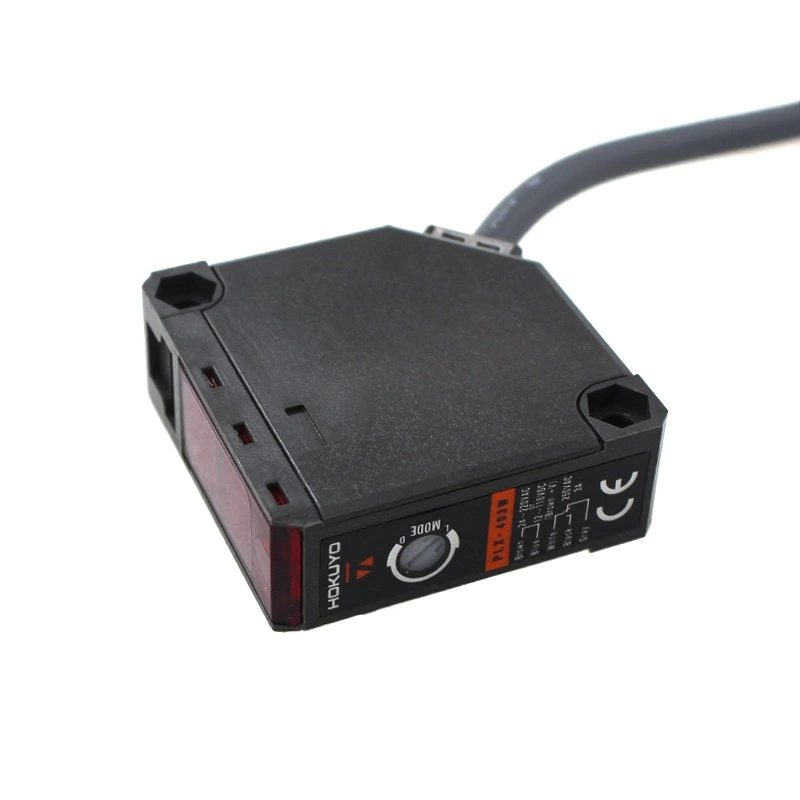

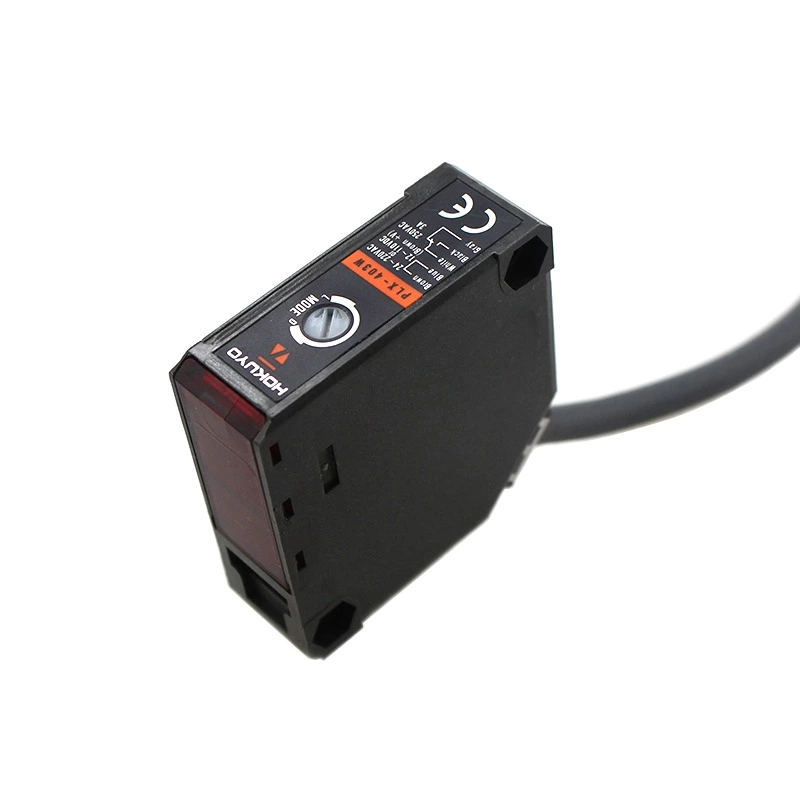

Product Pictures
