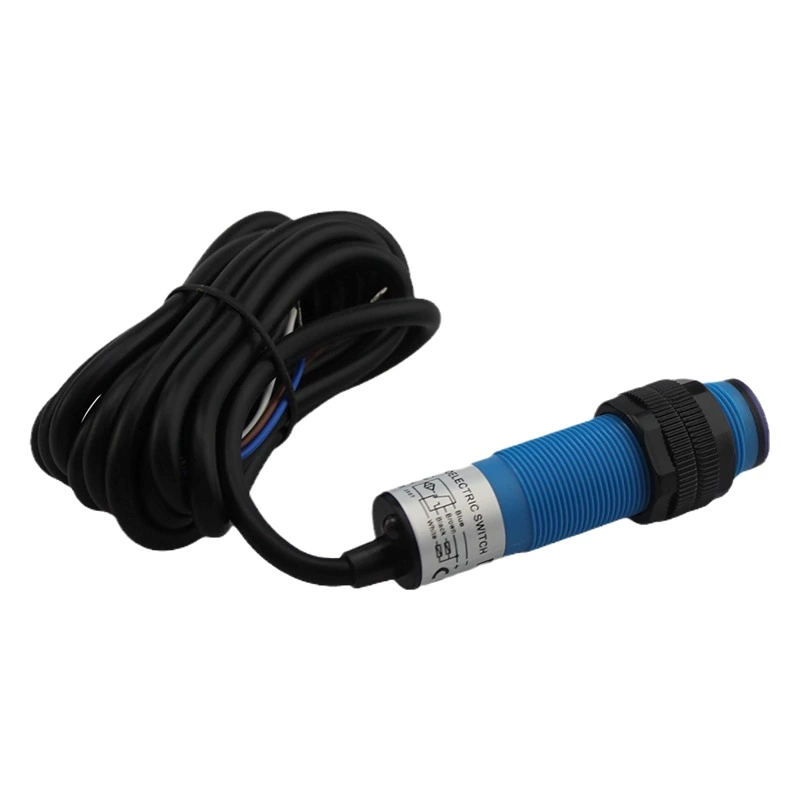

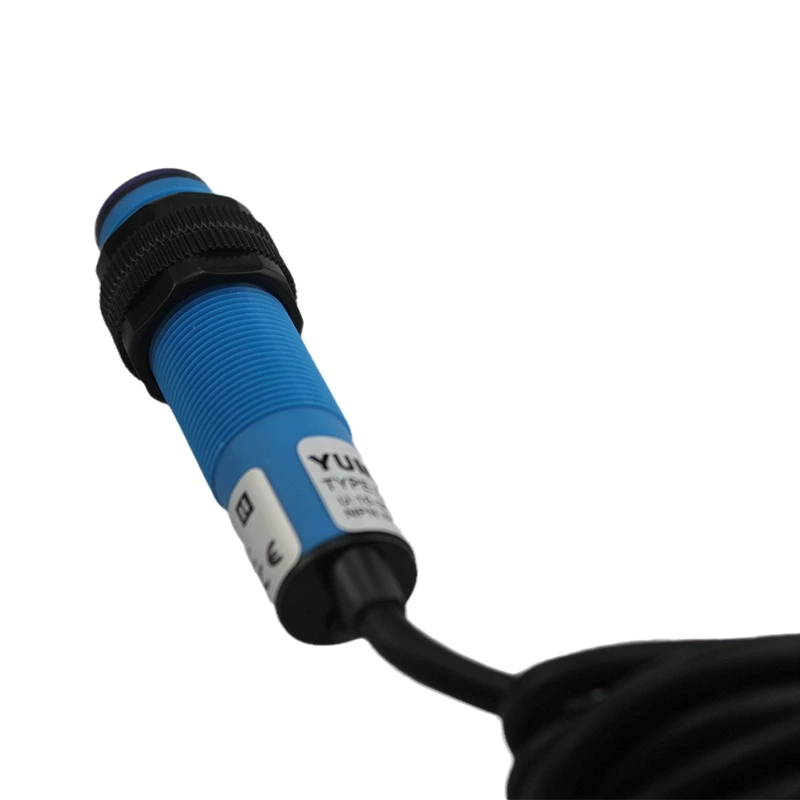

G18-3A10NC Photoelectric Electronic Sensor Switch
| Model NO. | G18-3A10NC |
| Working voltage | 90-250VAC |
| Output form | PNP |
| Output state | NO+NC |
| Detection way | diffused reflection type (scattered reflection type) |
| Housing Material | Plastic |
| Protection grade | IP54 |
| Detection distance | 10cm |
G18 series Photoelectric Sensor switch
| Code | G18 | |||

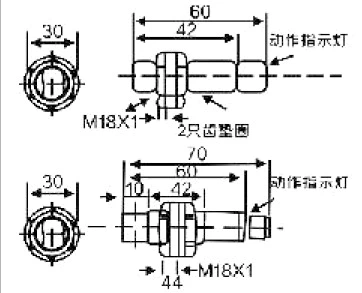

| Overall dimensions |  |
|||
| Diffuse type | Detection distance | 10-30cm | ||
| 10-30VDC | NPN | NO | G18-3A10NA | |
| NC | G18-3A10NB | |||
| NO+NC | G18-3A10NC | |||
| PNP | NO | G18-3A10PA | ||
| 90-250VAC | NC | G18-3A10PB | ||
| NO+NC | G18-3A10PC | |||
| SCR Contro Hable silicon | NO | G18-2B10LA | ||
| NC | G18-2B10LB | |||
| Retroreflective type | Detection distance | 2m | ||
| 10-30VDC | NPN | NO | G18-3B2NA | |
| NC | G18-3B2NB | |||
| NO+NC | G18-3B2NC | |||
| PNP | NO | G18-3B2PA | ||
| 90-250VAC | NC | G18-3B2PB | ||
| NO+NC | G18-3B2PC | |||
| SCR Contro Hable silicon | NO | G18-2B2LA | ||
| NC | G18-2B2LB | |||
| Through beam | Detection distance | 5m | ||
| 10-30VDC | NPN | NO | G18-3C5NA | |
| NC | G18-3C5NB | |||
| NO+NC | G18-3C5NC | |||
| PNP | NO | G18-3C5PA | ||
| 90-250VAC | NC | G18-3C5PB | ||
| NO+NC | G18-3C5PC | |||
| SCR Contro Hable silicon | NO | G18-2B5LA | ||
| NC | G18-2B5LB | |||
| DC/SCR Control output | DC:200mA AC:300mA | |||
| DC/AC Consumption current | DC<15mA AC:<10mA | |||
| DC/AC Response time | Dc<2ms AC<2mS | |||
| Directional angle | 3°-10° | |||
| Detected object | transparent or opaque body | |||
| Working environment temperature | -25~+55ºC | |||
| Shell material | Plastic or Metal | |||
| Protection grade | IP54~IP67 | |||
