Model:
| G 18 3 A 10 N A | ||
| 1 2 3 4 5 6 7 8 | ||
| No. | Composition | Code and definition |
| 1 | Basic form | G: infrared ray photoelectric switch |
| 2 | Outward appearance code | 18,50,76 |
| 3 | Working voltage | 2.90-250VAC 3:10-30VDC 4:12-240VDC/24-240VAC 5:Special voltage |
| 4 | Detection way | A: diffused reflection type(scattered reflection type) |
| B: feedbace reflection type mirror(mirror reflection type) | ||
| C: penetration type(correlation type) D: marking detection type | ||
| G: optical fiber type | ||
| 5 | Detection distance | 05: 5cm 10: 10cm 30: 30cm 101: 10m |
| 6 | Output form | N: NPN transistor output P:PNP transistor output J: Relay contact output L:AC two-wire output S: with two outputs: NPN and PNP |
| 7 | Output state | A: Normally open(light entering ON) B: Normally close(light sheltering ON) |
| C: Normally open+ normally close | ||
| 8 | Subsidiary | T1: front delay T2: rear delay Y: |
| T: with aviation connector I: special requirement | ||
Technical Parameter
|

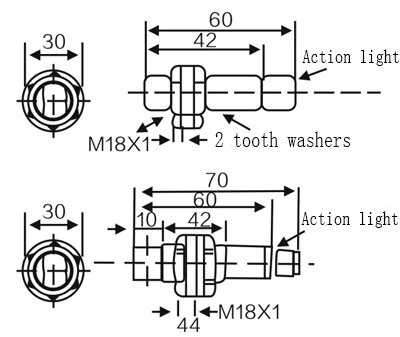

OVERALL DIMENSIONS |
 |
|||
|
D i f f u s e T y p e |
Detection distance | 10cm-10cm | ||
|
10- 10 VDC |
NPN |
NO | G18-3A10NA | |
| NC | G18-3A10NB | |||
| NO+NC | G18-3A10NC | |||
|
PNP |
NO | G18-3A10PA | ||
|
90～ 250 VAC |
NC | G18-3A10PB | ||
| NO+NC | G18-3A10PC | |||
|
SCR ControHable silicon |
NO | G18-2A10LA | ||
| NC | G18-2A10LB | |||
| Relay output | ||||
|
R e t r o r e f l i c t i v e |
Detection distance | 2m | ||
|
10- 10 VDC |
NPN |
NO | G18-3B2NA | |
| NC | G18-3B2NB | |||
| NO+NC | G18-3B2NC | |||
|
PNP |
NO | G18-3B2PA | ||
|
90～ 250 VAC |
NC | G18-3B2PB | ||
| NO+NC | G18-3B2PC | |||
|
SCR ControHable silicon |
NO | G18-2B2LA | ||
| NC | G18-2B2LB | |||
| Relay output | ||||
|

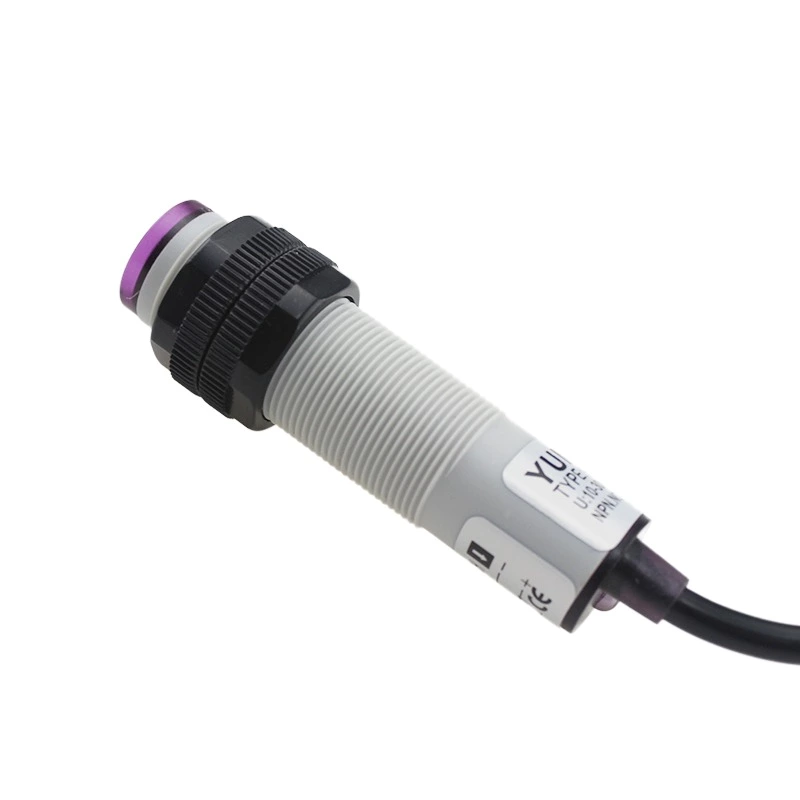

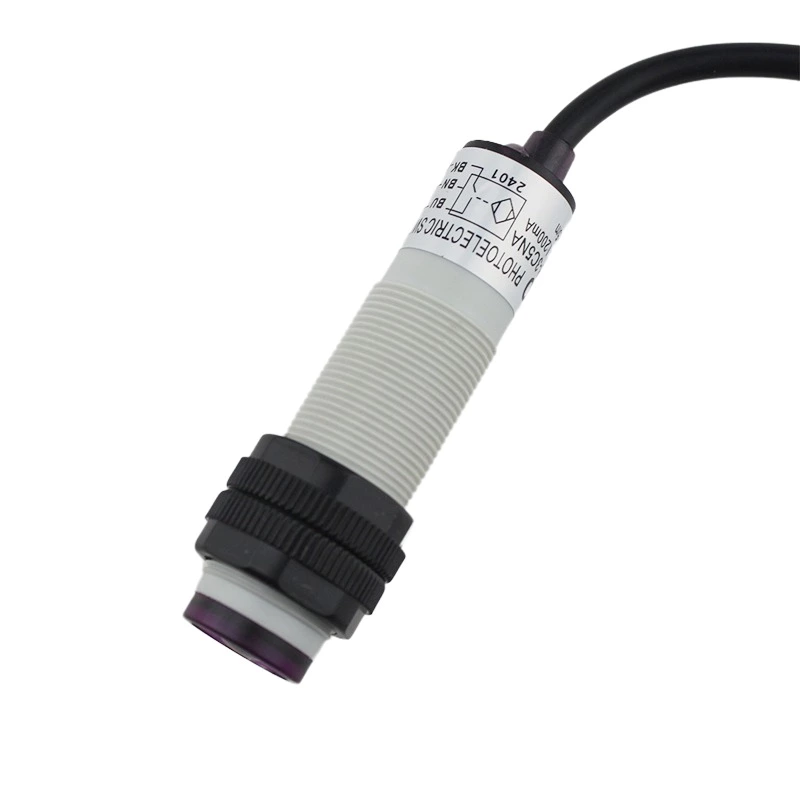

T r o u g h b e a m |
Detection distance | 5m | ||
|
10- 10 VDC |
NPN |

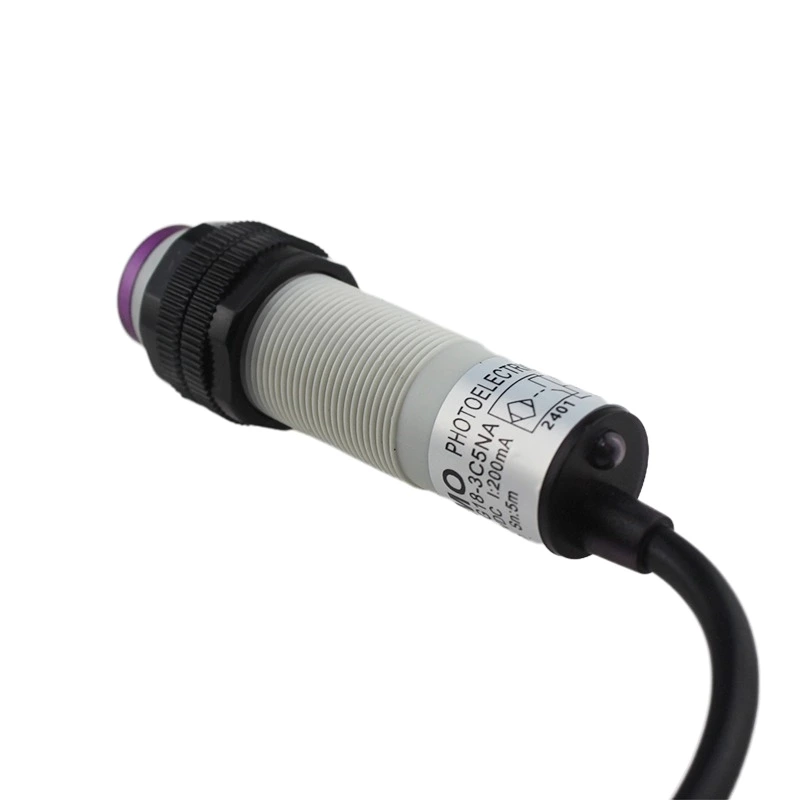

NO | G18-3C5NA | |
| NC | G18-3C5NB | |||
| NO+NC | G18-3C5NC | |||
|
PNP |
NO | G18-3C5PA | ||
|
90～ 250 VAC |
NC | G18-3C5PB | ||
| NO+NC | G18-3C5PC | |||
|
SCR ControHable silicon |
NO | G18-2C5LA | ||
| NC | G18-2C5LB | |||
| Relay output | ||||
| DC/SCR／Control output | DC:200mA、AC：100mA | |||
| DC/AC Consumption current | DC<15mA、AC<10mA | |||
| DC/AC Response time | Dc<2ms、AC<2mA | |||
| Directional angle | 3。-10。 | |||
| Detected object | transparent or opaque body | |||
| WoJrking envlrOnment temDerature | 25℃～+55℃ | |||
| Intensity ofillumination ofworking environment | 10000LX Sunlight underlOOOOLX 1000LX incandescentlamp under 1000LX | |||
| Shell materia | Plastic | |||
| Protection grade | IP54 | |||
