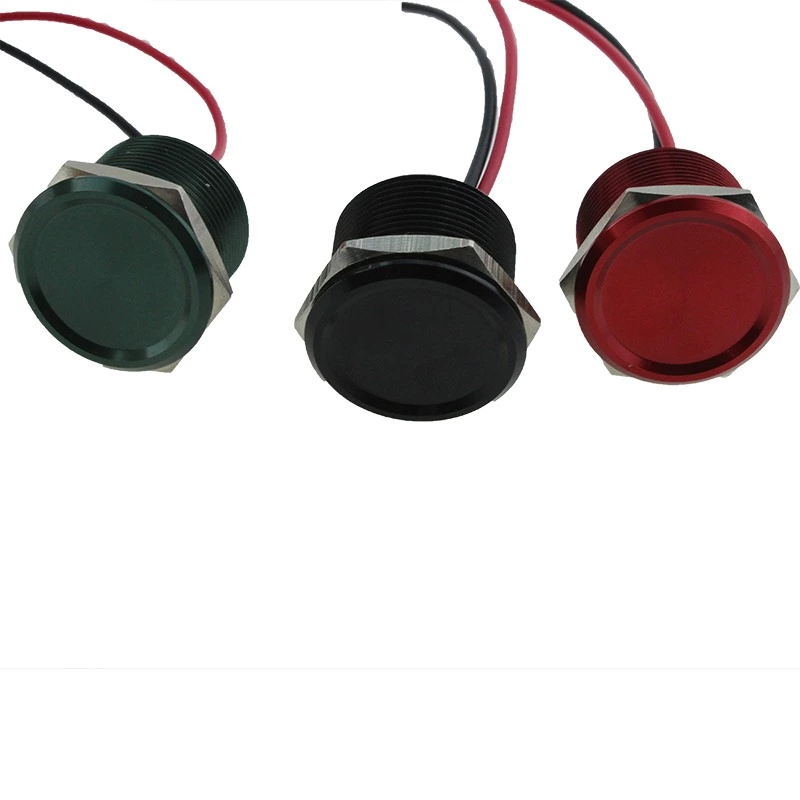

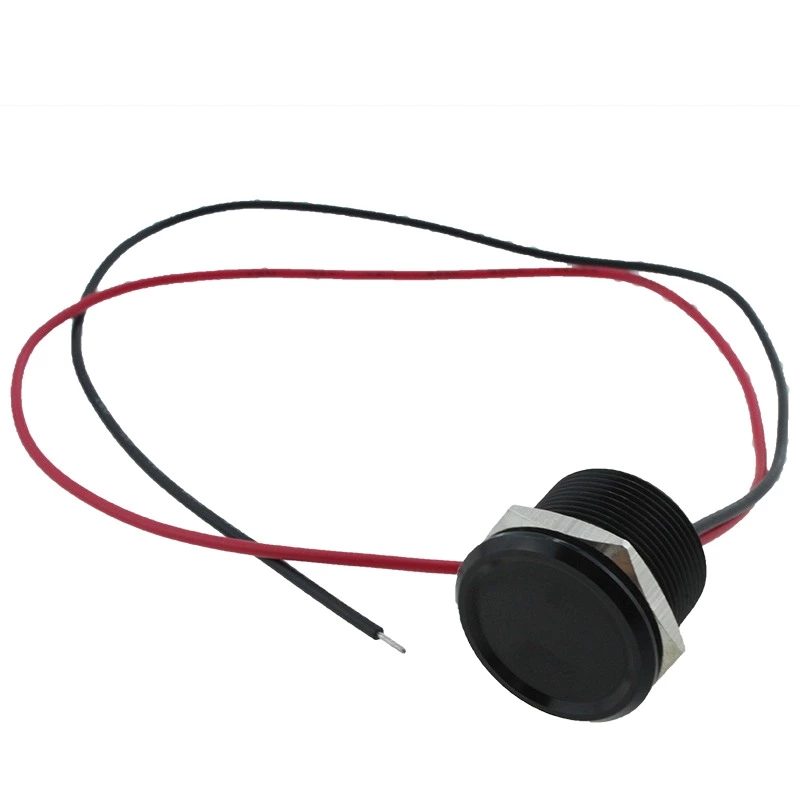

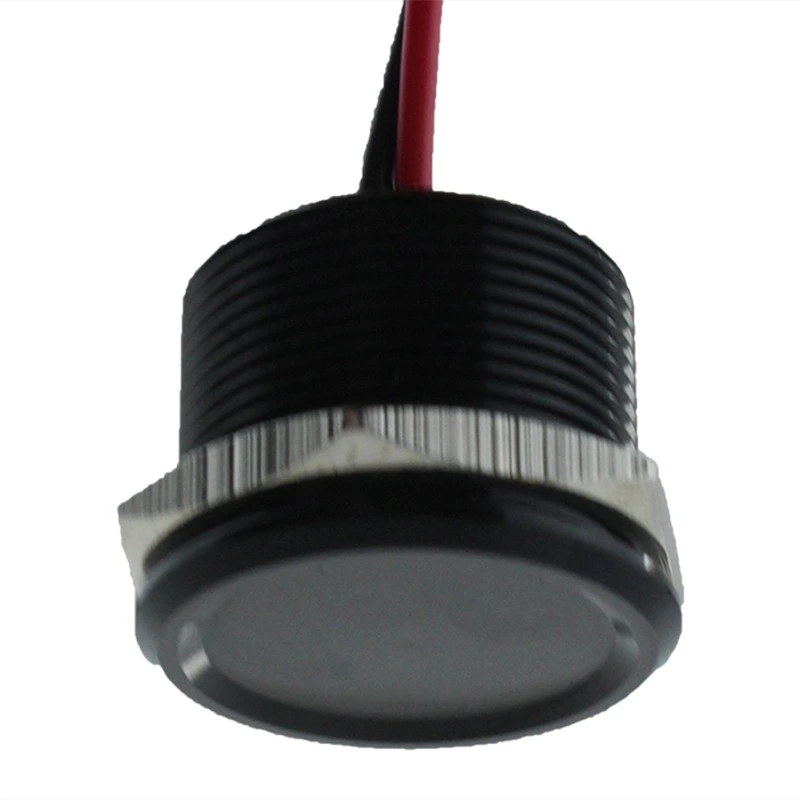

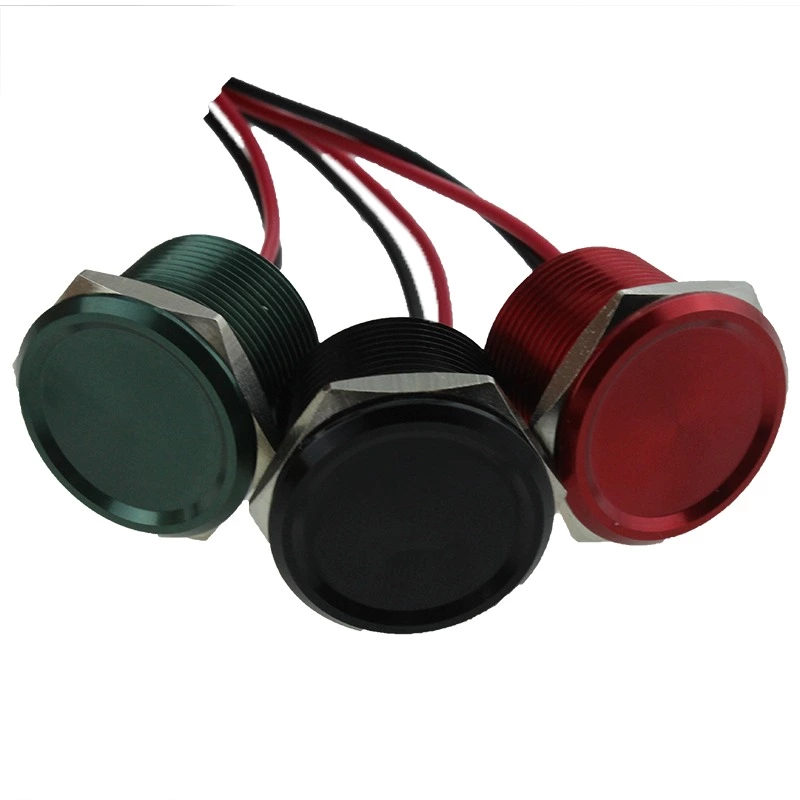

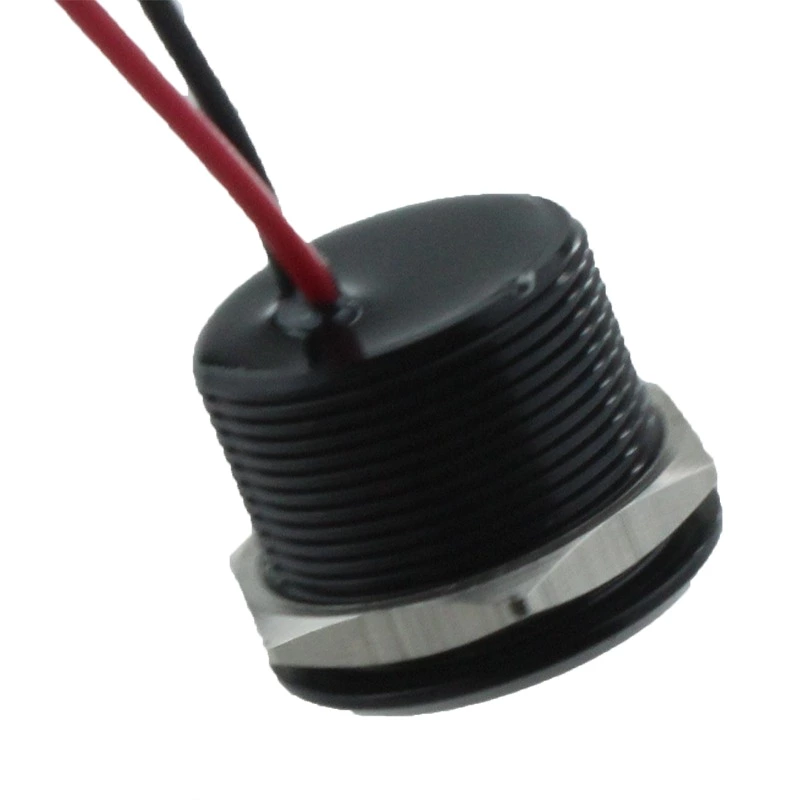

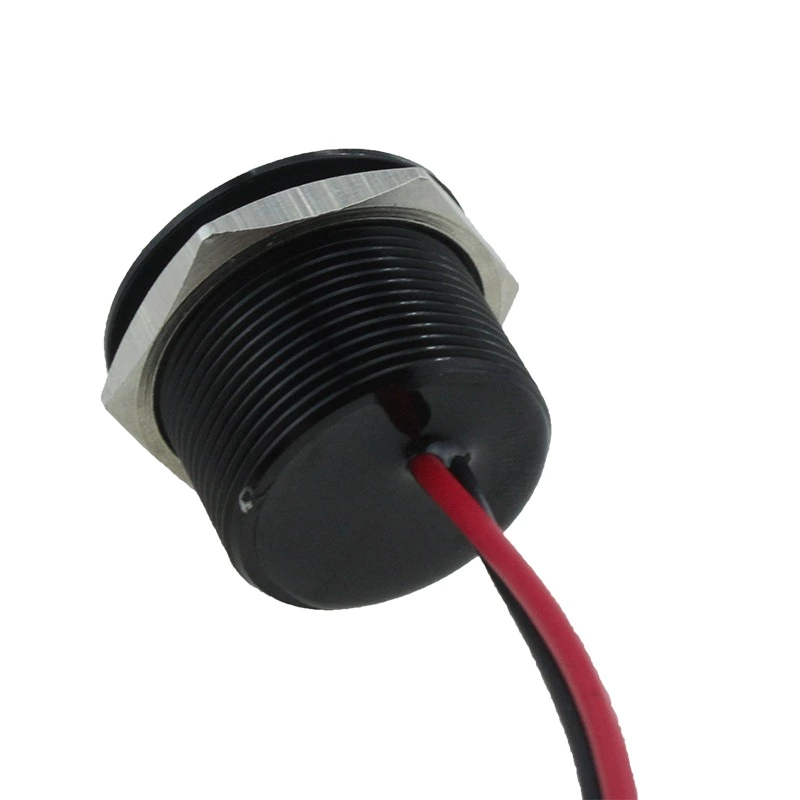

No Lamp Piezo Switch Aluminum Piezo Switch
Specification：
Ingress protection:IP68
Working in poor condition :-20 degrees C, ~ +55 degrees
Expected working life more than 40,000 hours
Meet ROSH requirements
Explosion-proof
Heavy loading, non-magnetic, corrosion resisting, can be
used indoor and outdoor
| Working temperature | T:-40C-70°C |
| Storage temperature | T:-40C-70°C |
| Working humidity | 10%- 99% |
| Input voltage | 3-24V/DC |
| The input current | ≤100mA |
| Contact resistance | < 50mΩ |
| Pulse time | < 50MS |
| Working pressure | 3-8N |
| Protection Grade | IP68IEC529 |
| Operating life | >200000cycles |
| Material | Aluminum |
| The type of connection | 0.22Square wire(Line length can be customized) |
