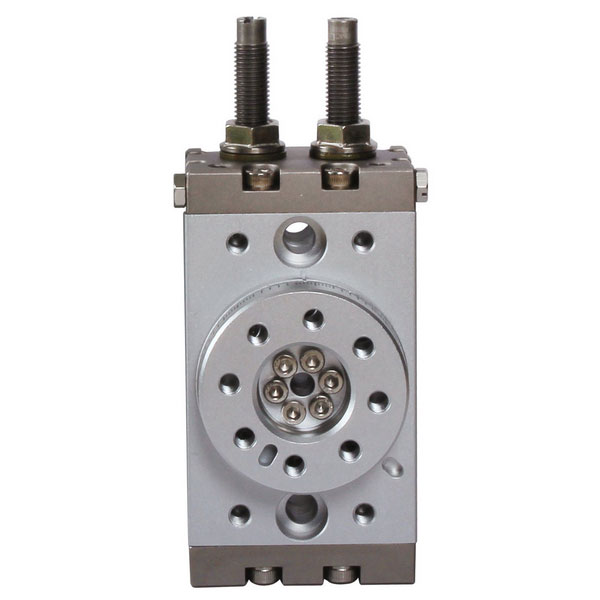

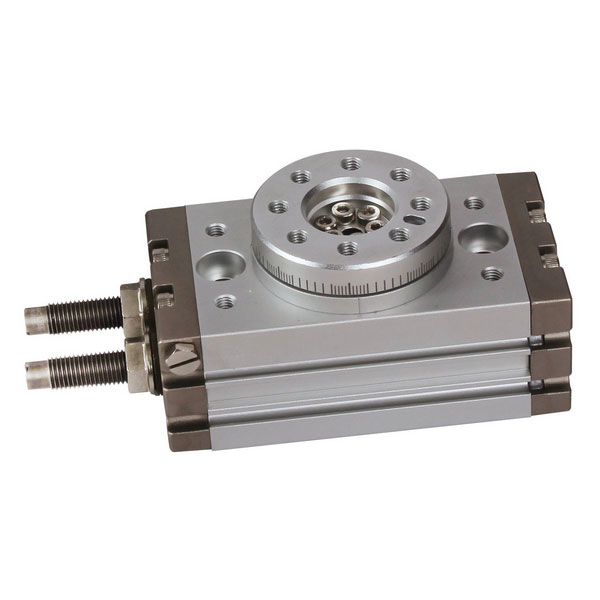

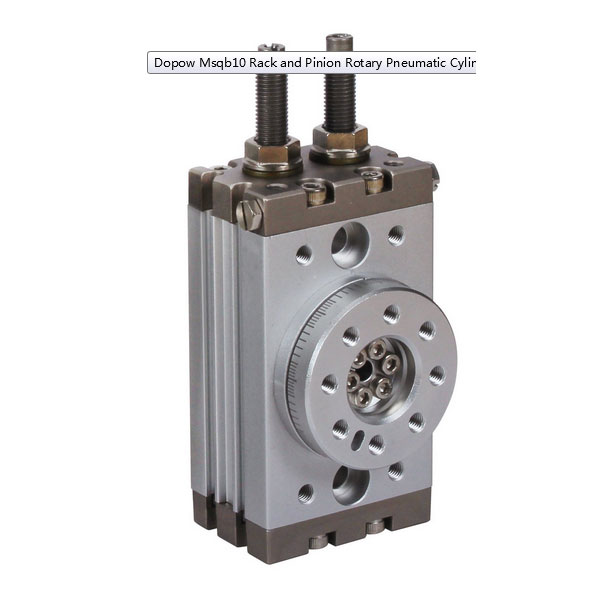

Overview for MSQ Rotary Tables
MSQ Rotary Air Cylinder is a gear-rack type cylinder, divided into 7 optional bores: 10mm, 20mm, 30mm, 50mm, 70mm, 100mm and 200mm. Angle adjustment ranges is from 0° to 190°. Buffer is divided into rubber buffer and oil pressure shock absorber. The conventional model is attached to the magnet, and MSQ Rotary Tables provide a variety of installation forms.
Product Feature for MSQ Rotary Tables
* High-precision use of high-precision ball bearings, so the vertical and horizontal position accuracy increased to ± 0.01mm.
* Rotary Table type, easy to install the workpiece.
* Roller bearing design, load than the CRQ series 3 to 4 times.
* Swing of Rotary Table is smooth and accurate.
* Hollow shafts of Rotary Table can be used to introduce wires or trachea.
* Standard with angle adjustment device, adjust the angle range. (0 ~ 190 °)
* Built-in magnetic ring type, can be installed magnetic switch.
