Solid state relay product applications and technical performance characteristics
Application: Used in computer peripheral interface equipment, electric furnace heating, thermostat equipment, CNC machinery, industrial automation equipment, signal lights, stage lighting lighting control equipment instrumentation,Medical equipment, photocopiers, plastic machinery, air conditioners, washing machines, in addition to chemical, coal and other explosion-proof, moisture, anti-corrosion occasions have a large number of use, as a substitute for electromagnetic relay The ideal product for AC contactor

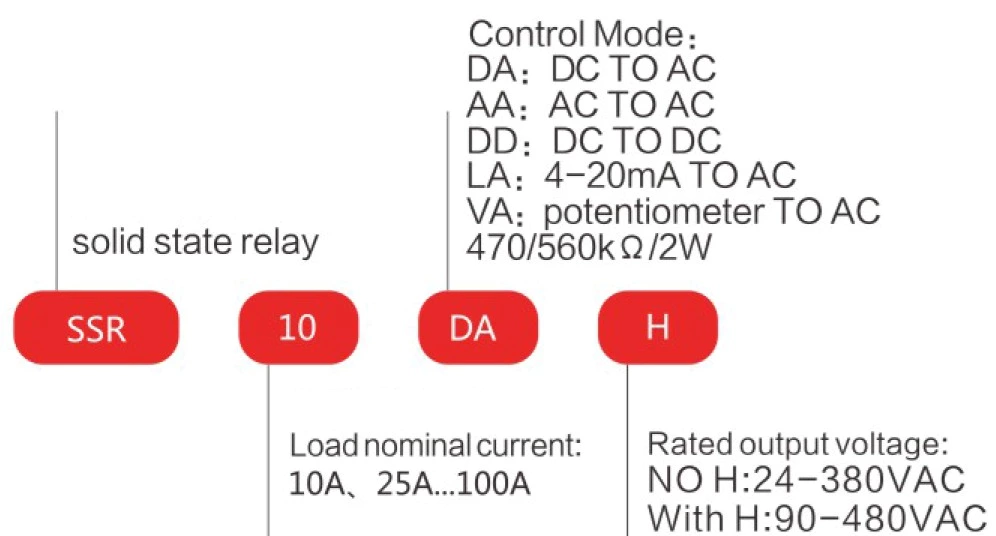

solid state relay model classification and explanation
| Model | SSR-100DA |
| Load Current | 100A |
| Load Voltage | 24-380VAC |
| Control Voltage | 3-32VDC |
| Control Current | DC5-15mA (built in constant current circuit) |
| On Voltage | ≤1.5V |
| Off Leakage Current | ≤2mA |
| On-off Time | ≤10mS |
| Dielectric Strength | Input - output - floor ≥2500VAC |
| Insulation Resistance | 1000M/500VDC |
| Ambient Temperature | -30℃~+75℃ |
| Mounting Methods | Bolt fixing |
| The work instructions | LED |

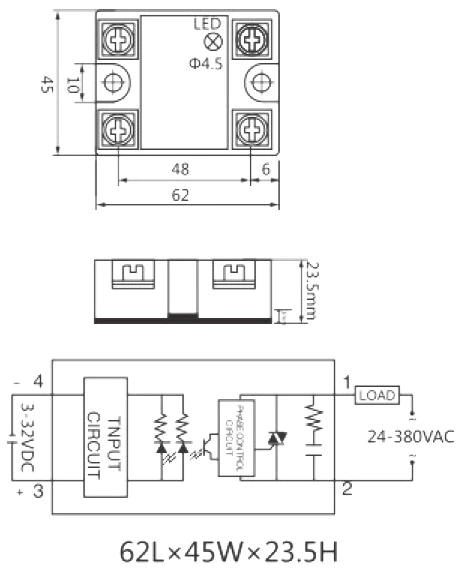

Shape and mounting dimensions (mm)

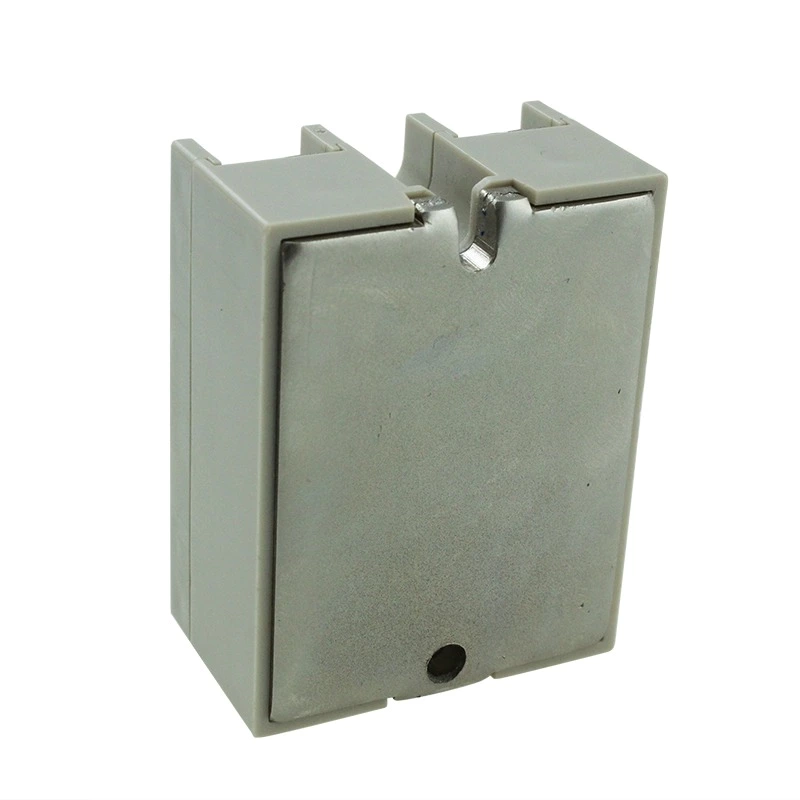

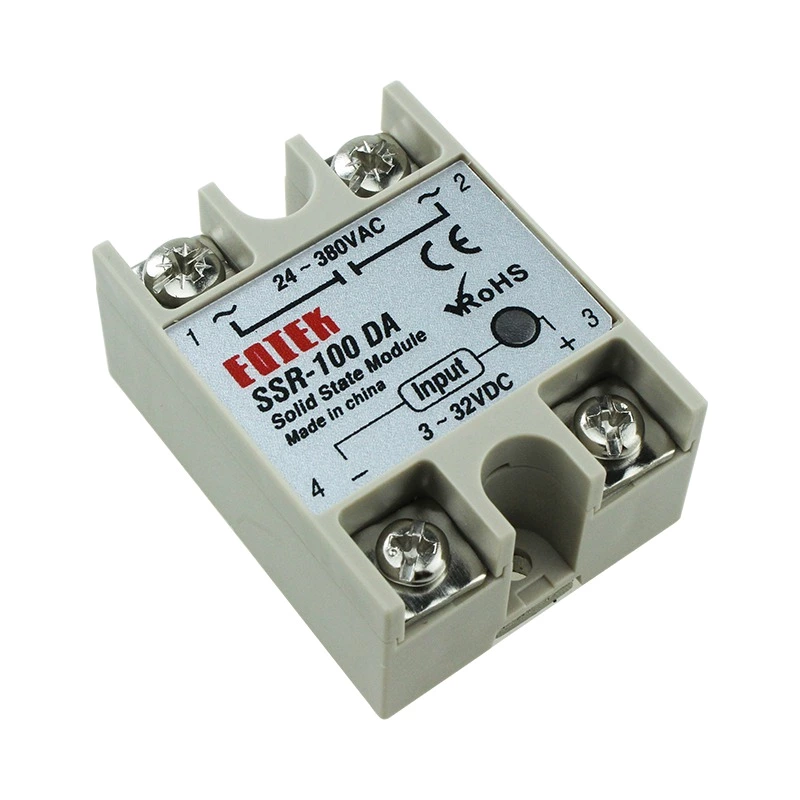

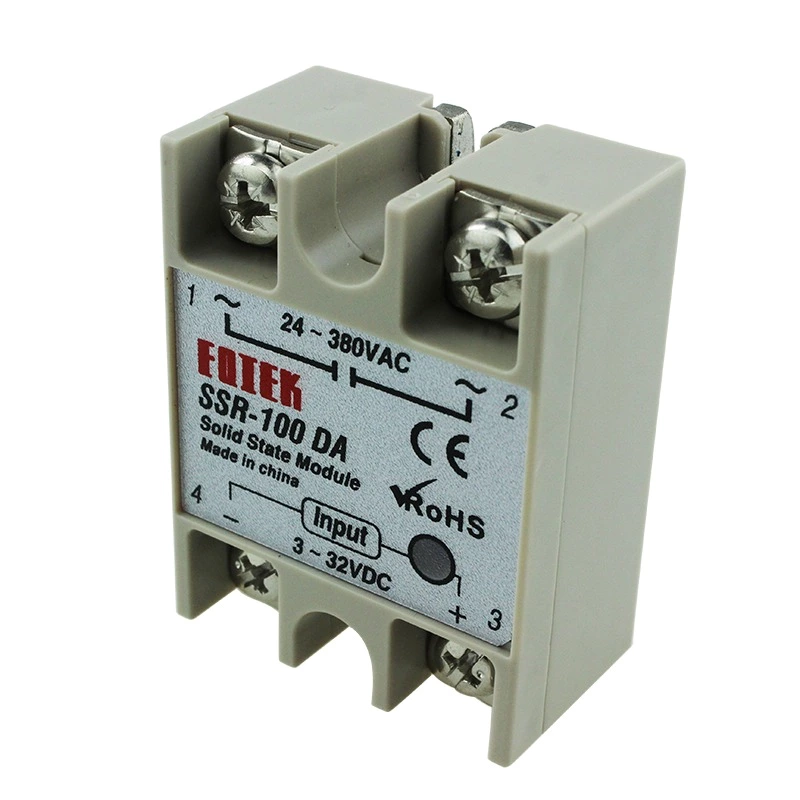

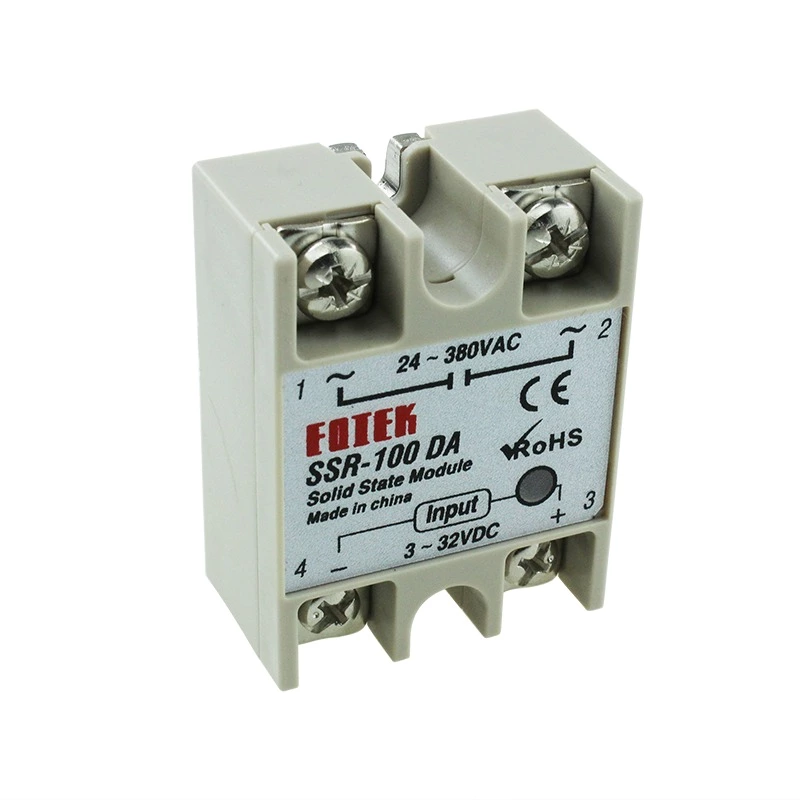

Product Pictures
