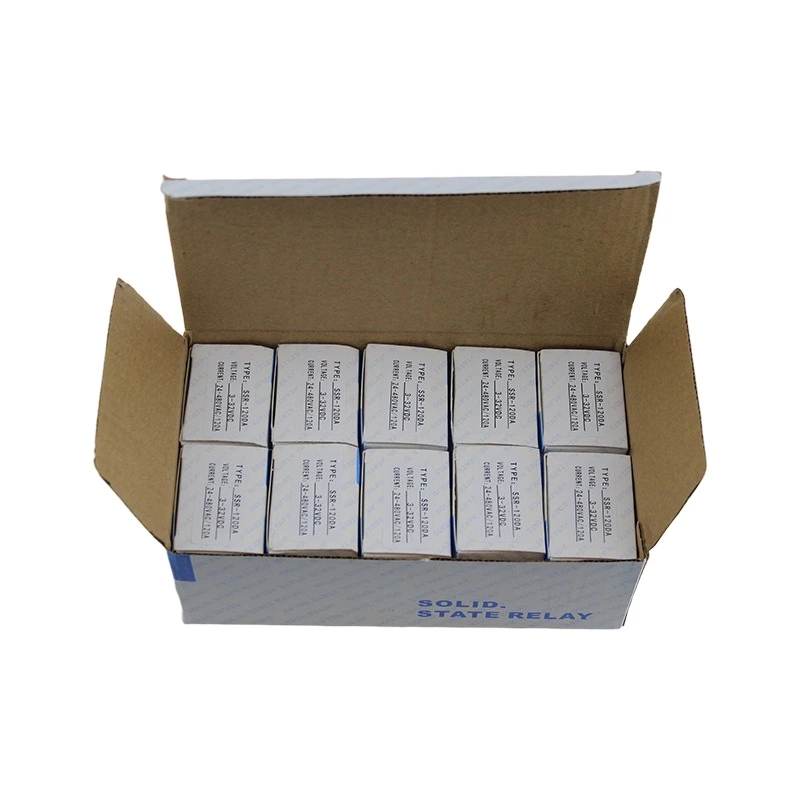

SSR-120DA solid state relay
Features:
*Single phase solid state relay, similar to Omron housing
*Input: 3-32Vdc
*Load: 10-120 amps 480Vac, with maximum load at 24 amps using proper heatsink
*Built-in RC Snubber circuit
*CE comply
*Size 45mm*57mm*31mm
*Mounting, panel mount, DIN rail mount availble with DIN clamps attached to it
*LED status indication. 12 months warranty,
*Private label service avaialble, we have in house laser printing machine ,we can print your logo and item number on the housing.
Technical Parameters:
| SSR-120DA | |
| Load Current | 120A |
| Load Voltage | 24-480VAC |
| Control Voltage | 3-32VDC |
| Control Current | DC3-25mA |
| On voltage | ≤1.5V |
| Off Leakage Current | ≤2mA |
| On-off Time | ≤10ms |
| Dielectric Strength | 2500VAC |
| Insulation Resistance | 1000M/500VDC |
| Ambient Temperature | -30~+75 |
| Mounting Methods | Bolting |
| The work instructions | LED |
| Weight | 100g |
